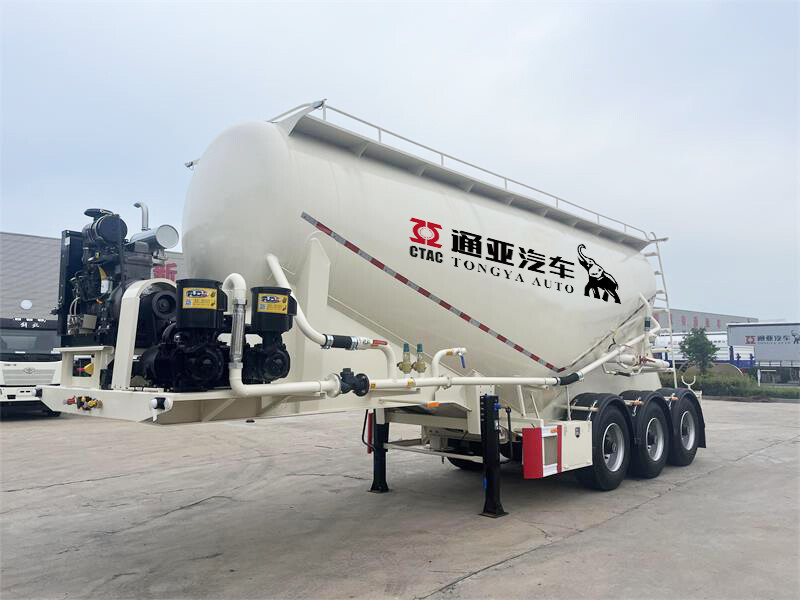

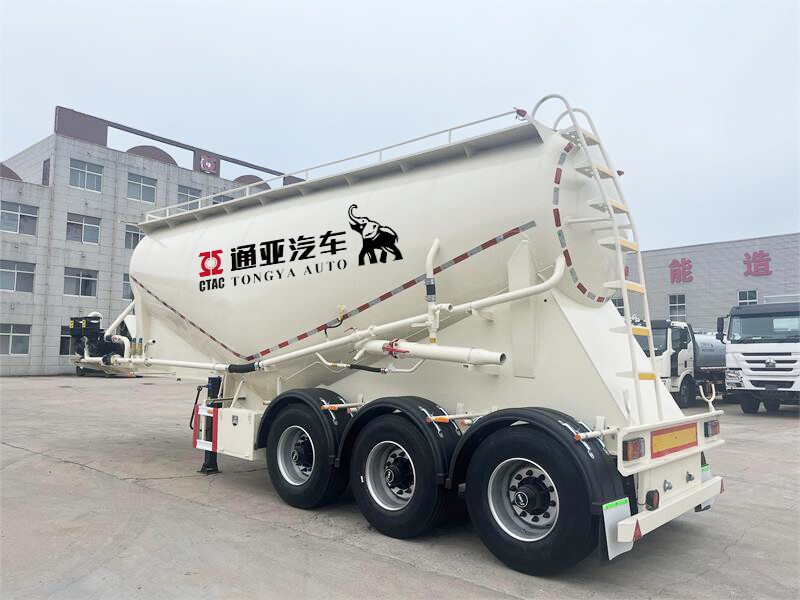

30T Cement Tanker Trailer

1, Customization is acceptable for tanker capacity and style
2, China leading manufacturer since 1982, top 1 sales in China market since 2012
3, Engine and compressor is available, PTO via truck tractor optional
4, Fast discharging, <0.3% retention volume, 18 days delivery time
PRODUCT DESCRIPTION

Weight:Tare Weight8T
Loading capacity30 T
Total weight38 T
Dimensions:Dimension8500×2500*3700mm (The final dimensions depend on the final design drawings)
Tanker capacity30m3 (30000L)
Tanker body:Design/welding technologyHeavy duty and extra durability designed;welding by automatic Submerged-Arc processes.
Tanker bodyThe tanker body made of 5mm, tanker ends made of 6mm thickness steel, Q235 steel
Bottom chassisHigh strength Q345B steel
Tanker shape“V” shape
Silo1 silo
Manhole:2 pieces, (Diameter is 500mm)

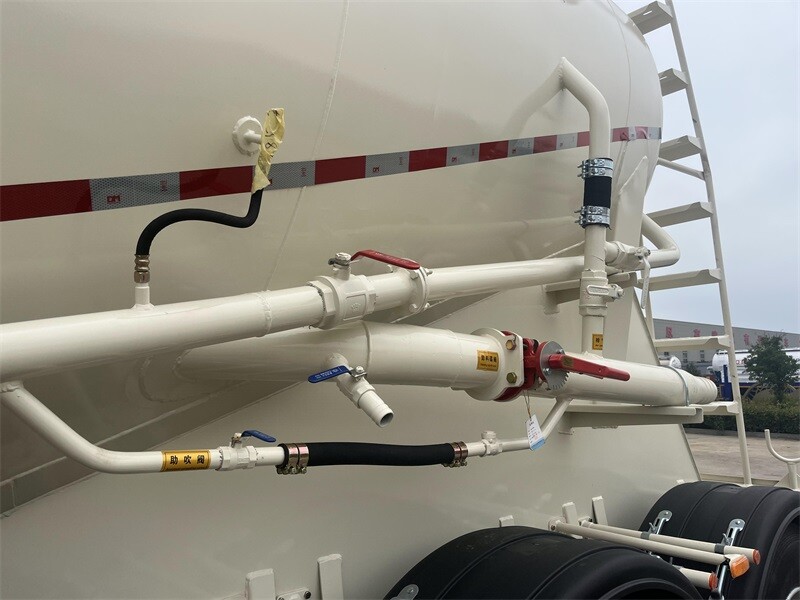

Discharge mouth4 inch Discharge mouth
Safety pressure valveStandard
Discharge hose8m with Hose carries, the length is according to customer requirement

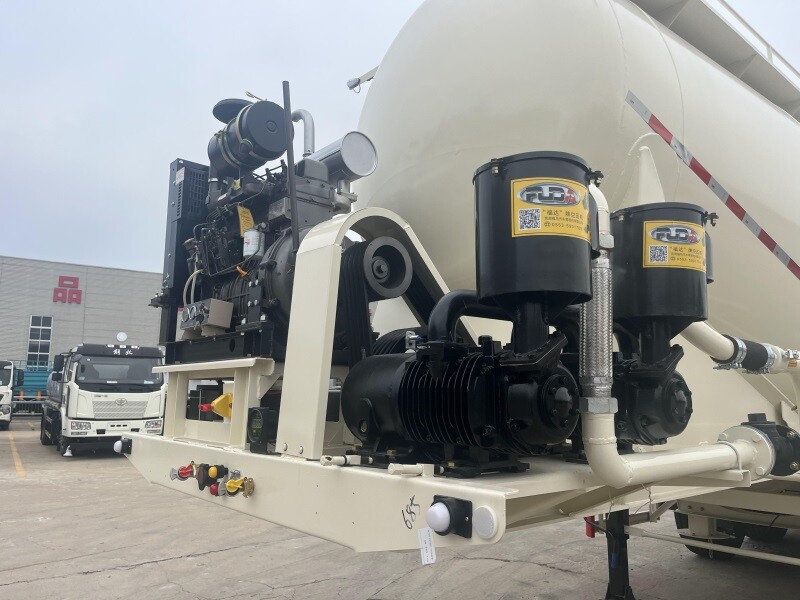

Air compressor12m3 double-cylinder air compressor, Bohai brand

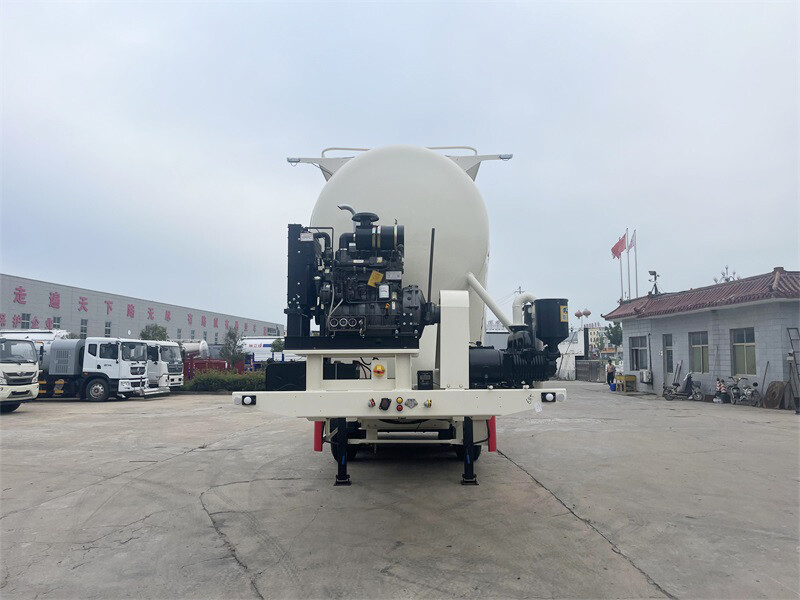

EngineDiesel Engine,Weichai 4102 engine

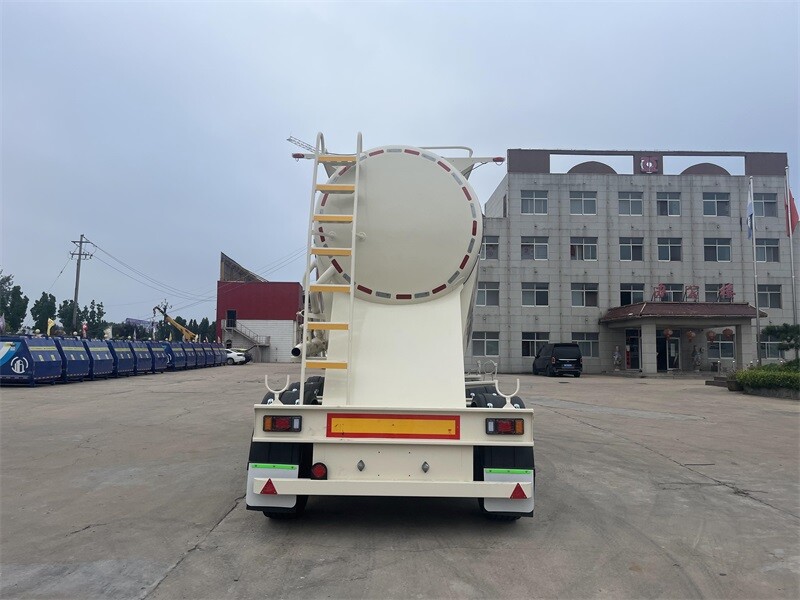

Rear ladder and handrail  Standard
Retention volume<0.3%

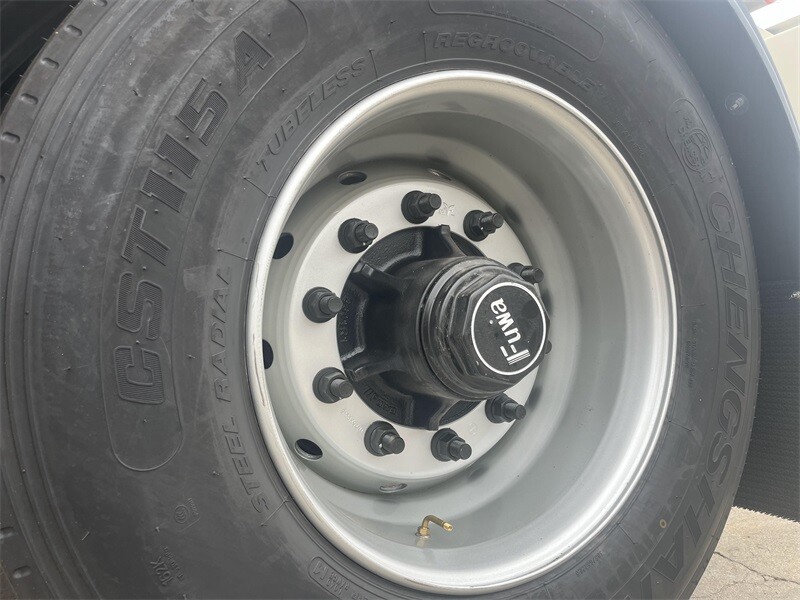

OEM parts:      Axle3* 13 tons capacity, FUWA brand (Chinese best brand)
King Pin2.00 /3.5 inch, bolting king pin, JOST brand
SuspensionHeavy duty suspension with equalizers, American design (high-strength type)
Steel SpringSix sets of 10pcs leaf spring, 16mm thickness, 90mm width

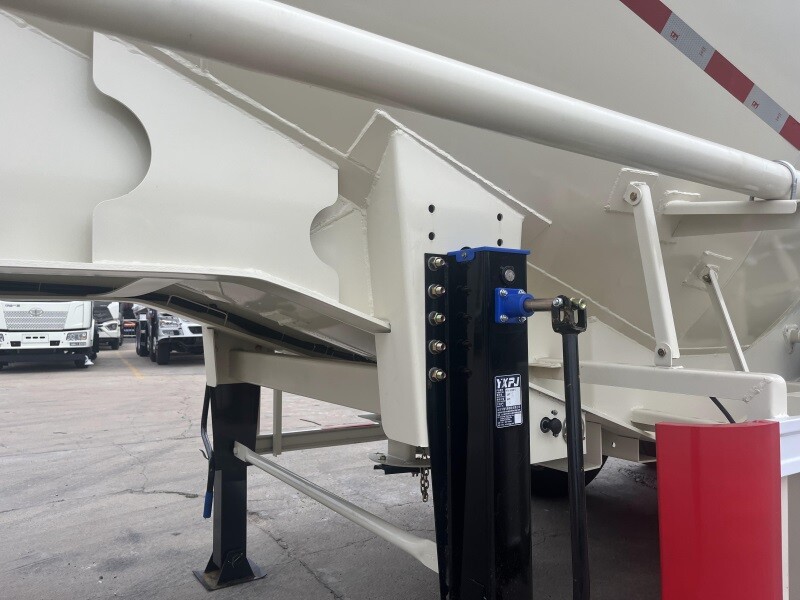

Landing legsJOST brand, manual operation landing legs with sand shoe

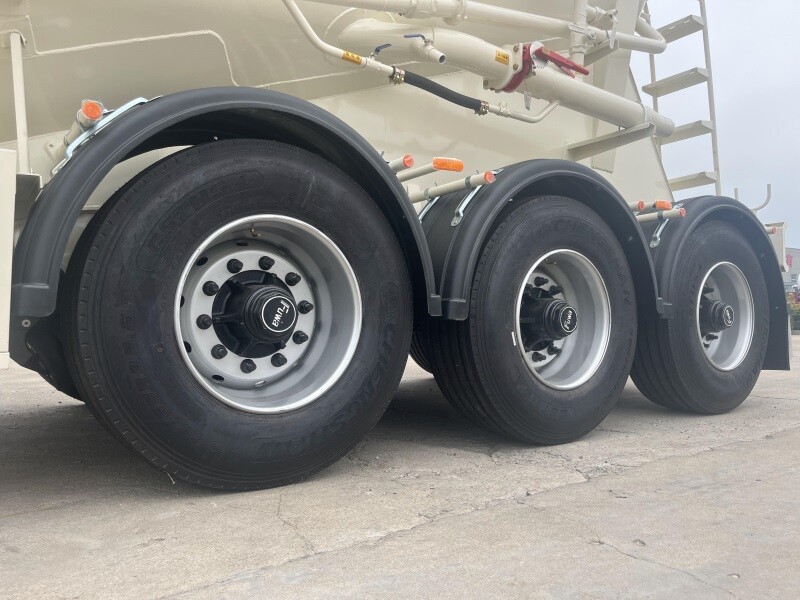

Tire specs12R22.5, or 315/80R22.5 Triangle brand
Rim9.0-22.5
Number of wheel13 pieces(including one spare wheel)

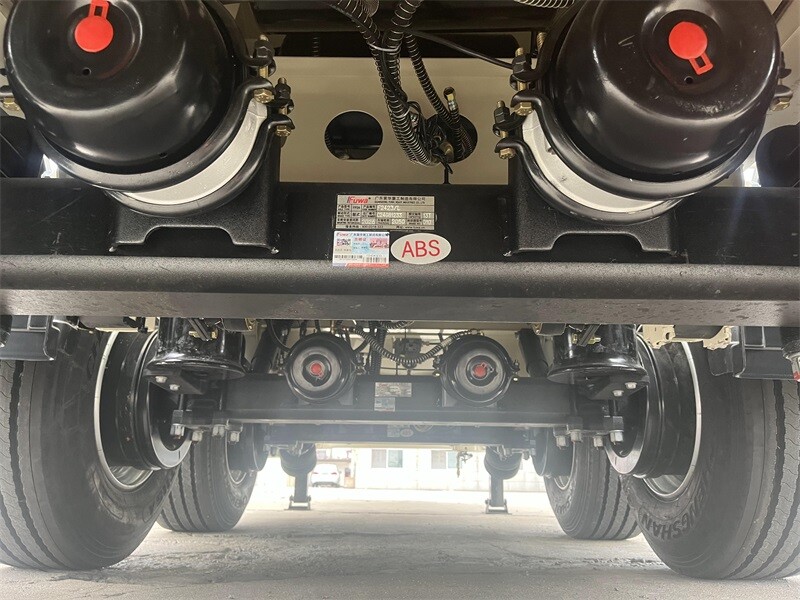

  Brake systemWABCO relay valve; Four double and two single brake chamber; One unit of reliable local brand 45L air tank; Two units of reliable local brand standard coppery air-connector.
ABS systemWithout(Can be choose freely,450 USD/set)
Electrical:One unit of 24V 7-pin ISO 1185 socket; LED light (standard rear light, turn light, rear reflector, side light, side reflector etc.)
   Miscellaneous:Paintingcolor advised by client
MarkingStandard
Side GuardStandard
spare wheel carrierTwo set of heavy duty spare wheel carriers, including a riser.
Tools boxOne piece (1. 0*0. 5*0. 5m)(equipped with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar)
Note: All the details not mentioned will design as the final confirmation with the customer





Cement trailer is the best-seller product in our company, we win top 1 sales for our cement trailer in China market since 2012


As the manufacturer, customization is acceptable for style, tanker capacity capacity. we can design the cement trailer with engine and compressor, and if you want make the more lighter for the truck tractor plus tanker trailer, PTO via truck tractor is also available.




Our engineers will design the tanker body and under chassis for our cement trailer depend on the load capacity that provided by the end user customer, we choose Q345B high tensile steel in an thicken thickness,  with automatic Submerged-Arc processes.





We Use 100% famous brand spare parts for our products, like JOST, WABCO, BPW, FUWA, Triangle for our cement trailer!

12 months warranty period is provided for our cement trailer , We accept 100% inspection, welcome to our factory at any time.


As the China leading cement trailer manufacturer since 1982, with more than 42 years history of manufacturing, more than 18years experience to export to more than 60 countries all over the world, we have improve every details of our cement trailer

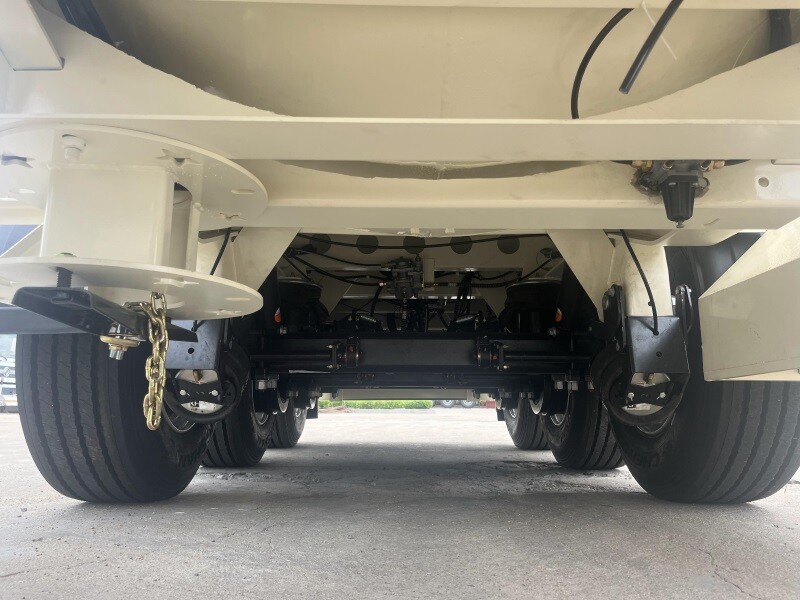

Like the following pictures shows:




FAQ

Q1、Why choose Tongya Automobile Co.,Ltd ?

1,China leading manufacturer of semi trailer and tanker trailer since 1982,China famous brand, Annual output of 10,000 units different kinds of semi trailers

2,More than 19 years export experience since 2005, Fully understand different local specs and standard from more than 50 different countries

3, Customized product is available, with modern and advance production line with all kinds of production equipment and production process

4, Professional technical team with 24 fully experienced engineers


Q2、What can you buy from Tongya Automobile Co.,Ltd?
Bulk Cement Tanker Semi trailer , Fuel Tanker Semi Trailer, Flatbed Semi Trailer, Skeleton Semi Trailer, Lowbed Semi Trailer, Dump Trailer,dolly trailer ,Fence Semi-trailer,Side Wall Semi-trailer, full trailer, Flour tanker trailer, ISO bulk tanker container etc.



Q3、Can I visit your factory?
Of course,welcome to visit our factory.we are located in Liangshan, Shandong Province, a face-to-face conversation can serve you better.



Q4、How about your delivery time?
10-30 days after receive the deposit, depend on the order quantity.



Q5、What payment terms do you use?
 T/T and L/C payment are acceptable.



Q6、Which incoterms 2010 terms can we work?

Normally we accept FOB, CFR, CIF.



Q7、Is it available to print our own brand on the vehicle?
Yes, we accept to do OEM for well known distributors and dealers.



Q8、What information should I let you know if I want to get a quotation?
First, please let us know which kind of trailers you want
Second, Please let us know what kind of cargo that you will load with our trailers? Loading capacity? road condition?
Third, what trailer size is OK for you, and do you want customized product
Four, your truck specs, like 2.0 or 3.5 inch fifth wheel ? fifth wheel height? 6*4 or 4*2 truck will use ?
Five, order quantity, destination port
The more information you will provide, the more accurate and competitive price we can offer.
