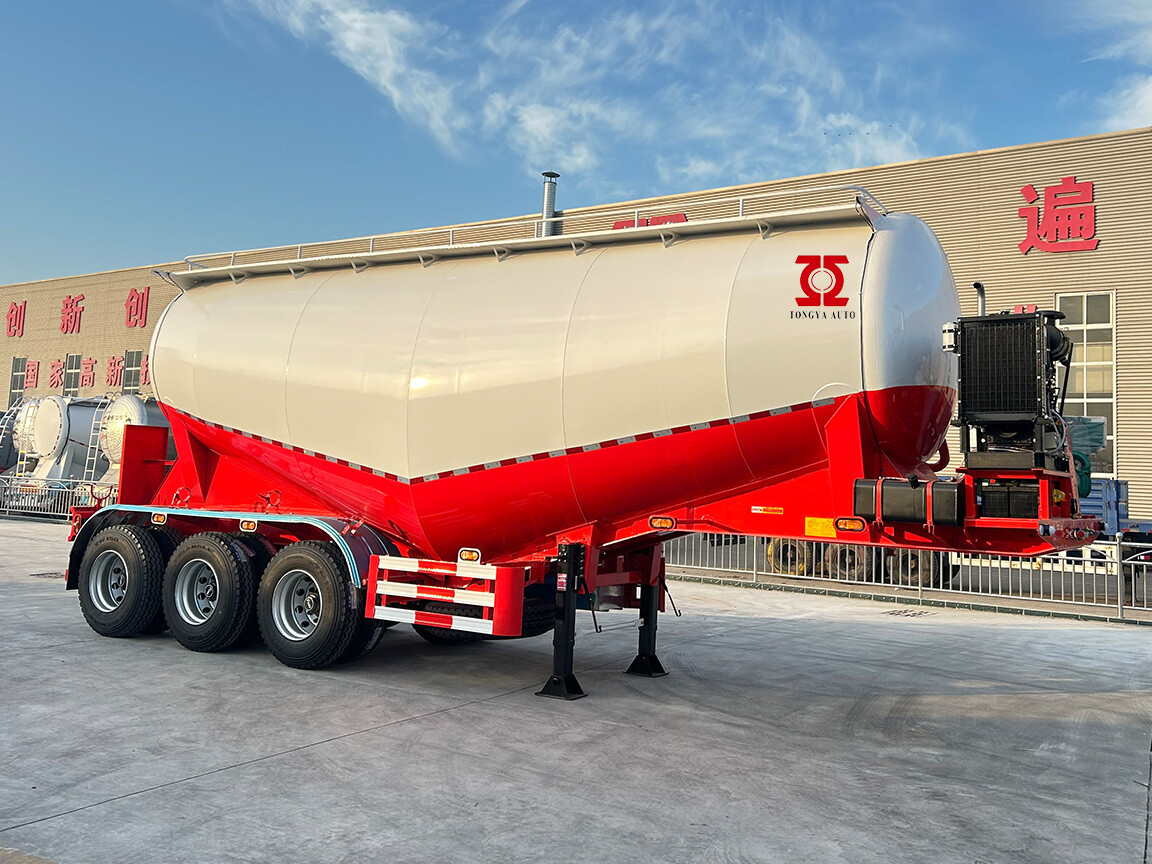

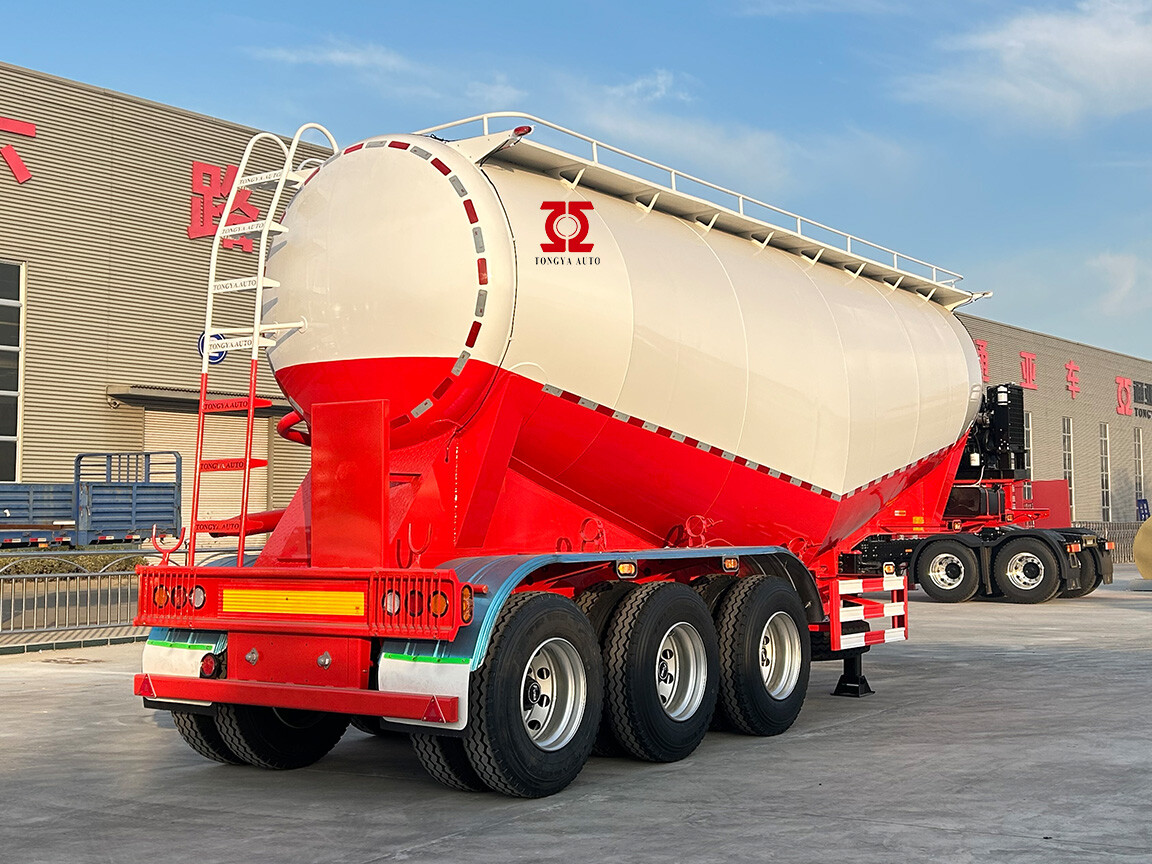

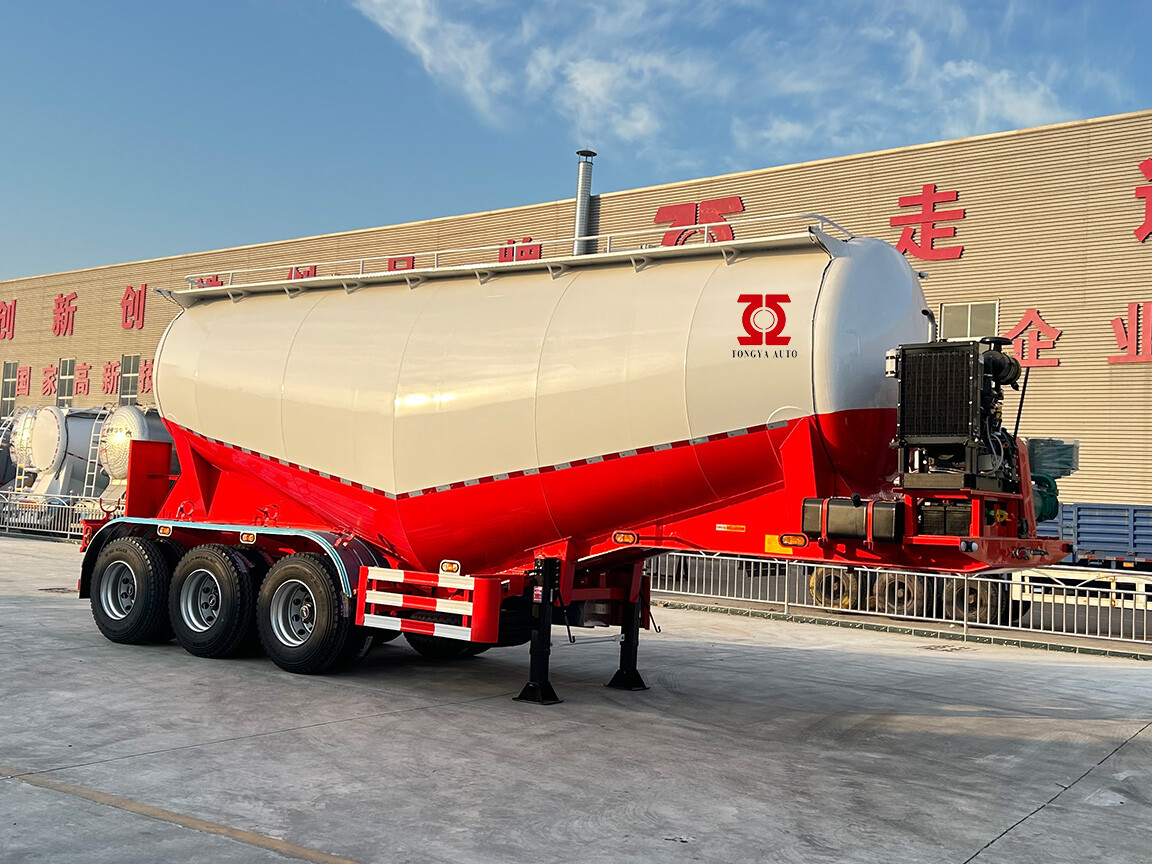

40T Bulk Cenemnt Tanker Semi Trailer with Diesel

As the manufacturer, customization is acceptable for style, tanker capacity capacity. we can design the cement trailer with engine and compressor, and if you want make the more lighter for the truck tractor plus tanker trailer, PTO via truck tractor is also available.
PRODUCT DESCRIPTION

Specification


Weight:

Tare Weight

10T

Loading capacity

40 T

Total weight

50 T


Dimensions:

Dimension

8500×2500*3700mm (The final dimensions depend on the final design drawings)

Tanker capacity

40m3 (30000L)








Tanker body:

Design/welding technology

Heavy duty and extra durability designed;

welding by automatic Submerged-Arc processes.

Tanker body

The tanker body made of 5mm, tanker ends made of 6mm thickness steel, Q235 steel

Bottom chassis

High strength Q345B steel

Tanker shape

“V” shape

Silo

1 silo

Manhole:

2 pieces, (Diameter is 500mm)

Discharge mouth

4 inch Discharge mouth

Safety pressure valve

Standard

Discharge hose

8m with Hose carries, the length is according to customer requirement

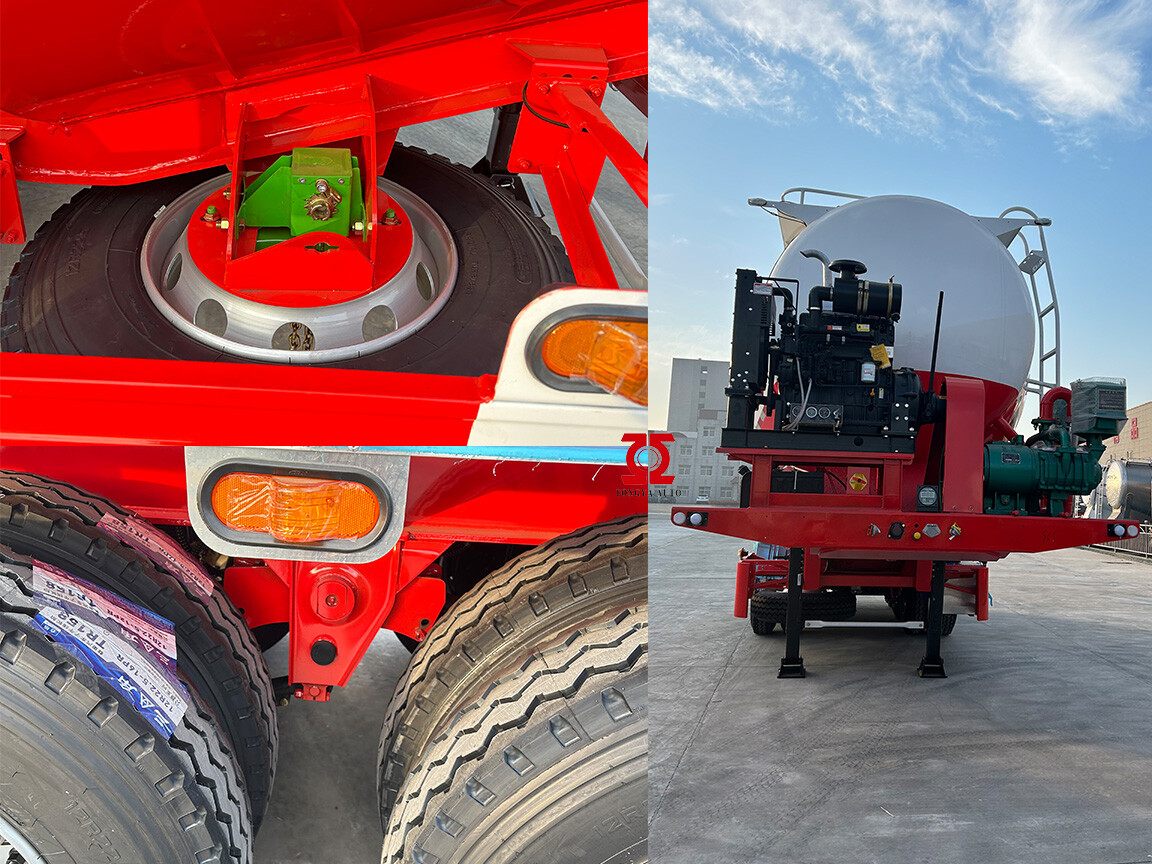

Air compressor

12m3 double-cylinder air compressor, Bohai brand

Engine

Diesel Engine,Weichai 4102 engine

Rear ladder and handrail

Standard

Retention volume

<0.3%










OEM parts:











Axle

3* 13 tons capacity, FUWA brand (Chinese best brand)

King Pin

2.00 /3.5 inch, bolting king pin, JOST brand

Suspension

Heavy duty suspension with equalizers, American design (high-strength type)

Steel Spring

Six sets of 10pcs leaf spring, 16mm thickness, 90mm width

Landing legs

JOST brand, manual operation landing legs with sand shoe

Tire specs

12R22.5, or 315/80R22.5 Triangle brand

Rim

9.0-22.5

Number of wheel

13 pieces(including one spare wheel)



Brake system

WABCO relay valve;

Four double and two single brake chamber;

One unit of reliable local brand 45L air tank;

Two units of reliable local brand standard coppery air-connector.

ABS system

Without(Can be choose freely,450 USD/set)

Electrical:

One unit of 24V 7-pin ISO 1185 socket; LED light

(standard rear light, turn light, rear reflector, side light, side reflector etc.)







Miscellaneous:

Painting

color advised by client

Marking

Standard

Side Guard

Standard

spare wheel carrier

Two set of heavy duty spare wheel carriers, including a riser.

Tools box

One piece (1. 0*0. 5*0. 5m)

(equipped with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar)

Note: All the details not mentioned will design as the final confirmation with the customer

40T Bulk Cement Tanker Semi Trailer with Diesle

1. High efficiency and energy saving: adopting advanced compression technology, it can complete the compression of a large

amount of fly ash in a short time, reduce energy consumption and improve work efficiency.

2. Safe and reliable: Equipped with multiple safety protection devices to ensure that no accidents will occur during the

compression process, ensuring the safety of the operator.

3. Strong durability: the use of high-quality materials and manufacturing process, to ensure that the compressor in the harsh

working environment can also be a long time stable operation.




FAQ

Q1、Why choose Tongya Automobile Co.,Ltd ?

1,China leading manufacturer of semi trailer and tanker trailer since 1982,China famous brand, Annual output of 10,000 units different kinds of semi trailers

2,More than 19 years export experience since 2005, Fully understand different local specs and standard from more than 50 different countries

3, Customized product is available, with modern and advance production line with all kinds of production equipment and production process

4, Professional technical team with 24 fully experienced engineers


Q2、What can you buy from Tongya Automobile Co.,Ltd?
Bulk Cement Tanker Semi trailer , Fuel Tanker Semi Trailer, Flatbed Semi Trailer, Skeleton Semi Trailer, Lowbed Semi Trailer, Dump Trailer,dolly trailer ,Fence Semi-trailer,Side Wall Semi-trailer, full trailer, Flour tanker trailer, ISO bulk tanker container etc.



Q3、Can I visit your factory?
Of course,welcome to visit our factory.we are located in Liangshan, Shandong Province, a face-to-face conversation can serve you better.



Q4、How about your delivery time?
10-30 days after receive the deposit, depend on the order quantity.



Q5、What payment terms do you use?
 T/T and L/C payment are acceptable.



Q6、Which incoterms 2010 terms can we work?

Normally we accept FOB, CFR, CIF.



Q7、Is it available to print our own brand on the vehicle?
Yes, we accept to do OEM for well known distributors and dealers.



Q8、What information should I let you know if I want to get a quotation?
First, please let us know which kind of trailers you want
Second, Please let us know what kind of cargo that you will load with our trailers? Loading capacity? road condition?
Third, what trailer size is OK for you, and do you want customized product
Four, your truck specs, like 2.0 or 3.5 inch fifth wheel ? fifth wheel height? 6*4 or 4*2 truck will use ?
Five, order quantity, destination port
The more information you will provide, the more accurate and competitive price we can offer.
