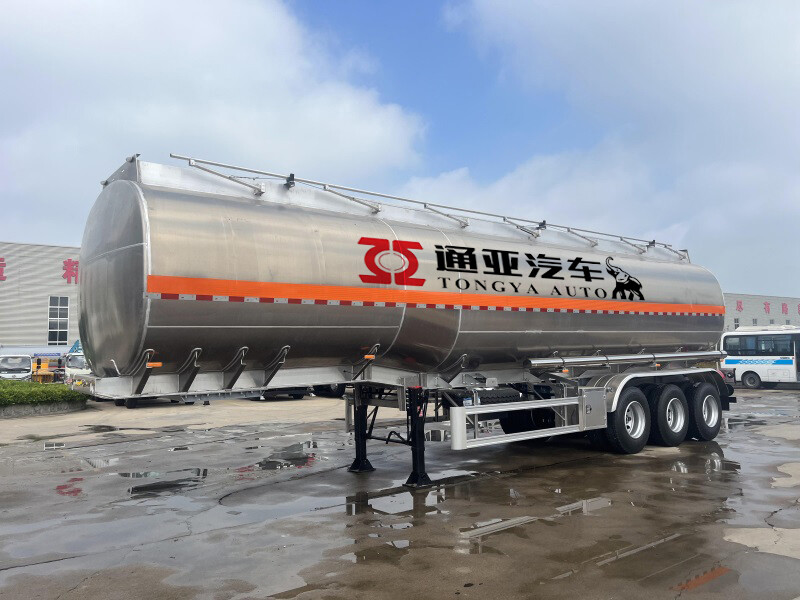

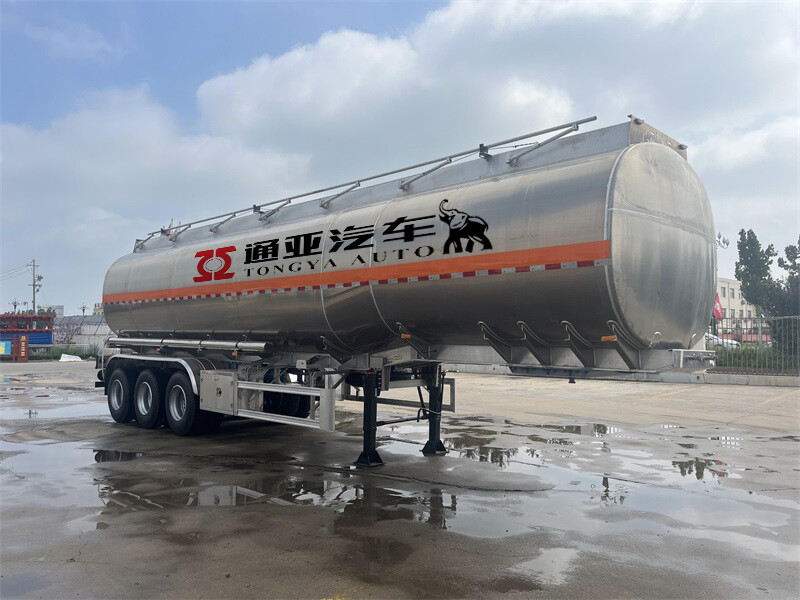

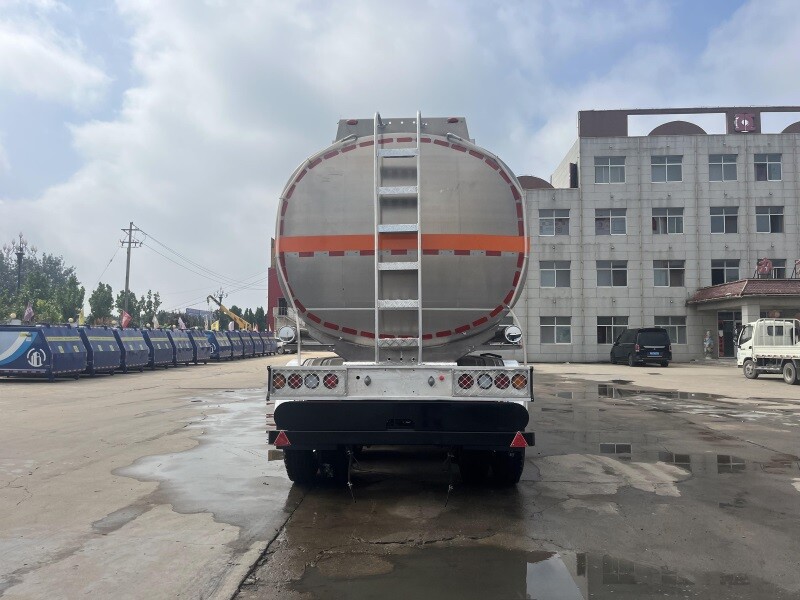

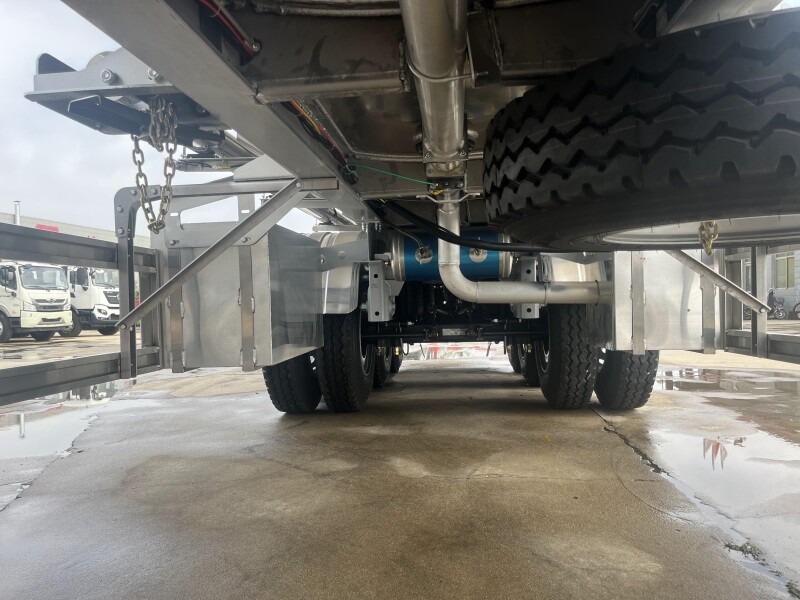

Aluminum Tanker Semi Trailer

The tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.We adopt famous brand parts for our tank trailer, it save costs & ensure long-time service.

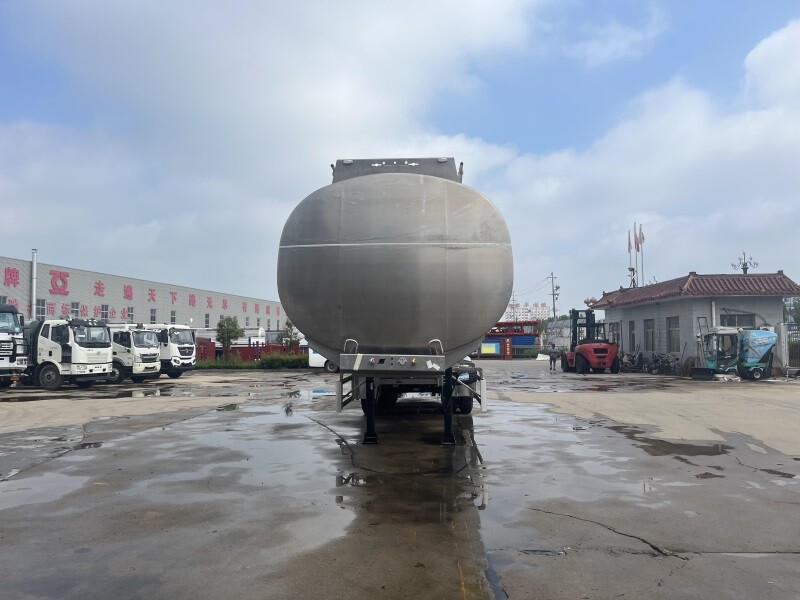

Tank section style:Perfect circle;oval ;Rectangular circle
Tank body style: Straight style; Goose-neck style;full trailer style; V-type without stringer style etc.
PRODUCT DESCRIPTION

Basic Information

Outer size 12000x2500x3600mm
Design Capacity (gross)45000L
Tare weight (±3%)7500KG
TypeTri-axle semi-trailer

Tank assembly

Compartment2-6 sets
Front/Rear end plate Material aluminium alloy / stainless steel
Front/Rear end platethickness7mm
Tank body (with insulating layer)Material aluminium alloy / stainless steel
Thickness 6mm
Wave-proof plate thickness7mm
Manhole cover Diameter 500mm
Material Aluminum Alloy
Number 2-6pcs
 Discharging valve Diameter 3 inch
Material Aluminum Alloy API valve
Number 2-6 pcs
Bottom safety valve Aluminum Alloy   4  inch
Discharging pipe Diameter 3 inch
Type Rubber hose,2pcs
Cat walk Standard

 Chassis

Axle BrandFuwa or Tongya brand
Type13t
Number3pcs

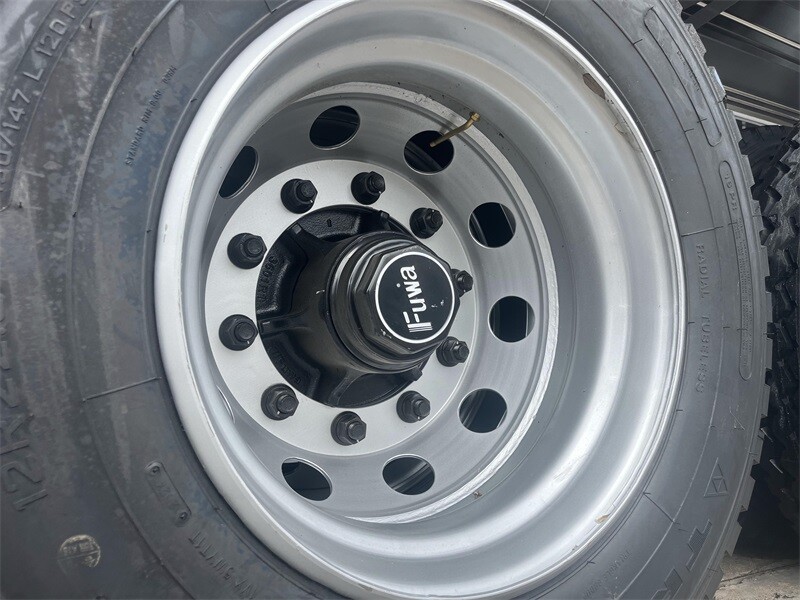

Rim Type11.5-22.5 or 9.0-22.5
Number6/12 pcs

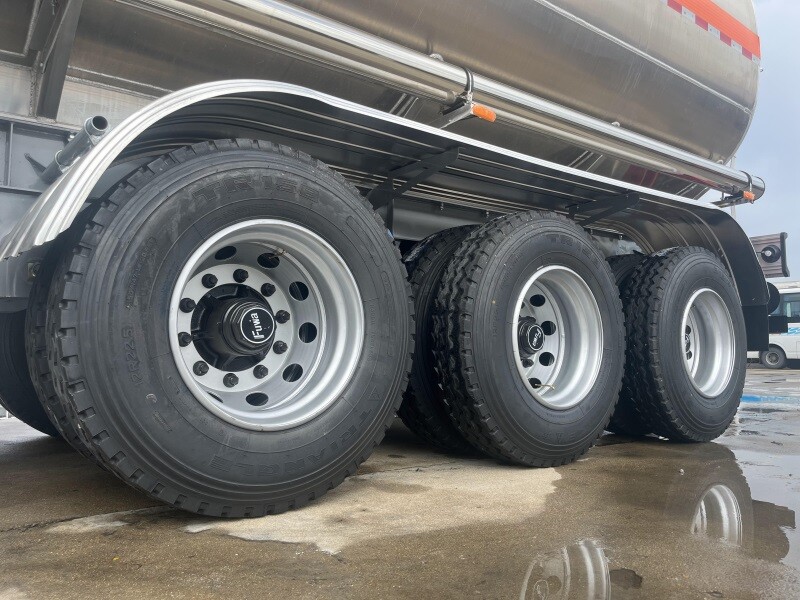

Tire BrandTriangle brand
Type 385/65R22.5 or 12R22.5
Number6/12pcs

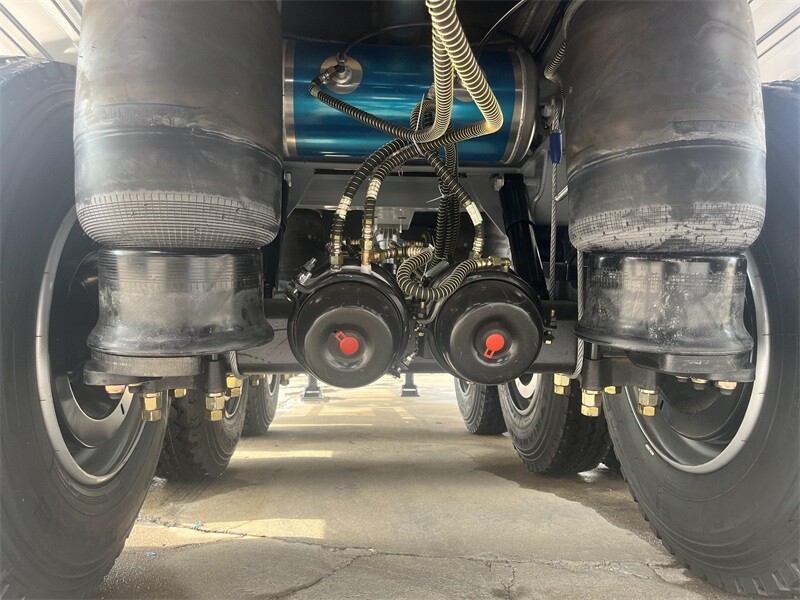

Suspension Air suspension / Mechaniacal suspension
 Spring leaf Leaf width90mm
Leaf thickness13mm
Layer/set10 Layer
King pin TypeBolts type
Diameter2  inch
Brake system Air tank45L air tanks
Brake chamberWABCO RE6 relay valve; T30/30+T30 Spring brake chamber
ABSOptional

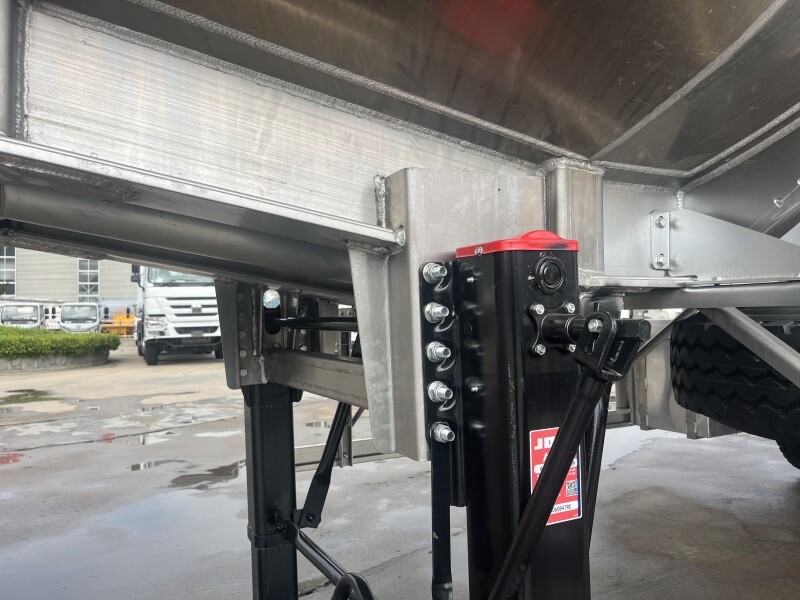

Landing gear BrandJOST
TypeA300C

The tanker accessories include Euro standard manhole cover ,API adaptor valve, Gravity drop coupler,dust cap;bottom valve,Vapor vent valve;vapor adaptor valve;vapor recovery joint;optic sensor,optic socket,optic sensor tester;fuel predictor.The internal tank body of the tank trailer is fitted with a corrugated reinforced wave guard every 2m. When the brakes are applied when the tank is fully loaded with oil, the wave guard can reduce the impact of the oil on the tank body and play a safe protective role. The whole tank body is fully automatic and seamlessly welded, 100% passing the strict testing requirements such as liquid penetration, air pressure testing and flaw detection, the tanker semi-trailer is safer to run and the quality is guaranteed.

FAQ

Q1、Why choose Tongya Automobile Co.,Ltd ?

1,China leading manufacturer of semi trailer and tanker trailer since 1982,China famous brand, Annual output of 10,000 units different kinds of semi trailers

2,More than 19 years export experience since 2005, Fully understand different local specs and standard from more than 50 different countries

3, Customized product is available, with modern and advance production line with all kinds of production equipment and production process

4, Professional technical team with 24 fully experienced engineers


Q2、What can you buy from Tongya Automobile Co.,Ltd?
Bulk Cement Tanker Semi trailer , Fuel Tanker Semi Trailer, Flatbed Semi Trailer, Skeleton Semi Trailer, Lowbed Semi Trailer, Dump Trailer,dolly trailer ,Fence Semi-trailer,Side Wall Semi-trailer, full trailer, Flour tanker trailer, ISO bulk tanker container etc.



Q3、Can I visit your factory?
Of course,welcome to visit our factory.we are located in Liangshan, Shandong Province, a face-to-face conversation can serve you better.



Q4、How about your delivery time?
10-30 days after receive the deposit, depend on the order quantity.



Q5、What payment terms do you use?
 T/T and L/C payment are acceptable.



Q6、Which incoterms 2010 terms can we work?

Normally we accept FOB, CFR, CIF.



Q7、Is it available to print our own brand on the vehicle?
Yes, we accept to do OEM for well known distributors and dealers.



Q8、What information should I let you know if I want to get a quotation?
First, please let us know which kind of trailers you want
Second, Please let us know what kind of cargo that you will load with our trailers? Loading capacity? road condition?
Third, what trailer size is OK for you, and do you want customized product
Four, your truck specs, like 2.0 or 3.5 inch fifth wheel ? fifth wheel height? 6*4 or 4*2 truck will use ?
Five, order quantity, destination port
The more information you will provide, the more accurate and competitive price we can offer.
