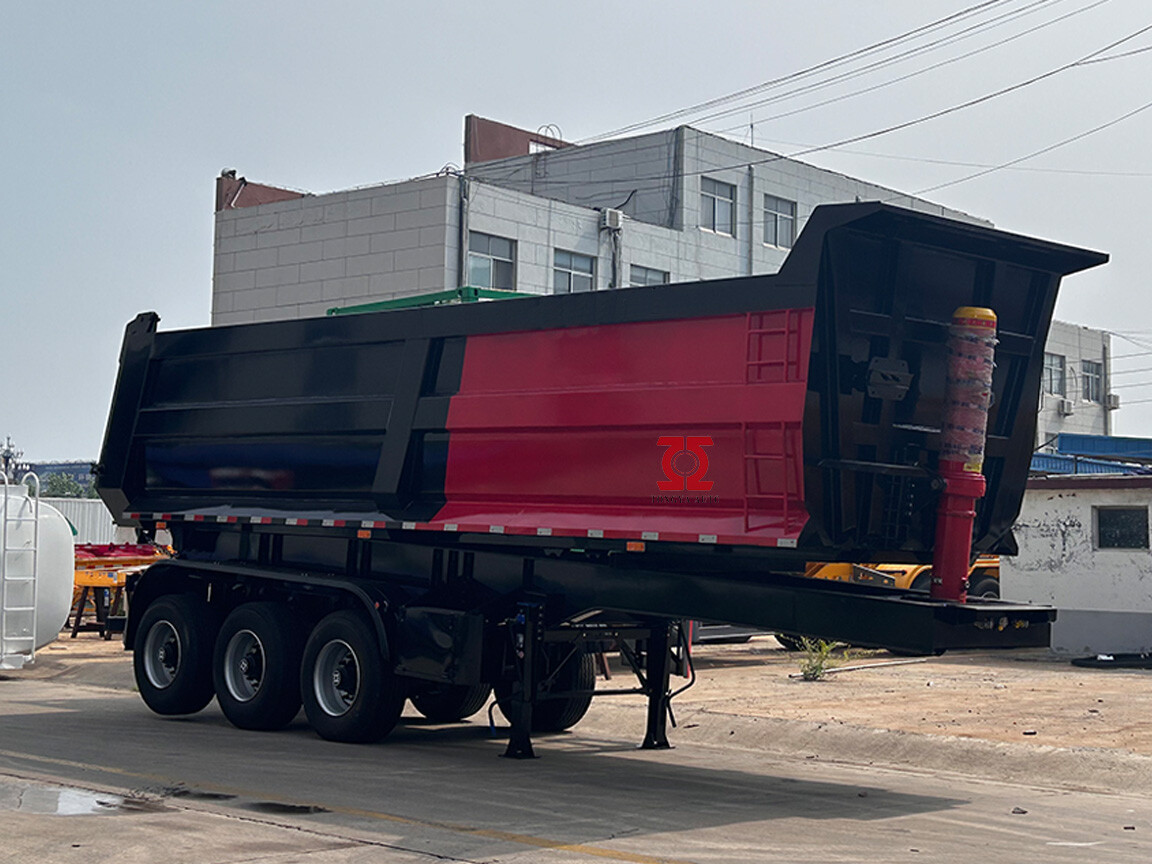

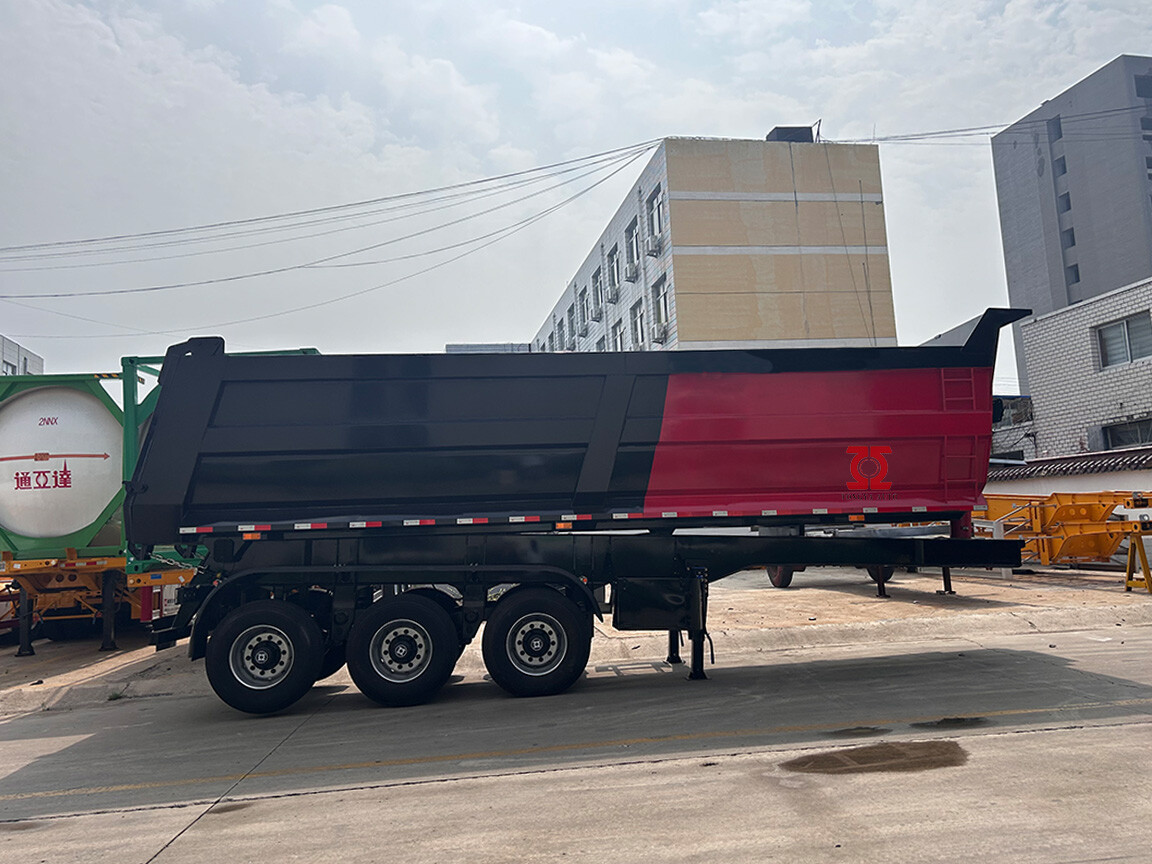

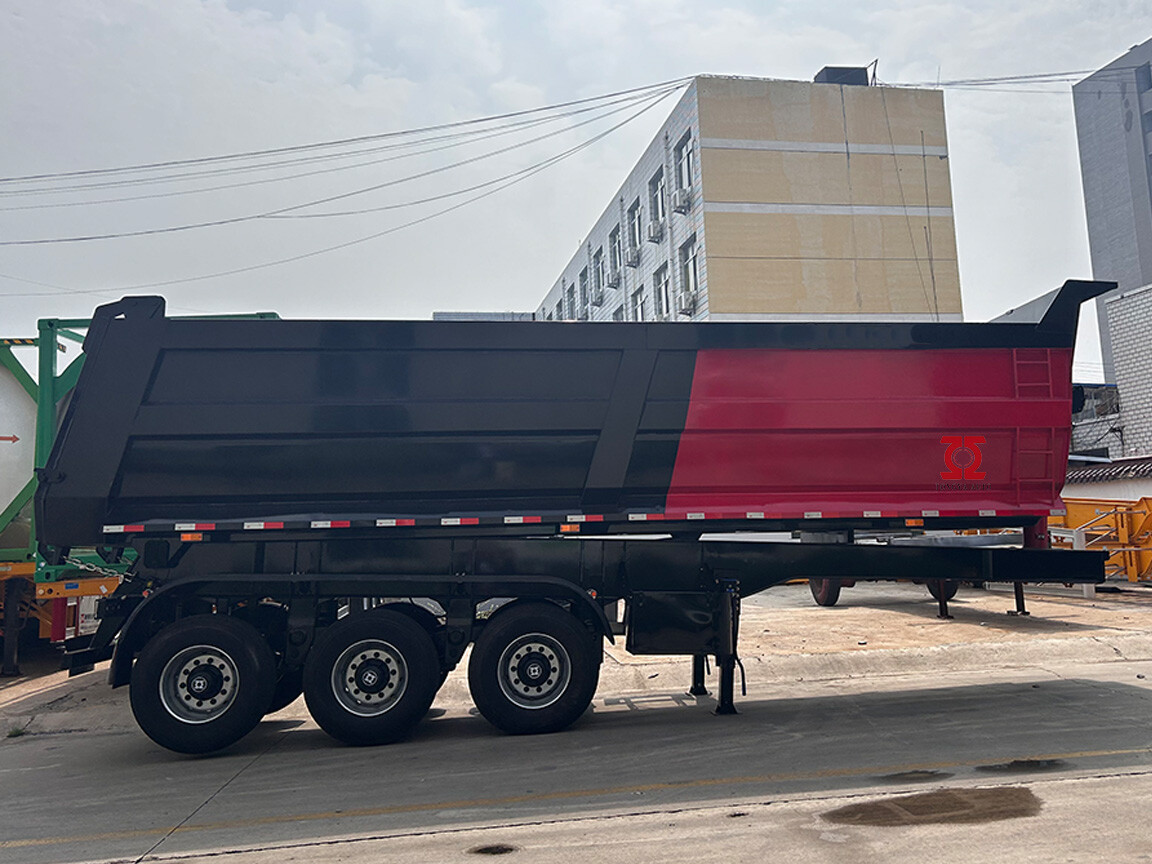

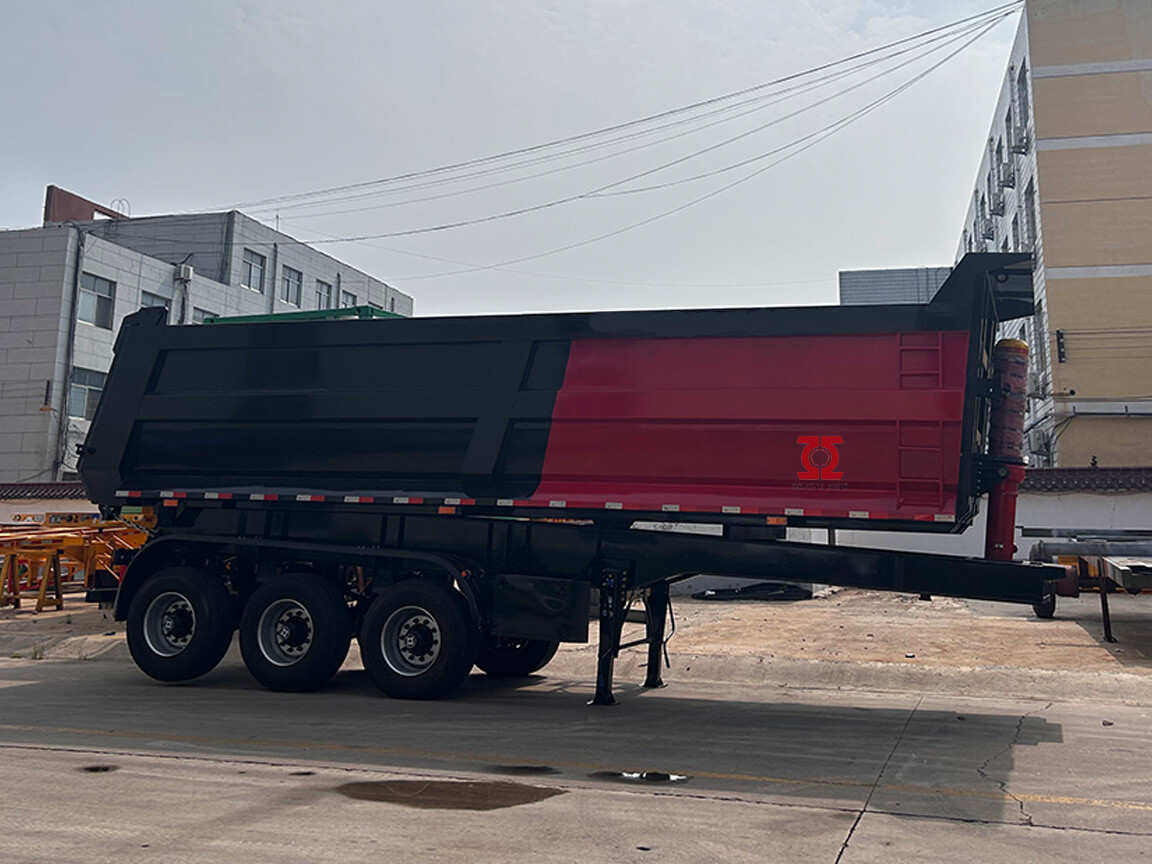

3 Axle Rear Dump Semi Trailer

3 Axle Rear Dump Semi Trailer has excellent technology and is suitable for the transportation of bulk granular cargo such as coal, ore, and construction materials.
PRODUCT DESCRIPTION

Specifications:

Main Dimensions

Dimension

11280*2495*3970mm ( outside)

10500*2300*1700mm (work space ) or customize

Tare weight

About 15600KGS

Total Volume(m3)

37 m³ or less than 80tons

Side wall thickness(mm)

6mm Q235 steel

Bottom plate thickness(mm)

8mm /Q235 steel

Lifting system

Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder

Chassis

Main Beams

Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel

Axle

3 axles, FUWA/HUAJING brand  16tons per axles

Landing Gear

JOST A300C or TONGYA 28T

King Pin

JOST 2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension/ America type /

Leaf Spring

90(W)mm*13(Thickness)mm*10 Layer

Pneumatic Braking System

WABCO RE 6 relay valve; Spring brake chamber; one piece of 45L air tanks.

Rim

9.00-22.5/8.00-20/8.5-20 China Brand

Tire

12R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional

ABS

Optional

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Accessories

One standard tool box

Shipping Terms

By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model .

FAQ

Q1、Why choose Tongya Automobile Co.,Ltd ?

1,China leading manufacturer of semi trailer and tanker trailer since 1982,China famous brand, Annual output of 10,000 units different kinds of semi trailers

2,More than 19 years export experience since 2005, Fully understand different local specs and standard from more than 50 different countries

3, Customized product is available, with modern and advance production line with all kinds of production equipment and production process

4, Professional technical team with 24 fully experienced engineers


Q2、What can you buy from Tongya Automobile Co.,Ltd?
Bulk Cement Tanker Semi trailer , Fuel Tanker Semi Trailer, Flatbed Semi Trailer, Skeleton Semi Trailer, Lowbed Semi Trailer, Dump Trailer,dolly trailer ,Fence Semi-trailer,Side Wall Semi-trailer, full trailer, Flour tanker trailer, ISO bulk tanker container etc.



Q3、Can I visit your factory?
Of course,welcome to visit our factory.we are located in Liangshan, Shandong Province, a face-to-face conversation can serve you better.



Q4、How about your delivery time?
10-30 days after receive the deposit, depend on the order quantity.



Q5、What payment terms do you use?
 T/T and L/C payment are acceptable.



Q6、Which incoterms 2010 terms can we work?

Normally we accept FOB, CFR, CIF.



Q7、Is it available to print our own brand on the vehicle?
Yes, we accept to do OEM for well known distributors and dealers.



Q8、What information should I let you know if I want to get a quotation?
First, please let us know which kind of trailers you want
Second, Please let us know what kind of cargo that you will load with our trailers? Loading capacity? road condition?
Third, what trailer size is OK for you, and do you want customized product
Four, your truck specs, like 2.0 or 3.5 inch fifth wheel ? fifth wheel height? 6*4 or 4*2 truck will use ?
Five, order quantity, destination port
The more information you will provide, the more accurate and competitive price we can offer.
