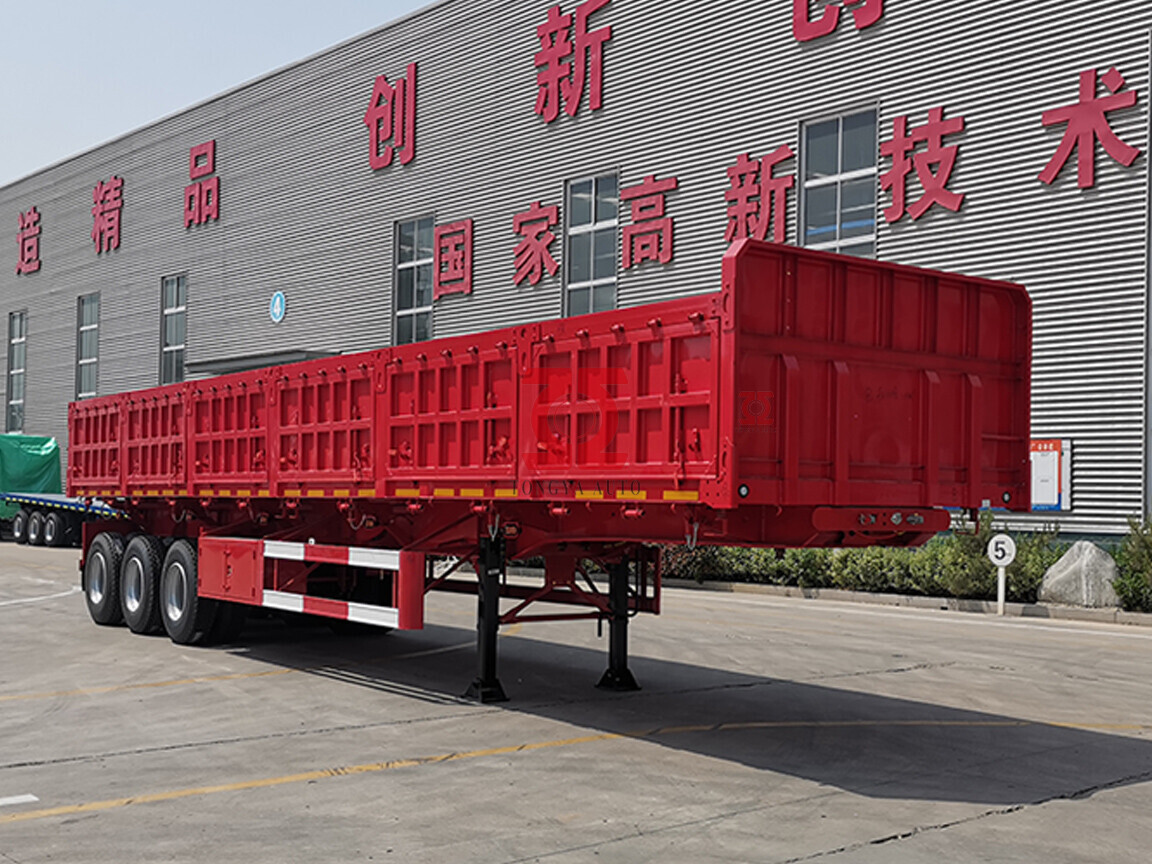

40T SIDE DUMP SEMI TRAILER

1、Working for mines or other large projects, mainly transport gravel, soil and coal,
2、Available for customization: including color and tire specifications, axles and dimension,
3、High efficiency: the side tipping semi-trailer is more efficiently for quick and easy loading and unloading of materials,
4、Excellent technology: the main components are processed by advanced equipment, the longitudinal beam is made by automatic submerged arc welding, and the assembly machine is used to accurately assemble the axle and leaf spring.
PRODUCT DESCRIPTION
Specification
Outside Dimension12500mm*2500mm*2500mm(the final dimension is according the final drawing picture)
Tare weightAbout 9.3tons
Axle3 axles, TONGYADA brand 13tons per axles
Loading capacity40tons
Side wall thickness2mm
Bottom platform3mm smooth platform
Lifting systemE1104pcs + E1202pcs lifting cylinder, 1 shifting cylinder , PTO
Side beam16# channel steel
Main beam(q345)Height: 500mm, upper plate is 14mm, middle is 8mm,down plate is 16mm
Landing gearJost A300C or standard 28 tons
King PinJost 2.0 or 3.5 inch bolt-in type
SuspensionMechanical suspension America type
Leaf spring90(W)mm*13(thickness)*10 Layer
Pneumatic Braking SystemWABCO RE 6 relay valve; spring brake chamber; one piece of 45L air tanks
Rim9.0*22.5  brand can be optional 12pcs
Tire12R222.5 brand can be optional 12pcs
ABSoptional
PaintingSpray powder
AccessoriesOne standard tool box(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)One spare tire carrier24 weld on winchRope hook

More detail pictures:

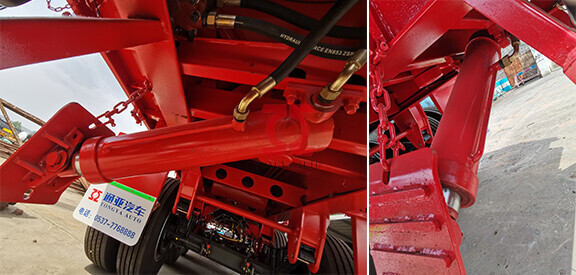

Cylinder:

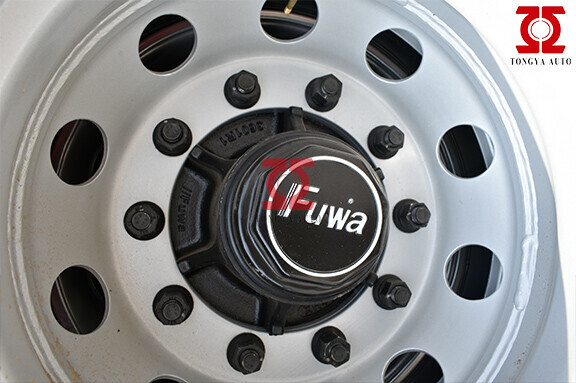

Axle:

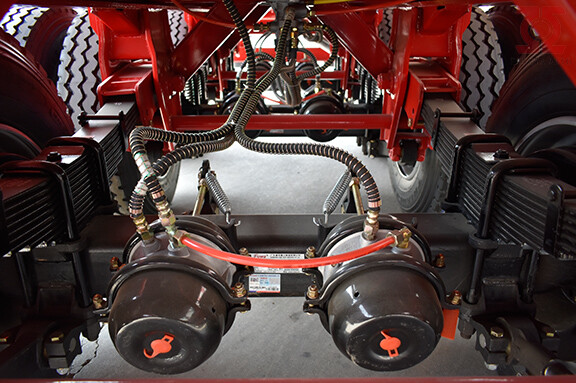

Air chamber:




FAQ

Q1、Why choose Tongya Automobile Co.,Ltd ?

1,China leading manufacturer of semi trailer and tanker trailer since 1982,China famous brand, Annual output of 10,000 units different kinds of semi trailers

2,More than 19 years export experience since 2005, Fully understand different local specs and standard from more than 50 different countries

3, Customized product is available, with modern and advance production line with all kinds of production equipment and production process

4, Professional technical team with 24 fully experienced engineers


Q2、What can you buy from Tongya Automobile Co.,Ltd?
Bulk Cement Tanker Semi trailer , Fuel Tanker Semi Trailer, Flatbed Semi Trailer, Skeleton Semi Trailer, Lowbed Semi Trailer, Dump Trailer,dolly trailer ,Fence Semi-trailer,Side Wall Semi-trailer, full trailer, Flour tanker trailer, ISO bulk tanker container etc.



Q3、Can I visit your factory?
Of course,welcome to visit our factory.we are located in Liangshan, Shandong Province, a face-to-face conversation can serve you better.



Q4、How about your delivery time?
10-30 days after receive the deposit, depend on the order quantity.



Q5、What payment terms do you use?
 T/T and L/C payment are acceptable.



Q6、Which incoterms 2010 terms can we work?

Normally we accept FOB, CFR, CIF.



Q7、Is it available to print our own brand on the vehicle?
Yes, we accept to do OEM for well known distributors and dealers.



Q8、What information should I let you know if I want to get a quotation?
First, please let us know which kind of trailers you want
Second, Please let us know what kind of cargo that you will load with our trailers? Loading capacity? road condition?
Third, what trailer size is OK for you, and do you want customized product
Four, your truck specs, like 2.0 or 3.5 inch fifth wheel ? fifth wheel height? 6*4 or 4*2 truck will use ?
Five, order quantity, destination port
The more information you will provide, the more accurate and competitive price we can offer.
