3 Axle Side Dump Semi Trailer — 50 Ton Hydraulic Side Tipper
Specifications at a Glance

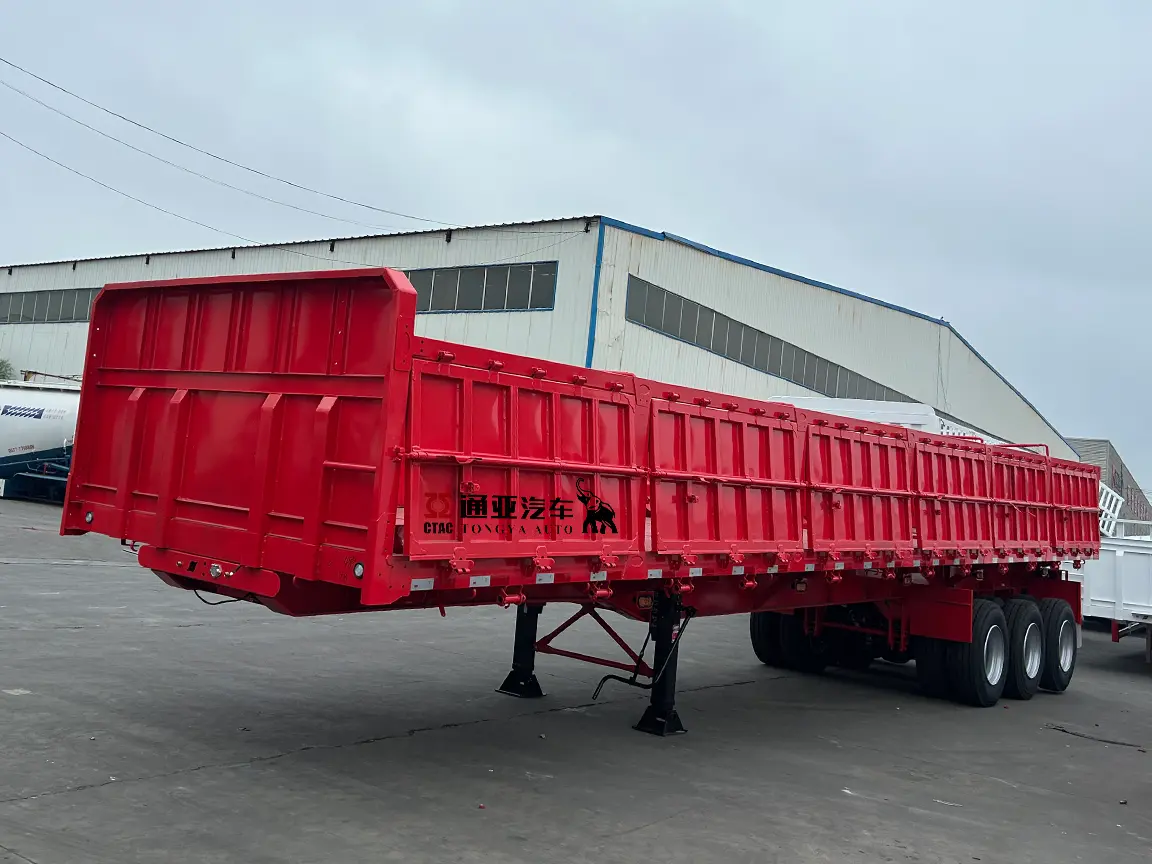

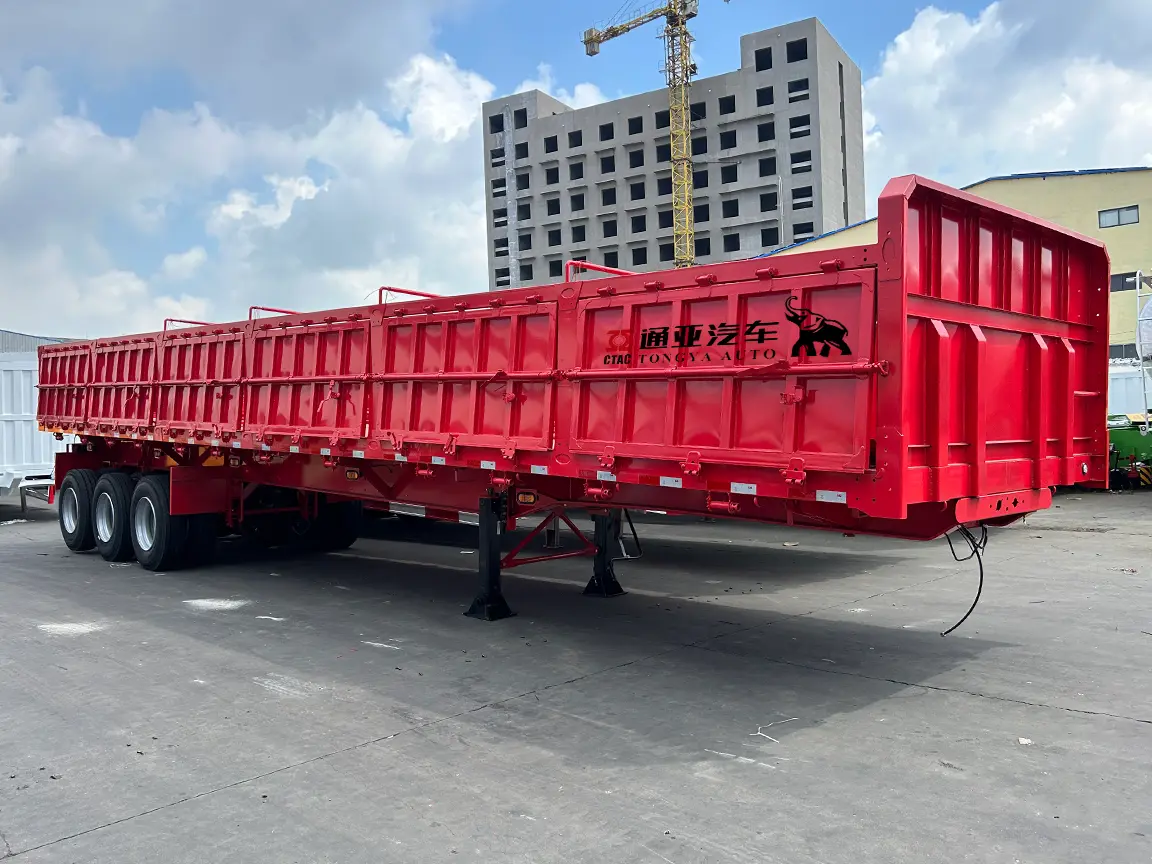

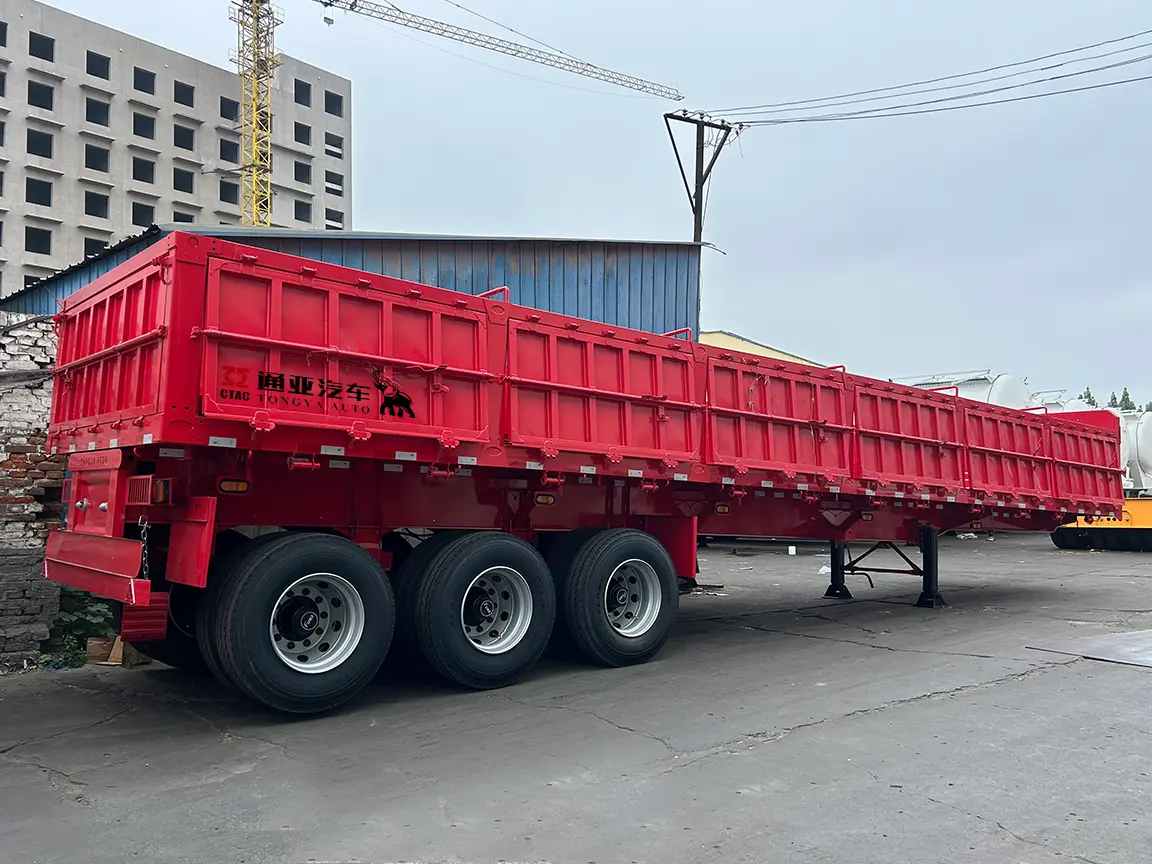

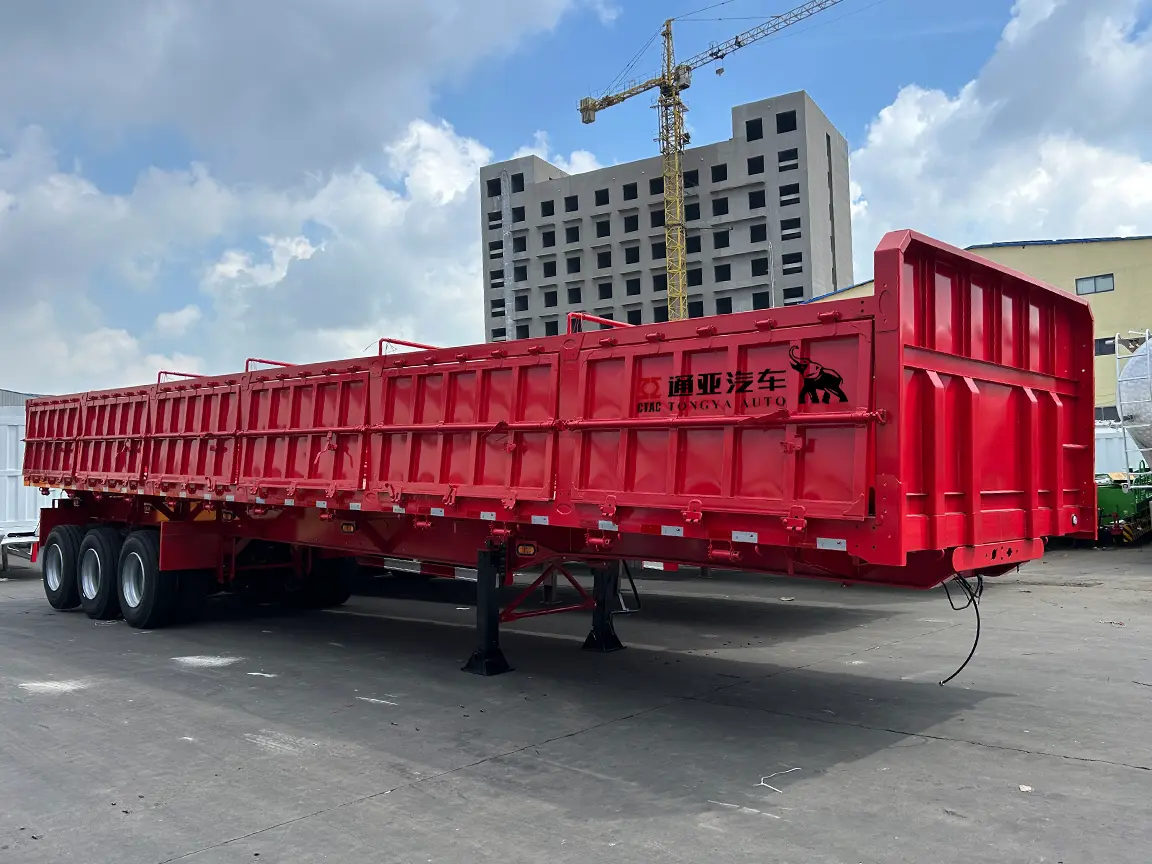

Side Dump Semi Trailer Photos
What Is a Side Dump Semi Trailer?
A side dump semi trailer — also sold as a side tipper semi trailer or side tipping trailer — is a semi-trailer whose body is hinged to the frame and raised sideways by hydraulic cylinders, so the cargo is discharged over the side rail rather than out of the back. The body carries a steel floor with 2.3 mm Q235 side walls divided into three or five doors per side, and each side door is hinged at the top so it lifts and swings clear as the body rises.
That design changes the haul cycle. A rear dump trailer has to reverse into position and needs a pit, an embankment or a clear run-out after tipping. The side dump trailer is loaded and unloaded from level ground: the tractor stays in line, the body discharges to the kerb side, and the unit drives straight out. On a quarry floor, a coal stockyard or a construction spoil tip, that keeps trucks moving instead of queueing for a turnaround.
This 3 axle side dump trailer is built for exactly that duty — a 9,000 mm body on three 13 t axles, on 12 tyres, tipping to one side as specified at order.
Best suited to
- Iron ore, coal and mineral haulage from pit to stockyard
- Sand, gravel and crushed stone distribution
- Construction spoil and excavation removal in tight sites
- Slag, soil and bulk yard handling on level floors
- Fleets that already run 6×4 tractors and want a lower cost per tonne
How the Hydraulic Side Tipping Cycle Works
- Load. Bulk material is loaded from above with a wheel loader or excavator. The 3 mm steel floor and 2.3 mm Q235 side walls take direct bucket contact.
- Travel. The load is carried on three 13 t axles with American-type mechanical suspension and a 500 mm Q345B main beam, with the body locked down on the frame.
- Position. The driver pulls up parallel to the discharge line, lowers the JOST A300C landing gear where the ground demands extra support, and engages the tractor PTO.
- Tilt. The four φ125 mm cylinders raise the body while the φ140 mm cylinder completes the stroke, and the top-hinged side doors swing clear so the material flows out over the side rail.
- Return. The body settles back on the frame, the doors close and lock, and the truck drives away without a turnaround — the reason a side tipping trailer keeps cycle times short on level ground.
Hydraulic and pneumatic controls are grouped on the trailer, and the electrical system runs on standard 24 V with a 7-way harness, so the unit can be hooked to a normal 6×4 tractor rather than a dedicated prime mover.
Full Technical Specifications
Build Details That Decide Service Life
Hydraulic lifting system
Four φ125 mm lifting cylinders are paired with one φ140 mm cylinder. The body is hinged to the frame through the cylinders and slewing bearings, so the lift is a guided arc rather than a free tilt, and the 140 mm cylinder finishes the stroke at the point where the load breaks loose. The pump is driven from the tractor PTO, which keeps the trailer independent of a separate power pack.
Body, side walls and doors
Side walls are 2.3 mm Q235 steel, ribbed and divided into three or five doors per side. Doors are hinged at the top of the body so they turn up and out of the way as the body rises, and lock bars along the side rail keep the load contained in transit. The floor is a 3 mm steel plate, which is thick enough for direct bucket loading without a liner.
Chassis and running gear
The 500 mm Q345B main beam runs 16 mm / 8 mm / 18 mm plate, supported by 16# channel side beams. Three 13 t FUWA axles with American-type mechanical suspension carry the load on 12 tyres, so the bogie keeps rolling even with a puncture. JOST D200T landing gear and a JOST 2.0 in or 3.5 in bolt-in kingpin are standard fittings, which means spare parts are available in most export markets.
Protection and finish
The complete chassis is sand-blasted to remove mill scale and rust before painting, then finished with one anti-corrosive primer and two final coats. That preparation is the difference between a trailer that still looks like new after two seasons of coal or aggregate work and one that is being repainted at the first wash-down.
Documentation supplied with each unit
- Approved dimension and welding drawing for your build
- Axle, tyre, kingpin and landing gear specifications
- Hydraulic system layout and cylinder data
- Loading, tipping and lock-down operating instructions
- Container loading plan where container shipment is used
