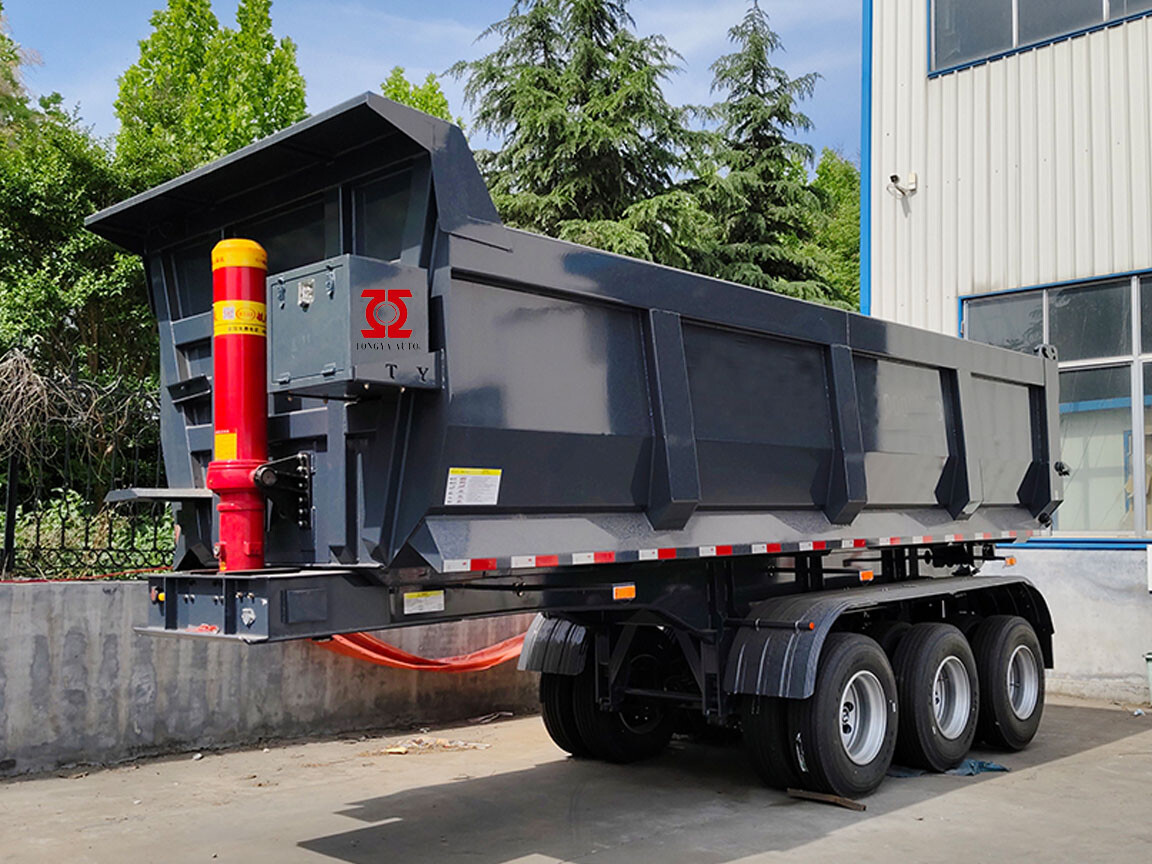

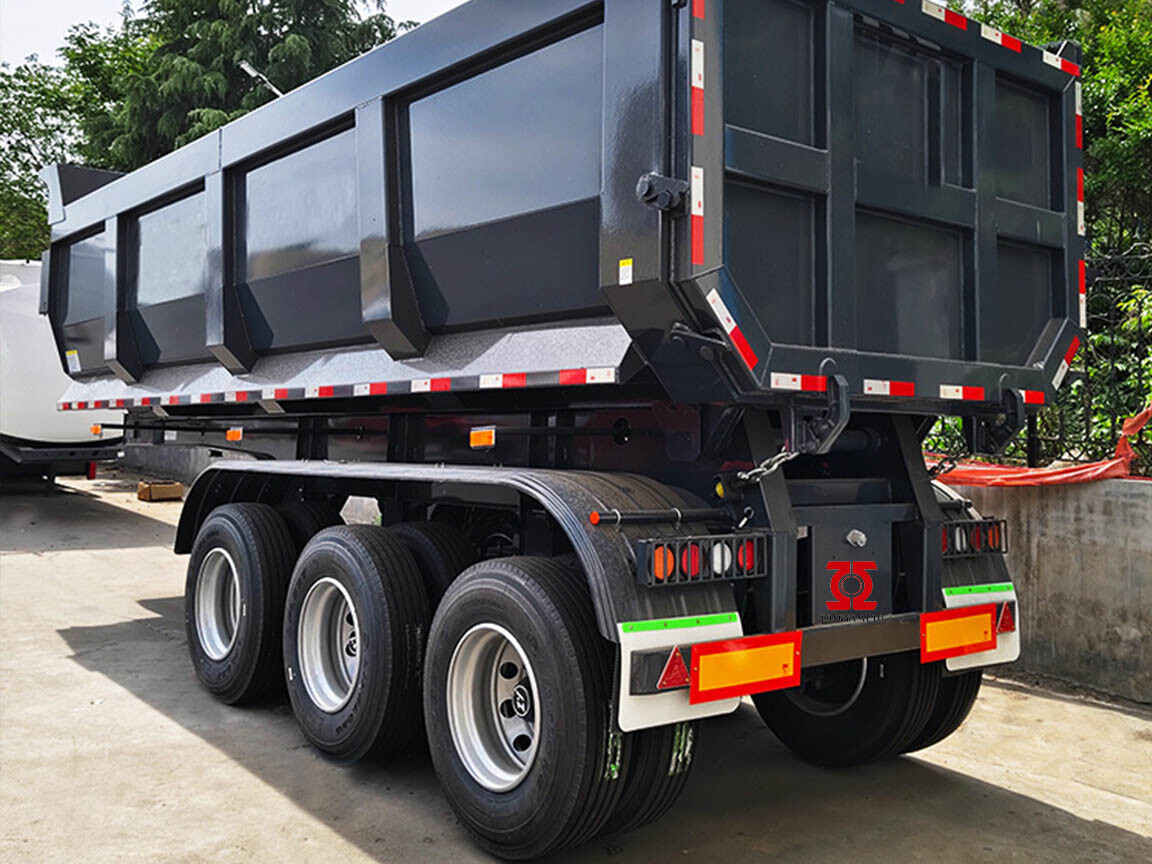

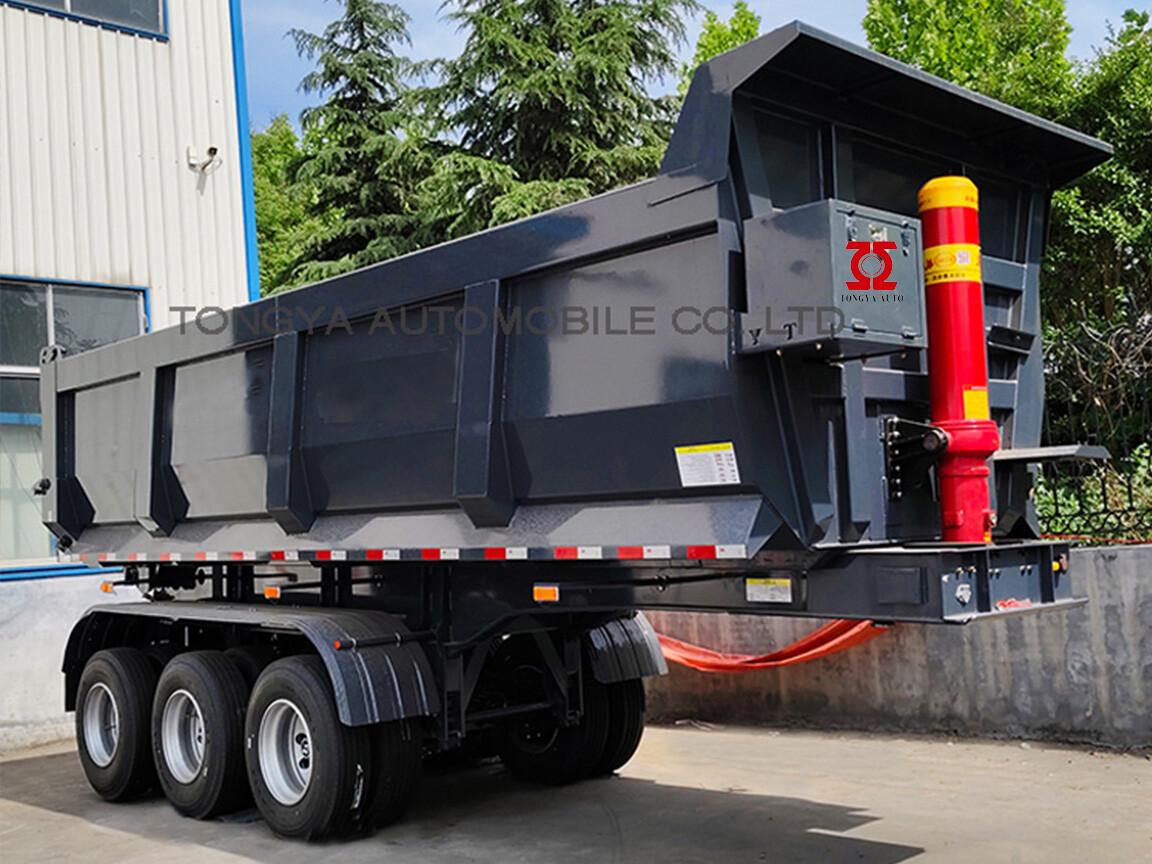

40T Dump Semi Trailer

40T Dump Semi Trailer is used to transport and tipping sand,stone,grain,ec
PRODUCT DESCRIPTION

Specifications:

Semi trailer Dimension

7700*2500*1500mm(customized)
Tare WeightAbout 10000kg
Total Volume37m3 or less than 40tons
Side wall thicknes(mm)6mm Q235 steel
Bottom plate thickness(mm)8mm Q235steel
Lifting systemFull set of Hyva(FC214-5-07130)Hydraulic Lifting Cylinder
Chassis
Main beam

Height:500mm,upon plate is 16mm,middle plate is 8mm(2-in-1 or 3-in-1 plate),down plate is 18mm

;Material is Q345B Steel

Axle13T/16T,FUWA/BPW Brand
Spring leaf90(w)mm*13(thickness)mm*10Layer or 100mm*12mm*12
King pinJost brand 2.0 0r 3.5 inch bolts type or welding type
Landing Gearwithout or choose JOST brand A300C or China brand 28Tons (Double speed) or optical
SuspensionMechanical suspension/America Type/Germany Type
Rim9.00-22.5/8.00-20/8.5-20China Brand
Tire 12R22.5/315 80R22.5/11.00R20/12.00R20 Various tire brands are available
Pneumatic Braking systemWABCO RE 6 relay valve;T30/30+T30 Spring brake chamber,45L air tank
ABSOptional
Tool boxOne piece,1m*0.5m*0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
PaintingComplete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2coats of final paint
Shipping termTransport by bulk cargo carrier or RORO The trailer size can be designed according to your special requirements.You can choose a 6*4 model truck for use with your rea dump semi trailer

40T Dump Semi Trailer Advantages:

1. The use of high quality steel in the body of the vehicle reduces weight and allows for more cargo to be loaded.

2. U-shaped body design makes loading and unloading cargo more convenient.

3. Different configurations can be designed according to different cargo requirements, thus creating a modern transportation tool.





FAQ

Q1、Why choose Tongya Automobile Co.,Ltd ?

1,China leading manufacturer of semi trailer and tanker trailer since 1982,China famous brand, Annual output of 10,000 units different kinds of semi trailers

2,More than 19 years export experience since 2005, Fully understand different local specs and standard from more than 50 different countries

3, Customized product is available, with modern and advance production line with all kinds of production equipment and production process

4, Professional technical team with 24 fully experienced engineers


Q2、What can you buy from Tongya Automobile Co.,Ltd?
Bulk Cement Tanker Semi trailer , Fuel Tanker Semi Trailer, Flatbed Semi Trailer, Skeleton Semi Trailer, Lowbed Semi Trailer, Dump Trailer,dolly trailer ,Fence Semi-trailer,Side Wall Semi-trailer, full trailer, Flour tanker trailer, ISO bulk tanker container etc.



Q3、Can I visit your factory?
Of course,welcome to visit our factory.we are located in Liangshan, Shandong Province, a face-to-face conversation can serve you better.



Q4、How about your delivery time?
10-30 days after receive the deposit, depend on the order quantity.



Q5、What payment terms do you use?
 T/T and L/C payment are acceptable.



Q6、Which incoterms 2010 terms can we work?

Normally we accept FOB, CFR, CIF.



Q7、Is it available to print our own brand on the vehicle?
Yes, we accept to do OEM for well known distributors and dealers.



Q8、What information should I let you know if I want to get a quotation?
First, please let us know which kind of trailers you want
Second, Please let us know what kind of cargo that you will load with our trailers? Loading capacity? road condition?
Third, what trailer size is OK for you, and do you want customized product
Four, your truck specs, like 2.0 or 3.5 inch fifth wheel ? fifth wheel height? 6*4 or 4*2 truck will use ?
Five, order quantity, destination port
The more information you will provide, the more accurate and competitive price we can offer.
