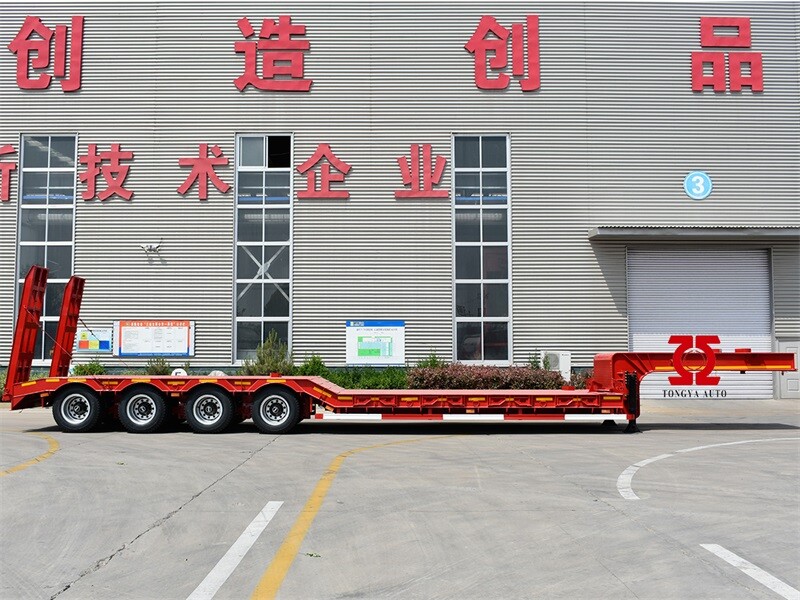

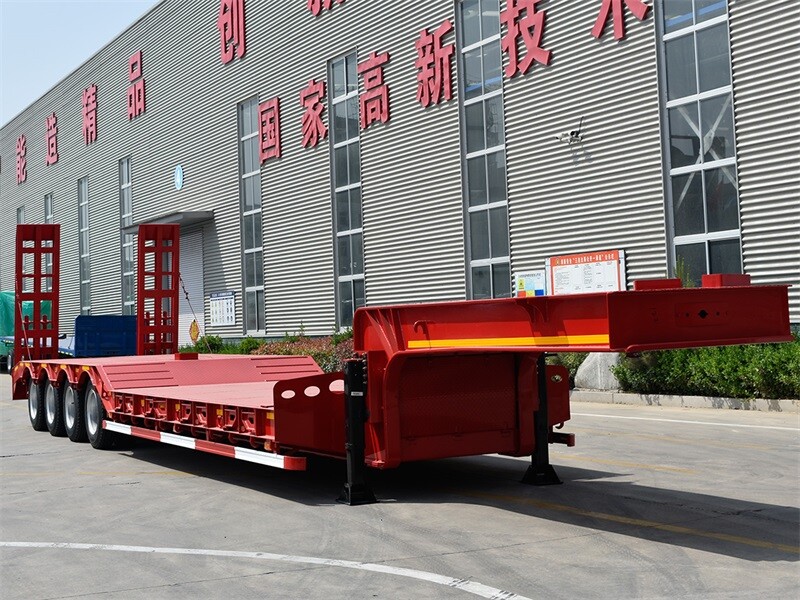

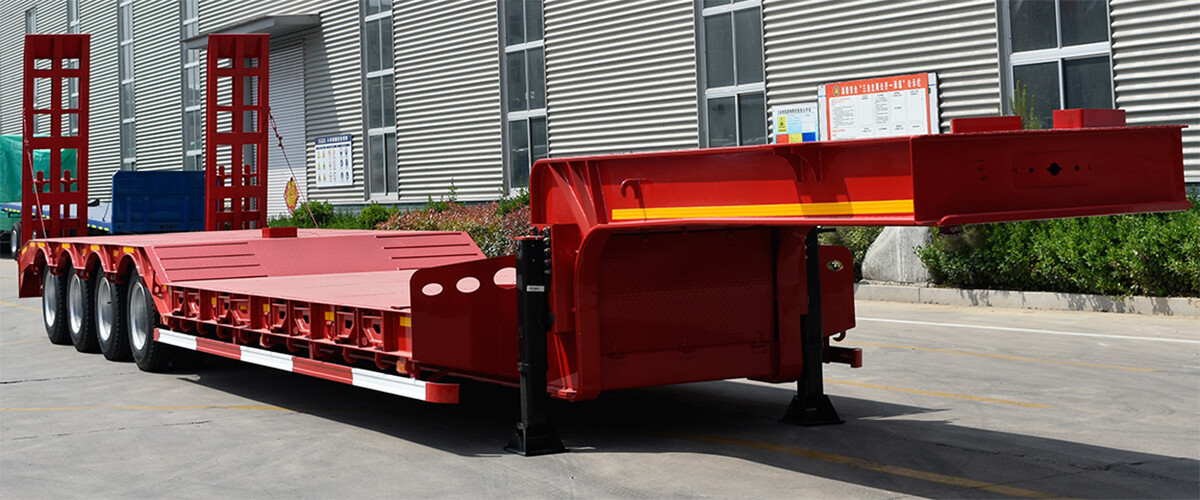

Low Loading Low Bed Semi Trailer

1.Low loading surface for better transportation of large machinery and equipment;
2.60Tons loading capacity, customization is acceptable for style ,loading capacity and size；
3.China leading manufacturer since 1982.
CONTACT US
MESSAGE
PRODUCT DESCRIPTION

Product NameLow bed semi trailer
Weight:Tare Weight12T
Loading capacity60 T
Total weight72 T
Dimensions:Outside dimension13000*3000*850 mm (The final dimensions depend on the final design drawings)

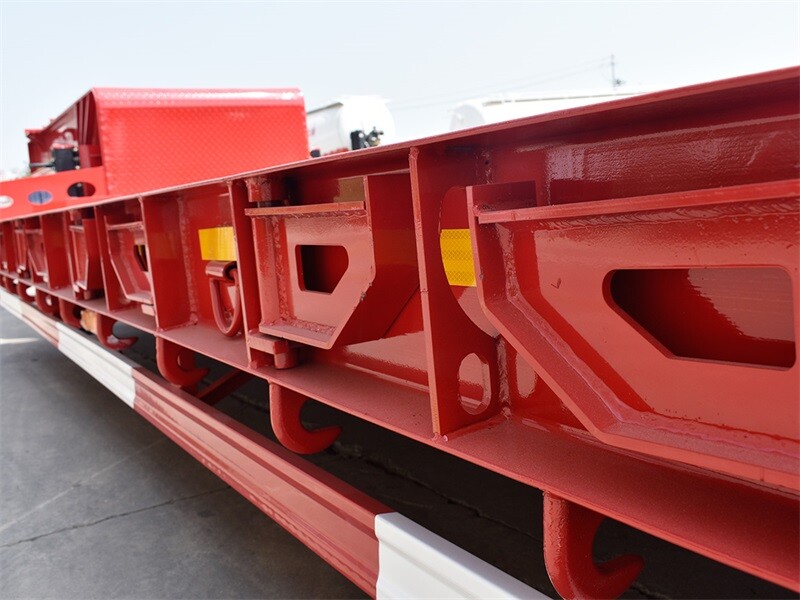

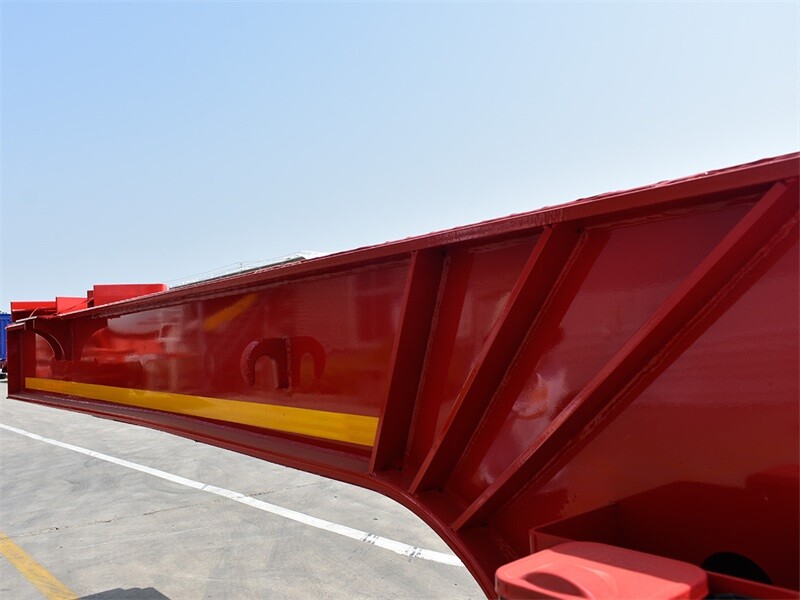

Frame:  Main beamOpting for high strength Q345B steel, 520mm deep welded I-section main beams Top Flange thickness 20mm, width 140mm; Bottom Flange thickness 25mm, width 140mm.Middle Flange thickness 12mm;
Cross beamHeavy duty Special U steel
Side beam25# high I beam

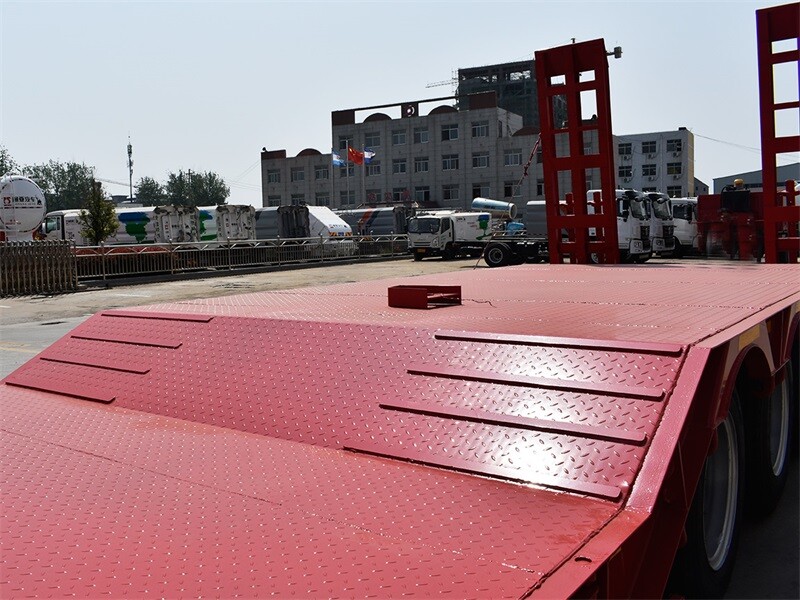

Floor5 mm thickness chequer plate

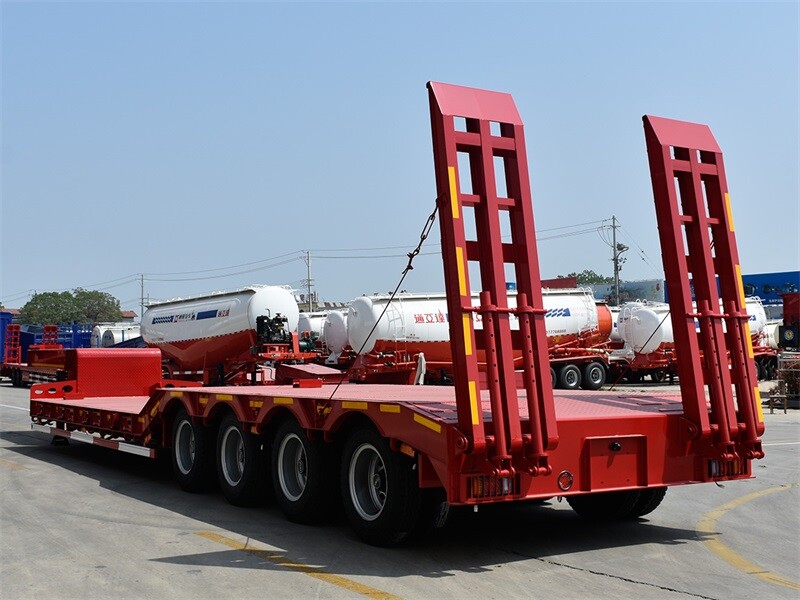

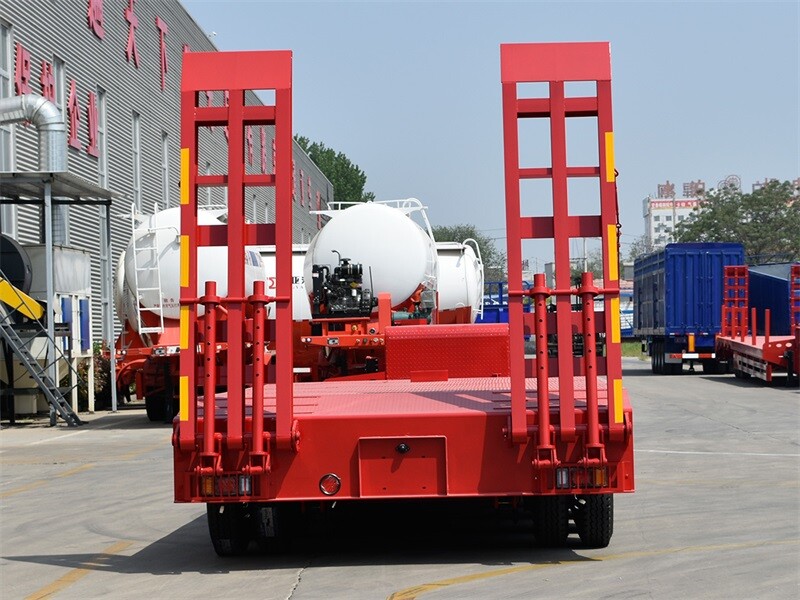

Rear ladder (ramps)Two pieces spring steel ladder, (Q345B steel)

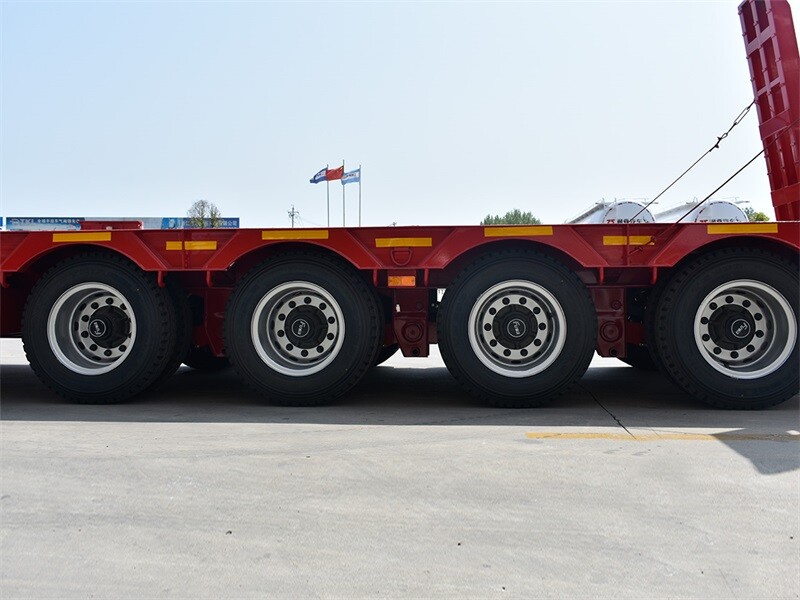

OEM parts:　　　Axle4 *13T capacity, FUWA brand (Chinese best brand)
King Pin90#/50#, JOST brand

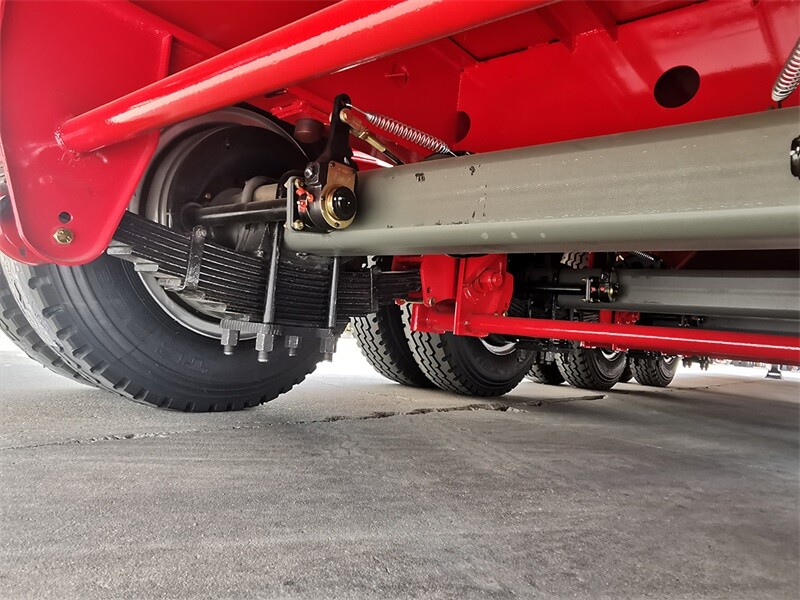

SuspensionReverse mounting four-axle suspension with equalizers, American design
Steel SpringEight sets of reliable local brand,10pcs leaf spring, 13mm thickness, 90mm width

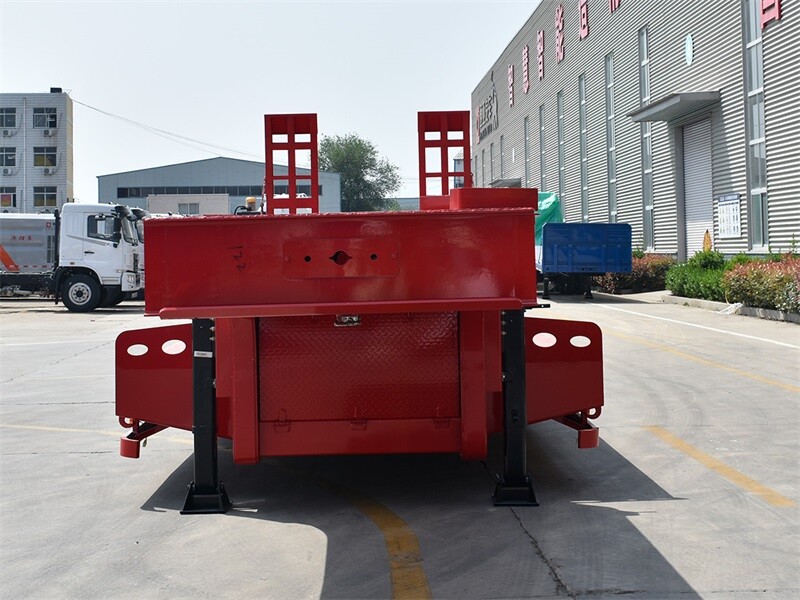

Landing legsJOST A300C
Tire specs8.25R20-14 Triangle brand
Rim6.5*20-14
Number of wheel17 pieces(including one spare wheel)
ExtendableYes or Choose according to your requirements
 Brake systemWABCO relay valve; Six double and two single brake chamber; Two units of ISO standard coppery air-connector.　
ElectricalOne unit of 24V 7-pin ISO 1185 socket; LED lights
　　　Miscellaneous:Paintingcolor advised by client
MarkingStandard
Side GuardStandard
Tools boxOne piece (1. 0*0. 5*0. 5m), under the goose neck(with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar)
Note: All the details not mentioned will design as the final confirmation with the customer




The low loading surface provides a strong advantage when transporting some large machines and equipment.We are customized products, we can meet all your various needs.

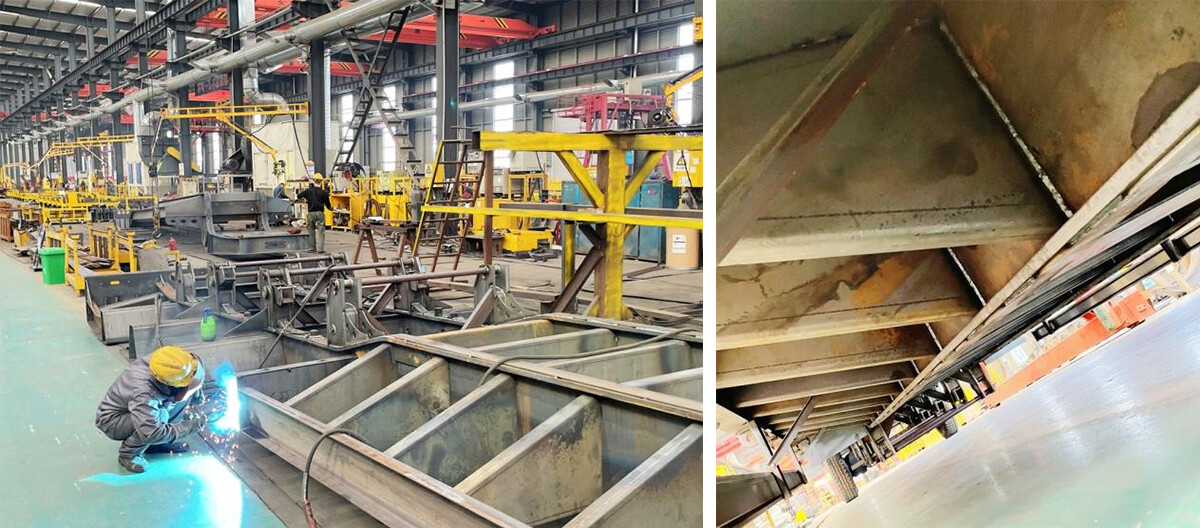

Our engineers will design the main beam for our low loading low bed semi trailer depend on the load capacity that provided by the end user customer, we choose Q345B high tensile steel in an thicken thickness, with automatic Submerged-Arc welding processes, to make sure the for our low loading low bed semi trailer with an strong loading deck.




We Use 100% famous brand spare parts for our products, like JOST, WABCO, BPW, FUWA, Double coin for our  for our low loading low bed semi trailer !

Products fully comply with relevant national standard GB1589, GB/T6420 ! at the same time to meet the individual needs of customers.


packing .jpg


Shipping by bulk cargo ship or by roll-on-roll-off ship, two or three low loading low bed semi trailer stack together to decrease the total size, to cut down the shipping freight


FAQ

Q1、Why choose Tongya Automobile Co.,Ltd ?

1,China leading manufacturer of semi trailer and tanker trailer since 1982,China famous brand, Annual output of 10,000 units different kinds of semi trailers

2,More than 19 years export experience since 2005, Fully understand different local specs and standard from more than 50 different countries

3, Customized product is available, with modern and advance production line with all kinds of production equipment and production process

4, Professional technical team with 24 fully experienced engineers


Q2、What can you buy from Tongya Automobile Co.,Ltd?
Bulk Cement Tanker Semi trailer , Fuel Tanker Semi Trailer, Flatbed Semi Trailer, Skeleton Semi Trailer, Lowbed Semi Trailer, Dump Trailer,dolly trailer ,Fence Semi-trailer,Side Wall Semi-trailer, full trailer, Flour tanker trailer, ISO bulk tanker container etc.


Q3、Can I visit your factory?
Of course,welcome to visit our factory.we are located in Liangshan, Shandong Province, a face-to-face conversation can serve you better.


Q4、How about your delivery time?
10-30 days after receive the deposit, depend on the order quantity.


Q5、What payment terms do you use?
 T/T and L/C payment are acceptable.


Q6、Which incoterms 2010 terms can we work?

Normally we accept FOB, CFR, CIF.



Q7、Is it available to print our own brand on the vehicle?
Yes, we accept to do OEM for well known distributors and dealers.



Q8、What information should I let you know if I want to get a quotation?
First, please let us know which kind of trailers you want
Second, Please let us know what kind of cargo that you will load with our trailers? Loading capacity? road condition?
Third, what trailer size is OK for you, and do you want customized product
Four, your truck specs, like 2.0 or 3.5 inch fifth wheel ? fifth wheel height? 6*4 or 4*2 truck will use ?
Five, order quantity, destination port
The more information you will provide, the more accurate and competitive price we can offer.
