60T Lowbed Semi Trailer

The reinforced main beam and optimized frame structure of 3 axle lowbed trailer truck ensure excellent stability even when carrying extremely heavy machinery such as excavators, bulldozers, and road rollers.
CONTACT US
MESSAGE
PRODUCT DESCRIPTION

3 Axle Lowbed Semi Trailer of Advantages:

With an upgraded structural design and stronger steel materials, Tongya 2026 new lowbed trailer for sale provides higher

load capacity and better durability than traditional lowbed trailers.

The reinforced main beam and optimized frame structure of 3 axle lowbed trailer truck ensure excellent stability even

when carrying extremely heavy machinery such as excavators, bulldozers, and road rollers.

At the same time, the lower deck height allows easier loading and unloading of equipment, making it especially suitabl for construction sites,mining operations, and heavy transport companies that require efficient and safe equipment

movement.

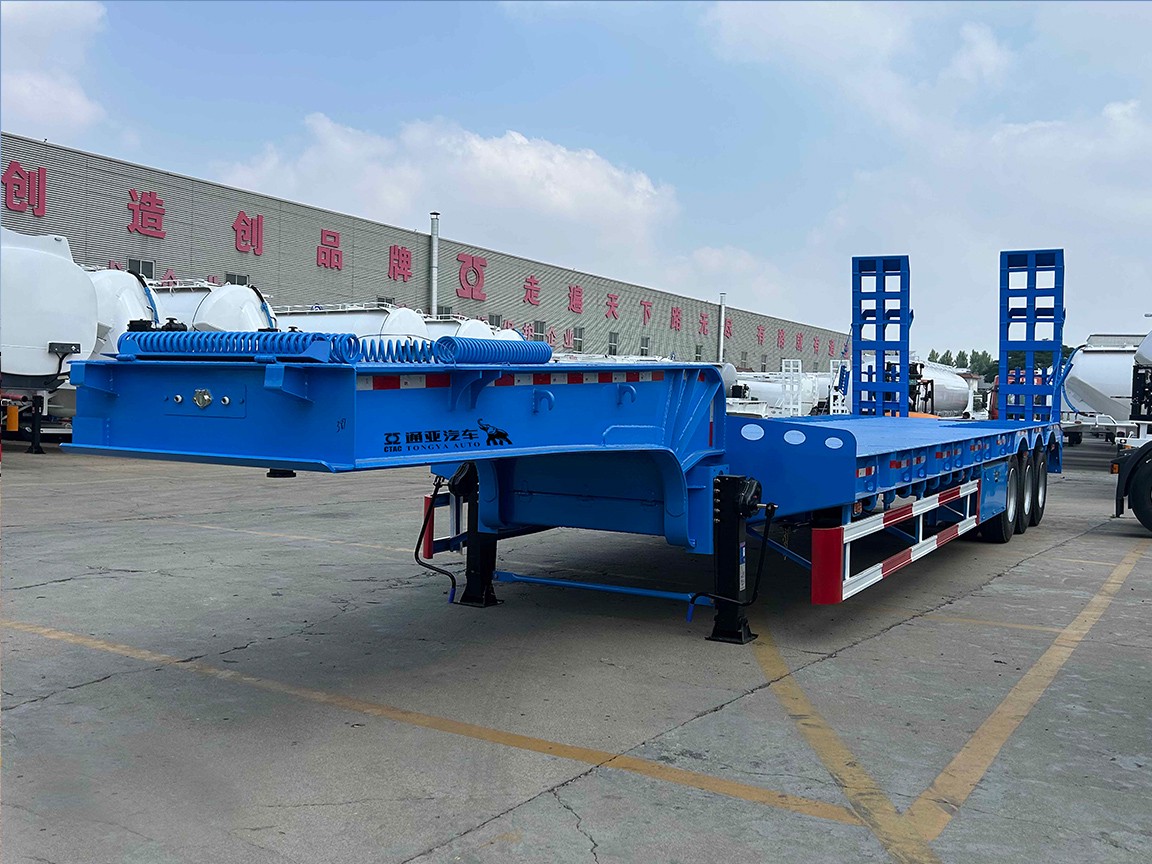

lowbed semi trailer1

lowbed semi trailer2

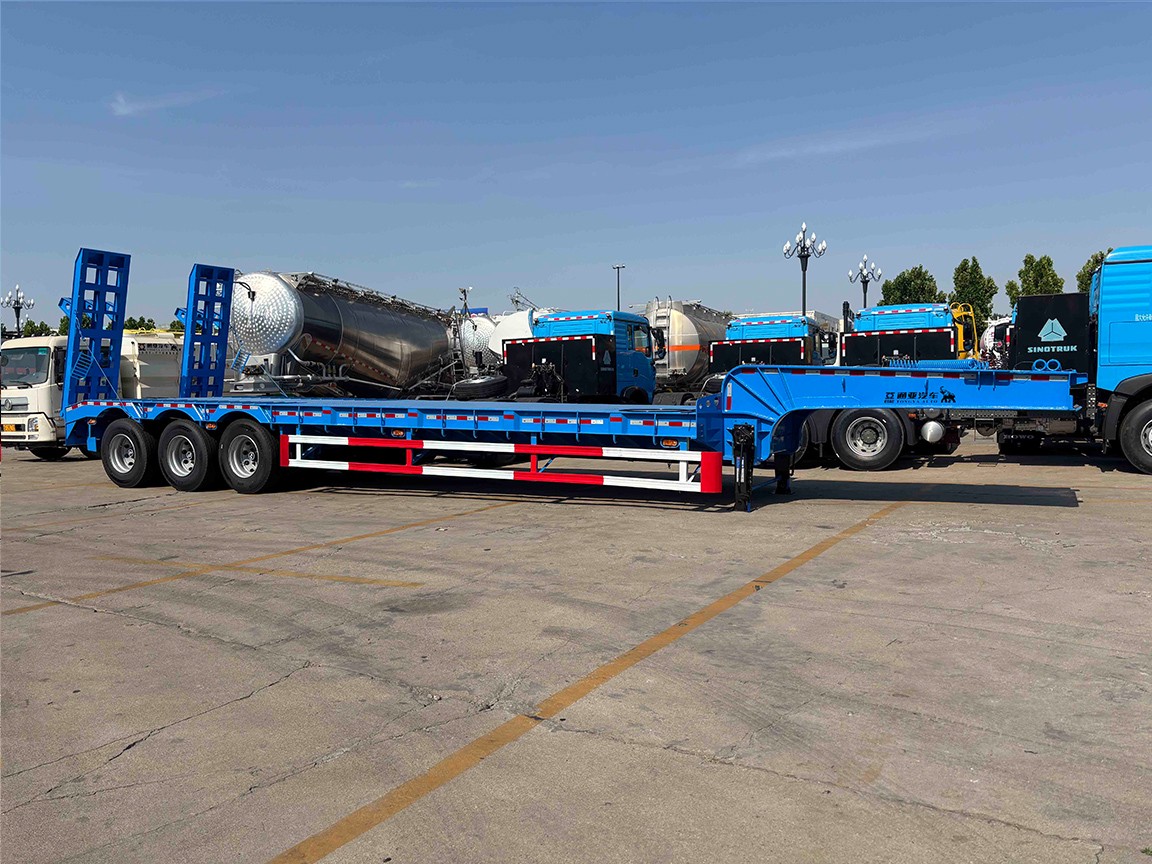

lowbed semi trailer3

3 Axle Lowbed Semi Trailer of Specification:


Weight:Tare Weight12T
Loading capacity60 T
Total weight72 T
Dimensions:Outside dimension13000*3000*3180 mm (The final dimensions depend on the final design drawings)
Frame:Design/welding technologyHeavy duty and extra durability designed;welding by automatic Submerged-Arc processes.
Main beamOpting for high strength Q345B steel, 520mm deep welded I-section main beams Top Flange thickness 20mm, width 140mm; Bottom Flange thickness 25mm, width 140mm.Middle Flange thickness 12mm;
Cross beamHeavy duty Special U steel
Side beam250mm high I beam
Floor5 mm thickness chequer plate
Rear ladder (ramps)Two pieces spring steel ladder, (Q345B steel)
OEM parts:  　　　　Axle3 *13T capacity, FUWA brand (Chinese best brand)
King Pin2.00’’/3.5’’ bolting king pin, JOST brand
SuspensionHeavy duty undermount suspension with equalizers, American design (high-strength type)
Steel Spring10pcs leaf spring, 13mm thickness, 90mm width
Landing legsJOST brand, manual operation landing legs with sand shoe
Tire specs315/80R22.5., Triangle brand (Chinese famous brand)
Rim9.0-22.5(Chinese famous brand)
Number of wheel13 pieces(including one spare wheel)
Brake systemWABCO relay valve; Four double and two single brake chamber; Two units of ISO standard coppery air-connector.　
ABS systemWithout（Can be choose freely,450 USD/set）
Electrical:One unit of 24V 7-pin ISO 1185 socket; LED lights
　　　Miscellaneous:Paintingcolor advised by client
MarkingStandard
Side GuardStandard
Spare Tire CarriersTwo set of heavy duty spare wheel carriers
Tools boxOne piece (1. 0*0. 5*0. 5m), under the goose neck(with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar)
Note: All the details not mentioned will design as the final confirmation with the customer
For more details,please contact us.We will offer you the most compectiving pricing.

factory

Factory

Canton

Canton

workshop

Workshop
FAQ

Q1、Why choose Tongya Automobile Co.,Ltd ?

1,China leading manufacturer of semi trailer and tanker trailer since 1982,China famous brand, Annual output of 10,000 units different kinds of semi trailers

2,More than 19 years export experience since 2005, Fully understand different local specs and standard from more than 50 different countries

3, Customized product is available, with modern and advance production line with all kinds of production equipment and production process

4, Professional technical team with 24 fully experienced engineers


Q2、What can you buy from Tongya Automobile Co.,Ltd?
Bulk Cement Tanker Semi trailer , Fuel Tanker Semi Trailer, Flatbed Semi Trailer, Skeleton Semi Trailer, Lowbed Semi Trailer, Dump Trailer,dolly trailer ,Fence Semi-trailer,Side Wall Semi-trailer, full trailer, Flour tanker trailer, ISO bulk tanker container etc.


Q3、Can I visit your factory?
Of course,welcome to visit our factory.we are located in Liangshan, Shandong Province, a face-to-face conversation can serve you better.


Q4、How about your delivery time?
10-30 days after receive the deposit, depend on the order quantity.


Q5、What payment terms do you use?
 T/T and L/C payment are acceptable.


Q6、Which incoterms 2010 terms can we work?

Normally we accept FOB, CFR, CIF.



Q7、Is it available to print our own brand on the vehicle?
Yes, we accept to do OEM for well known distributors and dealers.



Q8、What information should I let you know if I want to get a quotation?
First, please let us know which kind of trailers you want
Second, Please let us know what kind of cargo that you will load with our trailers? Loading capacity? road condition?
Third, what trailer size is OK for you, and do you want customized product
Four, your truck specs, like 2.0 or 3.5 inch fifth wheel ? fifth wheel height? 6*4 or 4*2 truck will use ?
Five, order quantity, destination port
The more information you will provide, the more accurate and competitive price we can offer.
