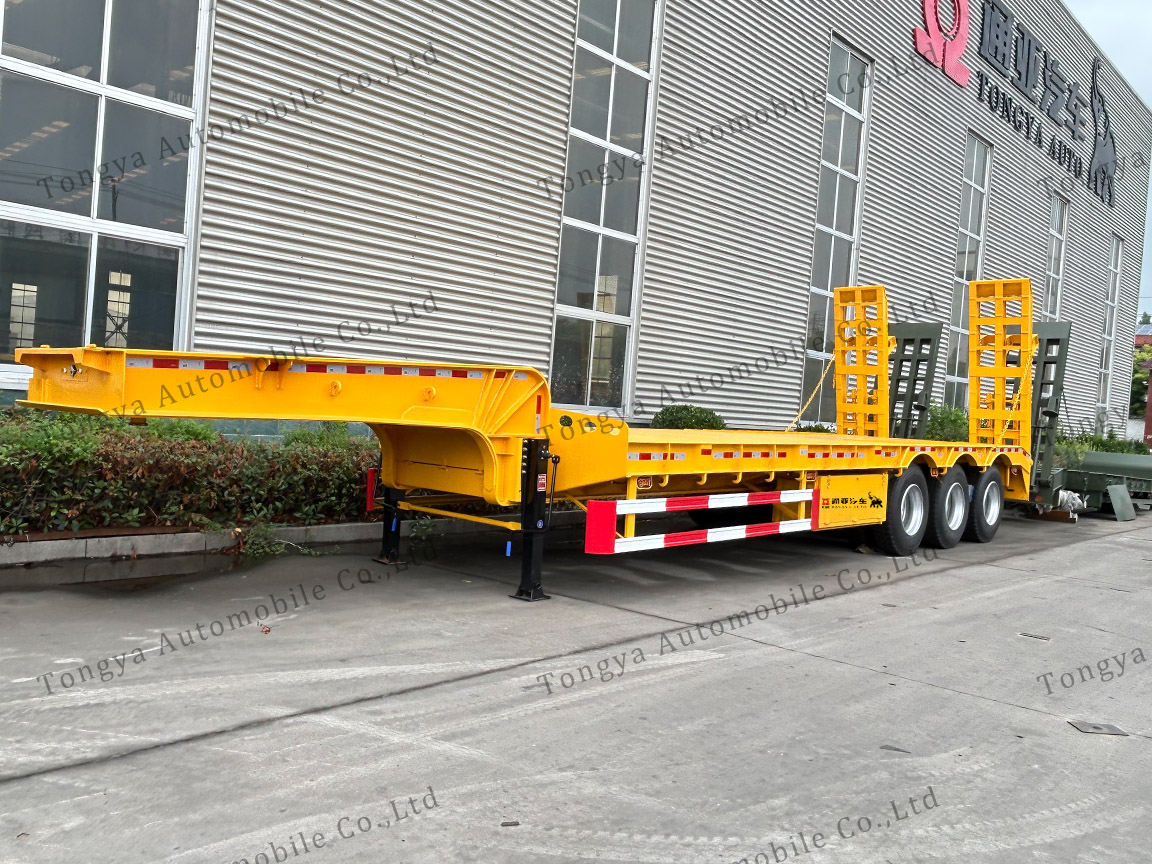

3 Axle Lowbed Semi Trailer for Heavy Equipment

›

‹

  • 3 Axle Lowbed Semi Trailer for Heavy Equipment
  • 3 Axle Lowbed Semi Trailer for Heavy Equipment
  • 3 Axle Lowbed Semi Trailer for Heavy Equipment
  • 3 Axle Lowbed Semi Trailer for Heavy Equipment
  • 3 Axle Lowbed Semi Trailer for Heavy Equipment

›

3 Axle Lowbed Semi Trailer for Heavy Equipment

Low Bed Semi Trailer as known as low bed trailer, lowbed trailer, lowboy trailer. There are generally used to transport construction machinery and large equipment. Generally, many places are limited, especially on some bridges. The use of flatbed trailers cannot be transported, so people use lowbed semi trailers for transportation.
CONTACT US
MESSAGE
PRODUCT DESCRIPTION

3 Axle Lowbed Semi Trailer Advantages:

1.Premium Brand Components: Equipped with world-renowned FUWA axles and Triangle tires, ensuring high durability, load-bearing stability, and easy maintenance with globally available spare parts.

2.High-Strength Structure: The main beam is constructed from Q345B high-tensile manganese steel using submerged arc welding technology, providing superior resistance to bending and deformation under heavy loads.

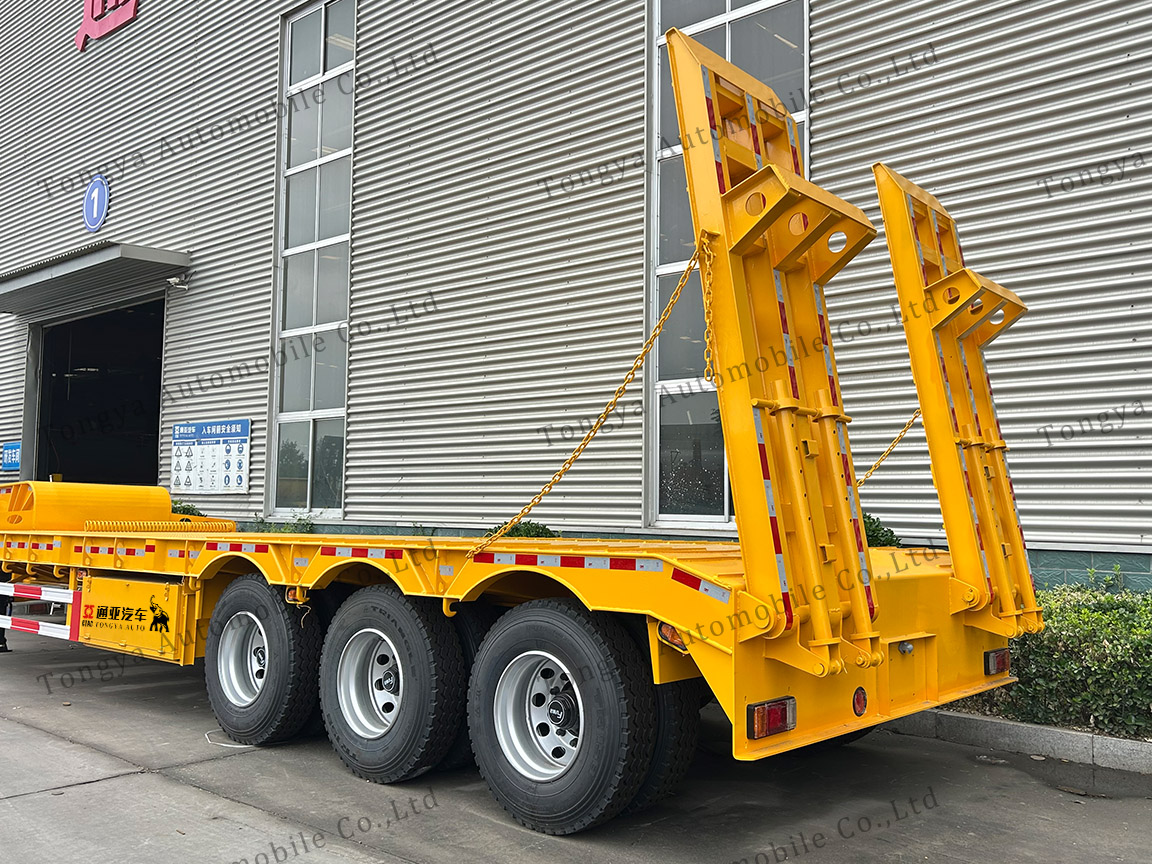

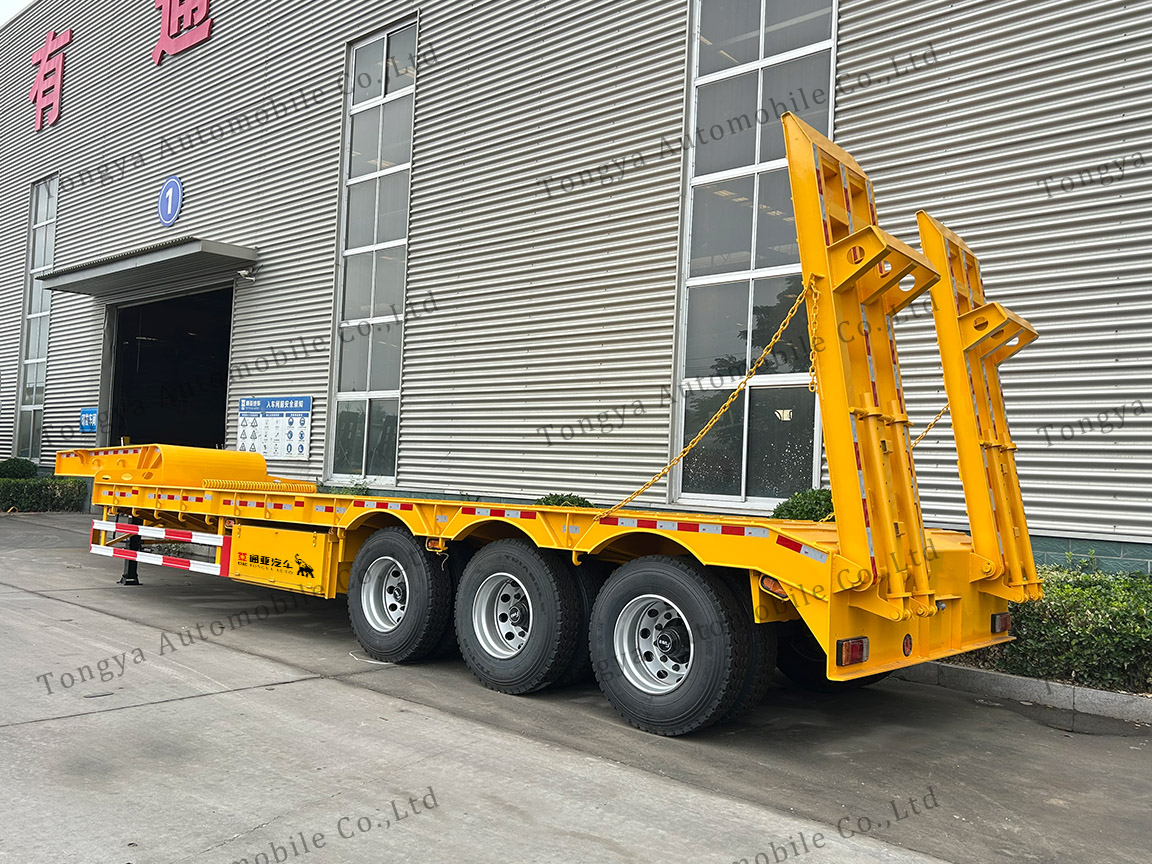

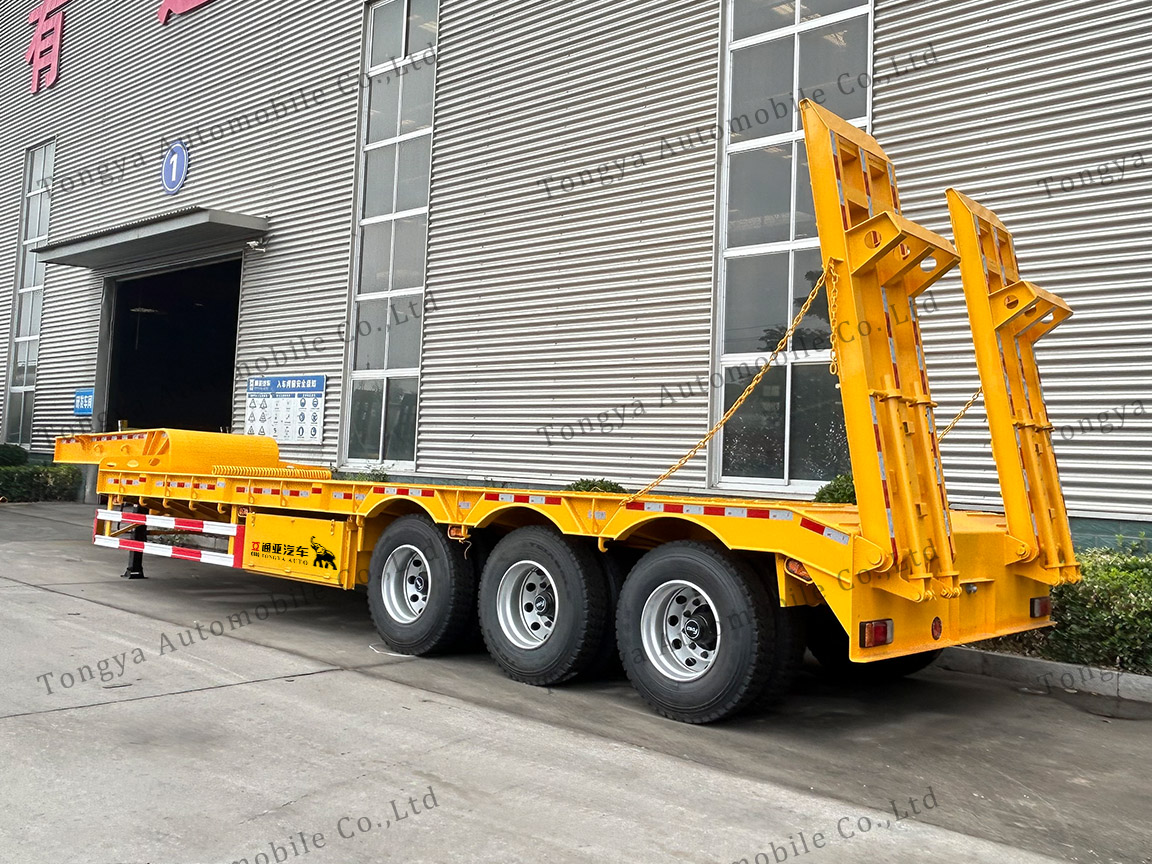

3.Optimized Loading Design: Features a low center of gravity for maximum stability during transport. The reinforced mechanical ramps with heavy-duty springs make the loading and unloading of excavators, dozers, and other heavy machinery safe and efficient.

4.Anti-Corrosion Treatment: The entire chassis undergoes professional shot blasting and a multi-layer painting process, ensuring the trailer withstands harsh weather and road conditions in international markets.


3 Axle Lowbed Semi Trailer Specification:

Specification
Weight:Tare Weight9T
Loading capacity60 T
Total weight 69T
Dimensions:Outside dimension10000*2500*1550 mm (The final dimensions depend on the final design drawings)
Frame:Design/welding technologyHeavy duty and extra durability designed;welding by automatic Submerged-Arc processes.
Main beamOpting for high strength Q345B steel, 500mm deep welded I-section main beams Top Flange thickness 16mm, width 140mm; Bottom Flange thickness 18mm, width 140mm.Middle Flange thickness 10mm;
Cross beamHeavy duty Special U steel
Side beam200mm high I beam
Floor4 mm thickness chequer plate
Rear ladder (ramps)Without
OEM parts: 　　　Axle3 FUWA brand (Chinese best brand)
King Pin2.00’’/3.5’’ bolting king pin, JOST brand
SuspensionHeavy duty undermount suspension with equalizers, American design (high-strength type)
Steel Spring10pcs leaf spring, 13mm thickness, 90mm width
Landing legsJOST brand, manual operation landing legs with sand shoe

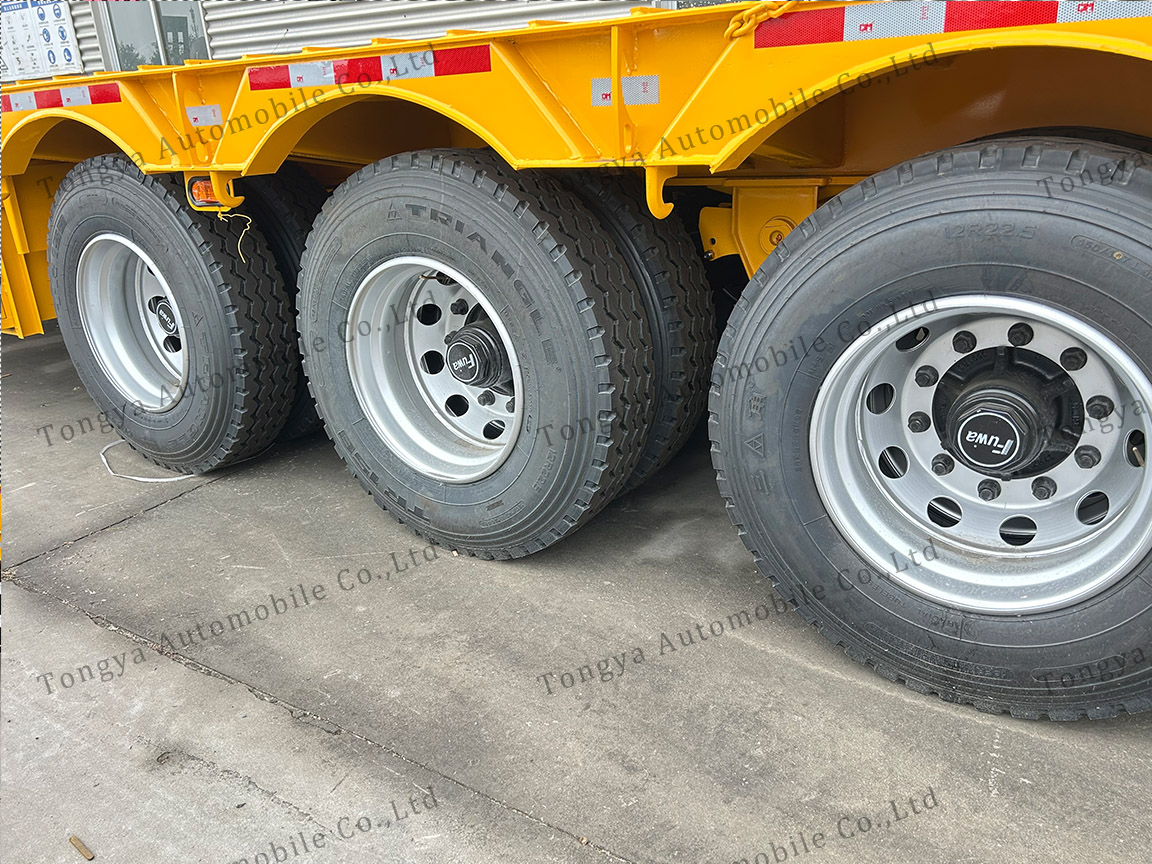

Tire specs12.00R24, Triangle brand (Chinese famous brand)
Number of wheel9pieces(including one spare wheel)
Brake systemWABCO relay valve; Four double and two single brake chamber; Two units of ISO standard coppery air-connector.　
ABS systemWithout（Can be choose freely,450 USD/set）
Electrical:One unit of 24V 7-pin ISO 1185 socket; LED lights
　　　Miscellaneous:Paintingcolor advised by client
MarkingStandard
Side GuardStandard
Spare Tire CarriersTwo set of heavy duty spare wheel carriers
Tools boxOne piece (1. 0*0. 5*0. 5m), under the goose neck(with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar)
Note: All the details not mentioned will design as the final confirmation with the customer

For more product details,please contact us.We will offer you the most compectitive pricing.

factory

Factory

Canton

Exhibition

workshop

Workshop
FAQ

Q1、Why choose Tongya Automobile Co.,Ltd ?

1,China leading manufacturer of semi trailer and tanker trailer since 1982,China famous brand, Annual output of 10,000 units different kinds of semi trailers

2,More than 19 years export experience since 2005, Fully understand different local specs and standard from more than 50 different countries

3, Customized product is available, with modern and advance production line with all kinds of production equipment and production process

4, Professional technical team with 24 fully experienced engineers


Q2、What can you buy from Tongya Automobile Co.,Ltd?
Bulk Cement Tanker Semi trailer , Fuel Tanker Semi Trailer, Flatbed Semi Trailer, Skeleton Semi Trailer, Lowbed Semi Trailer, Dump Trailer,dolly trailer ,Fence Semi-trailer,Side Wall Semi-trailer, full trailer, Flour tanker trailer, ISO bulk tanker container etc.


Q3、Can I visit your factory?
Of course,welcome to visit our factory.we are located in Liangshan, Shandong Province, a face-to-face conversation can serve you better.


Q4、How about your delivery time?
10-30 days after receive the deposit, depend on the order quantity.


Q5、What payment terms do you use?
 T/T and L/C payment are acceptable.


Q6、Which incoterms 2010 terms can we work?

Normally we accept FOB, CFR, CIF.



Q7、Is it available to print our own brand on the vehicle?
Yes, we accept to do OEM for well known distributors and dealers.



Q8、What information should I let you know if I want to get a quotation?
First, please let us know which kind of trailers you want
Second, Please let us know what kind of cargo that you will load with our trailers? Loading capacity? road condition?
Third, what trailer size is OK for you, and do you want customized product
Four, your truck specs, like 2.0 or 3.5 inch fifth wheel ? fifth wheel height? 6*4 or 4*2 truck will use ?
Five, order quantity, destination port
The more information you will provide, the more accurate and competitive price we can offer.
