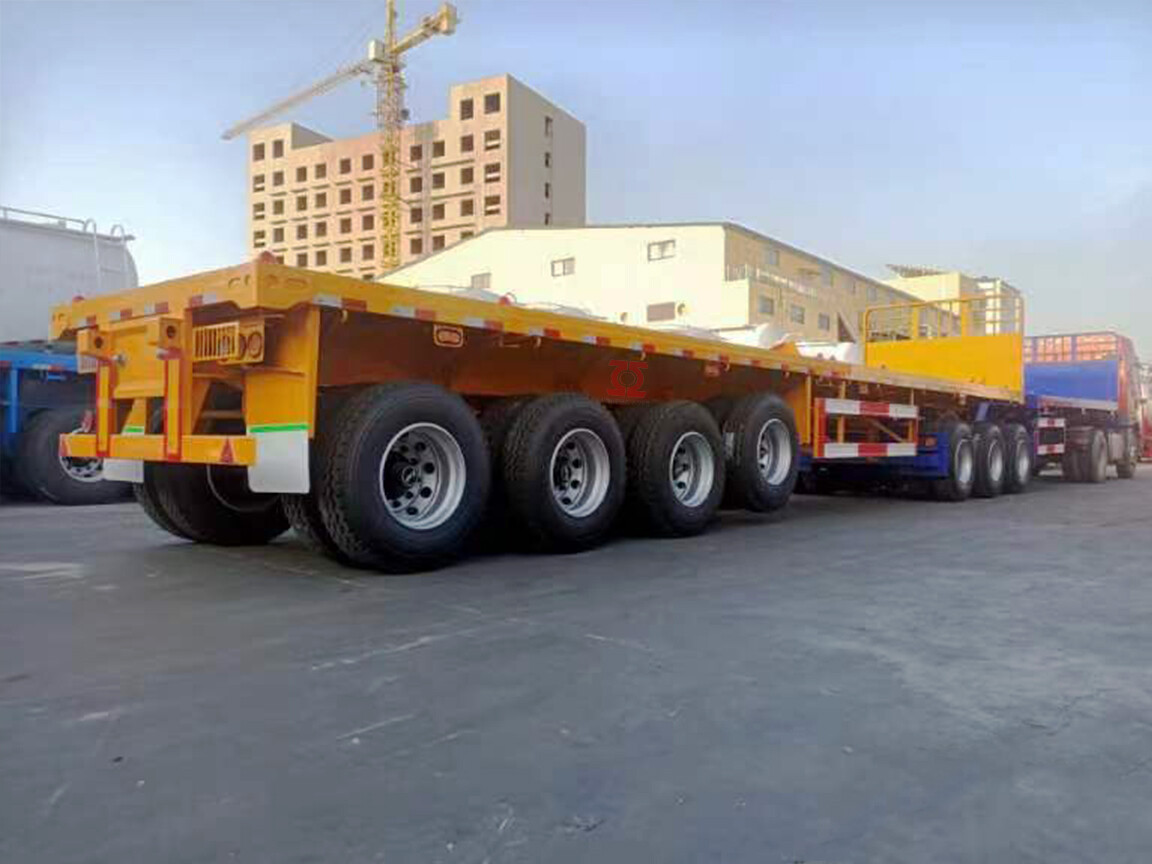

SUPERLINK FLAT BED SEMI TRAILER

1.Made of high-strength steel, it has a strong load-bearing capacity and will not be structurally deformed or damaged.
2.The flatbed is designed to be evenly stressed, which extends the life of the vehicle.
3.Easy loading and unloading of goods, saving labor costs.
PRODUCT DESCRIPTION

Specifications:

Front A semi trailer configuration
Tare WeightAbout 5.5T
Dimension6000mm*2500mm*1500mm  (final dimension should be designed according to the final drawing picture)
Loading Capacity (T)20T
Axle13 T/ FUWA Brand  three pieces
Rim9.0-22.5   thirteen pieces
Tire  12R22.5  Triangle brand  thirteen pieces  (with one spare tire )
SuspensionMechanical suspension
Spring leaf90(W)mm*13(Thickness)mm*10
Fifth wheel50# (2.0inch)
King pin2.00inch  JOST brand
Support legJOST A300C one pair
Main beamHeight: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345
Side beam16mm channel steel  ( Material is Q235steel ).
Platform3mm
Brake chamberWABCO RE 6 relay valve; T30/30 Spring brake chamber(special for export trailer); Two pieces of 45L air tanks
ABSOptional
Twist LocksFour pieces, up and down type, special for exporting.
Behind B semi trailer configuration
Tare WeightAbout 6.5T
Dimension12500mm*2500mm*1500mm  (final dimension should be designed according to the final drawing picture)
Loading Capacity (T)40T
Axle13 T/ FUWA Brand   four  pieces
Rim9.0*22.5    seventeen pieces
Tire  12R22.5  triangle brand  seventeen pieces(with one spare tire )
SuspensionMechanical suspension
Spring leaf90(W)mm*13(Thickness)mm*10
King pin50# (2.0inch) 一个
Support legJOST A300C
Main beamHeight: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345Steel .
Side beam16mm channel steel  ( Material is Q235steel ).
Platform2.3mm
Brake chamberWABCO RE 6 relay valve; T30/30 Spring brake chamber(special for export trailer); Two pieces of 45L air tanks
ABSwithout
Twist Locks12 pieces, up and down type, special for exporting.
Same configuration
LightLED light
Voltage24V
Receptacle7 ways (7 wire harness)
Tool boxOne piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Delivery time15 workdays

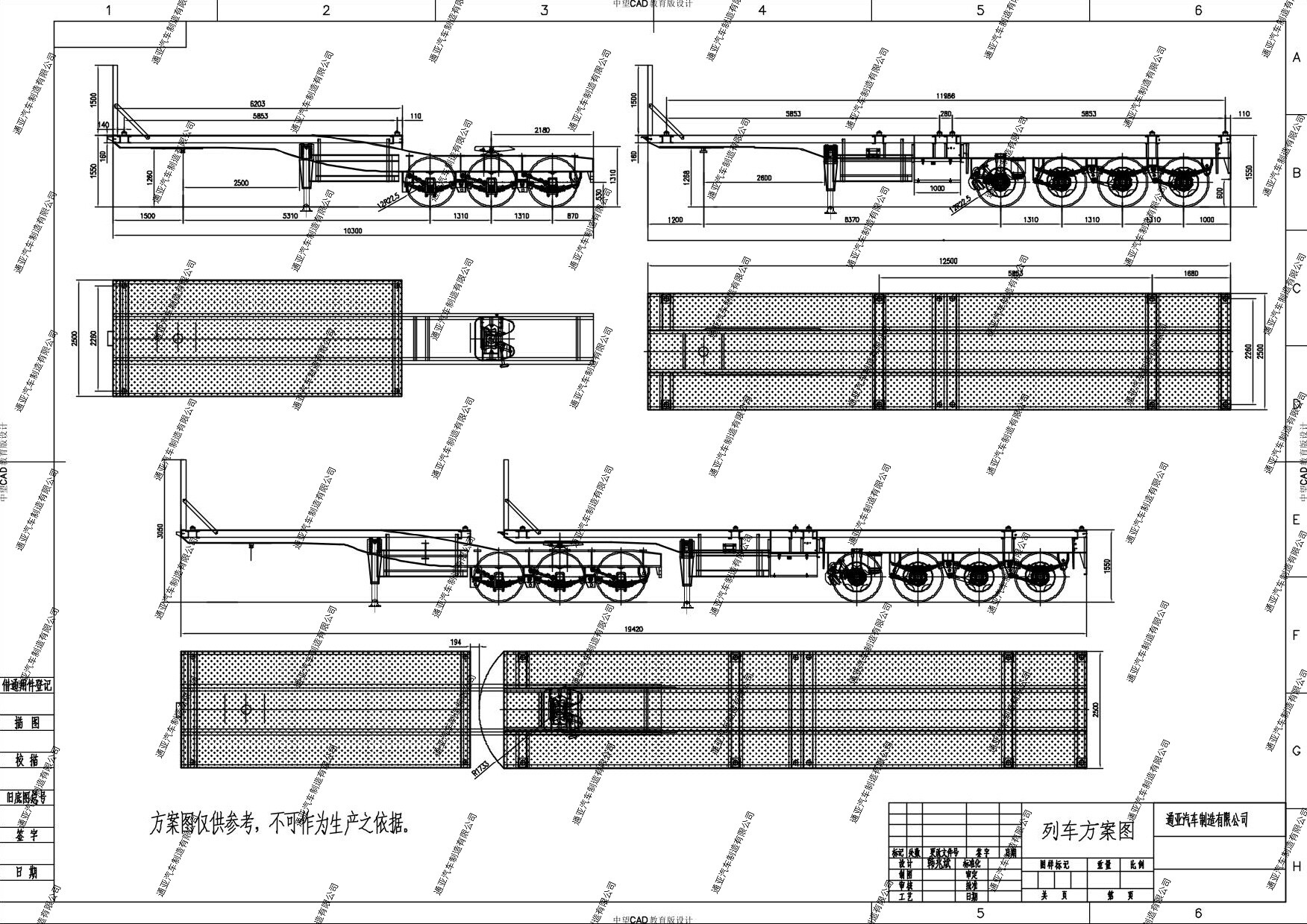

SUPERLINK FLAT BED SEMI TRAILER Design Drawing:

Customize the vehicle to your needs, please contact us for details.

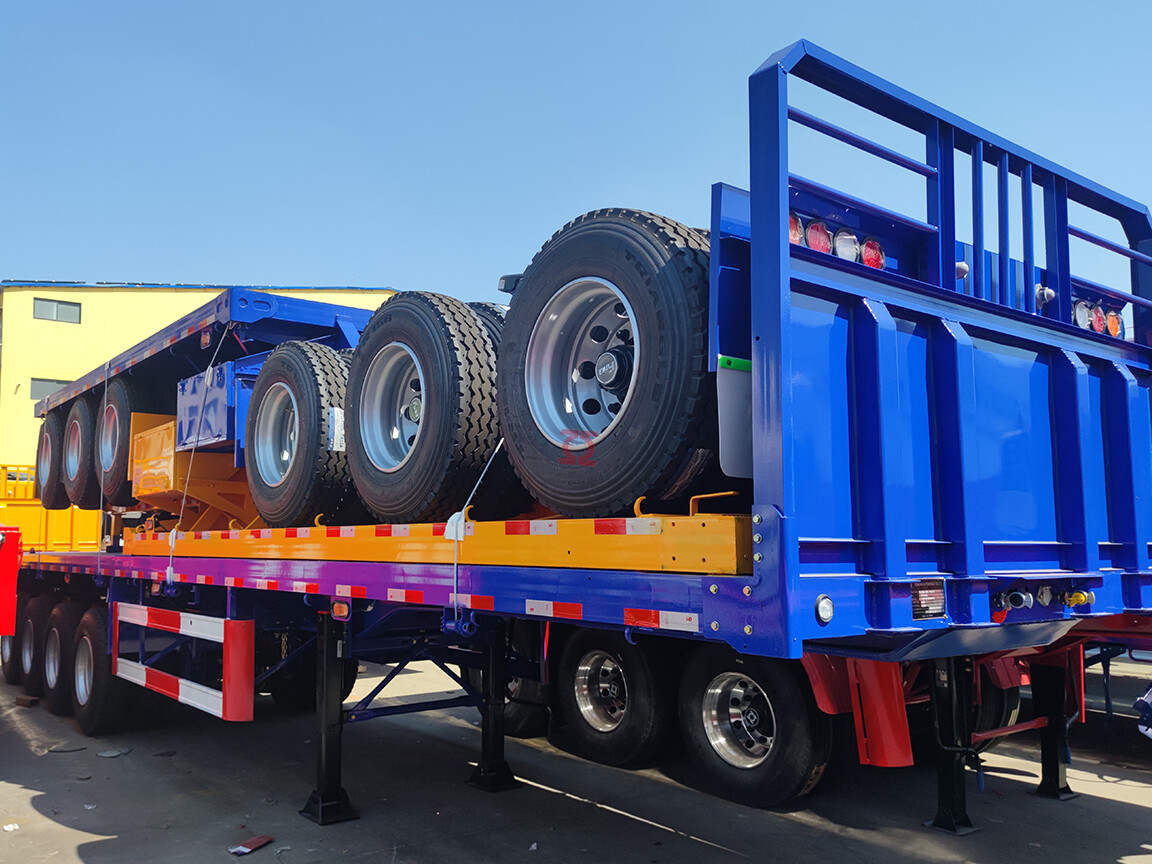

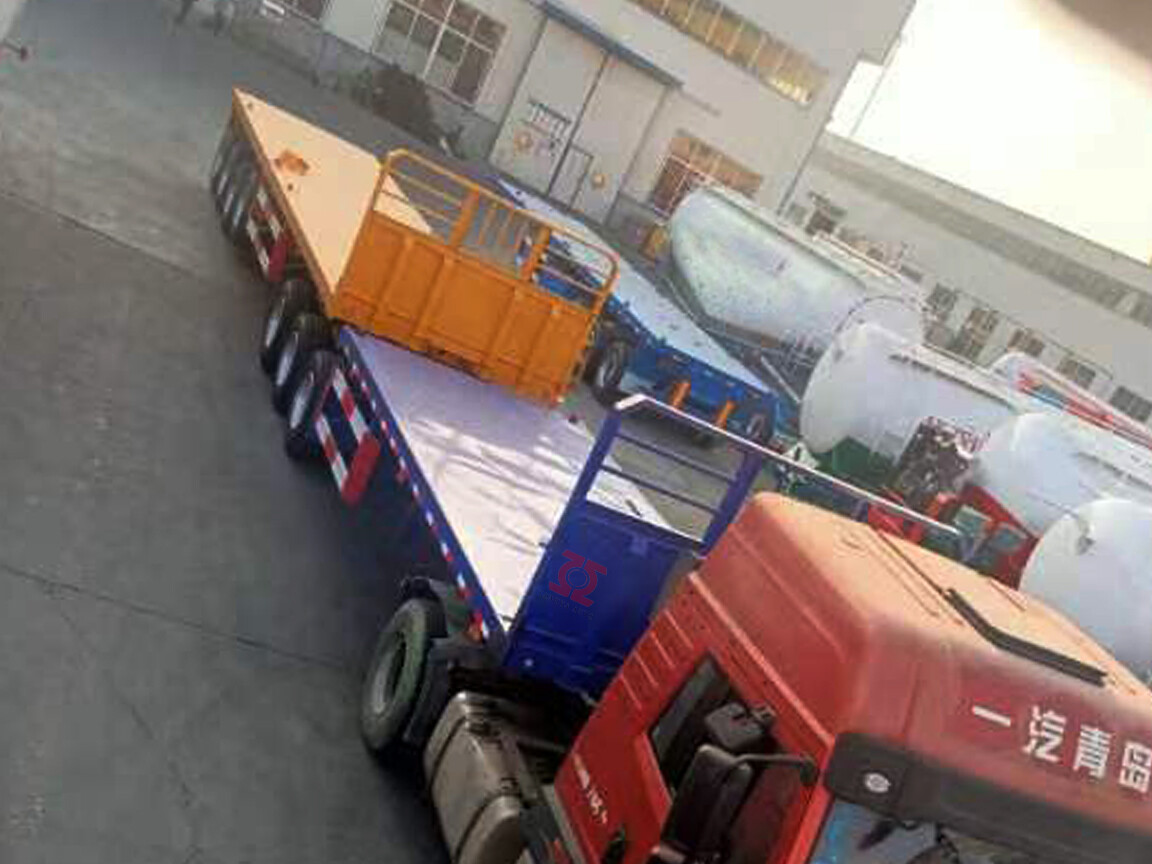

More picture:



FAQ

Q1、Why choose Tongya Automobile Co.,Ltd ?

1,China leading manufacturer of semi trailer and tanker trailer since 1982,China famous brand, Annual output of 10,000 units different kinds of semi trailers

2,More than 19 years export experience since 2005, Fully understand different local specs and standard from more than 50 different countries

3, Customized product is available, with modern and advance production line with all kinds of production equipment and production process

4, Professional technical team with 24 fully experienced engineers


Q2、What can you buy from Tongya Automobile Co.,Ltd?
Bulk Cement Tanker Semi trailer , Fuel Tanker Semi Trailer, Flatbed Semi Trailer, Skeleton Semi Trailer, Lowbed Semi Trailer, Dump Trailer,dolly trailer ,Fence Semi-trailer,Side Wall Semi-trailer, full trailer, Flour tanker trailer, ISO bulk tanker container etc.



Q3、Can I visit your factory?
Of course,welcome to visit our factory.we are located in Liangshan, Shandong Province, a face-to-face conversation can serve you better.



Q4、How about your delivery time?
10-30 days after receive the deposit, depend on the order quantity.



Q5、What payment terms do you use?
 T/T and L/C payment are acceptable.



Q6、Which incoterms 2010 terms can we work?

Normally we accept FOB, CFR, CIF.



Q7、Is it available to print our own brand on the vehicle?
Yes, we accept to do OEM for well known distributors and dealers.



Q8、What information should I let you know if I want to get a quotation?
First, please let us know which kind of trailers you want
Second, Please let us know what kind of cargo that you will load with our trailers? Loading capacity? road condition?
Third, what trailer size is OK for you, and do you want customized product
Four, your truck specs, like 2.0 or 3.5 inch fifth wheel ? fifth wheel height? 6*4 or 4*2 truck will use ?
Five, order quantity, destination port
The more information you will provide, the more accurate and competitive price we can offer.
