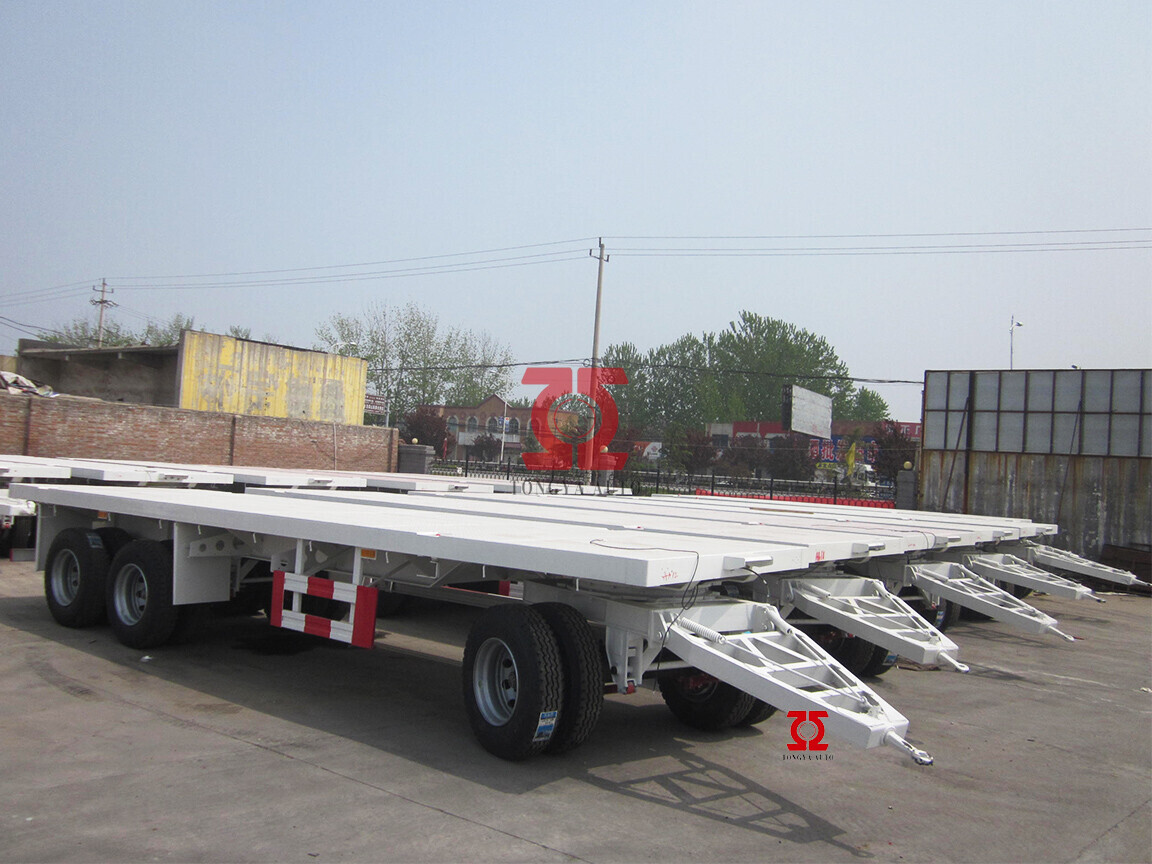

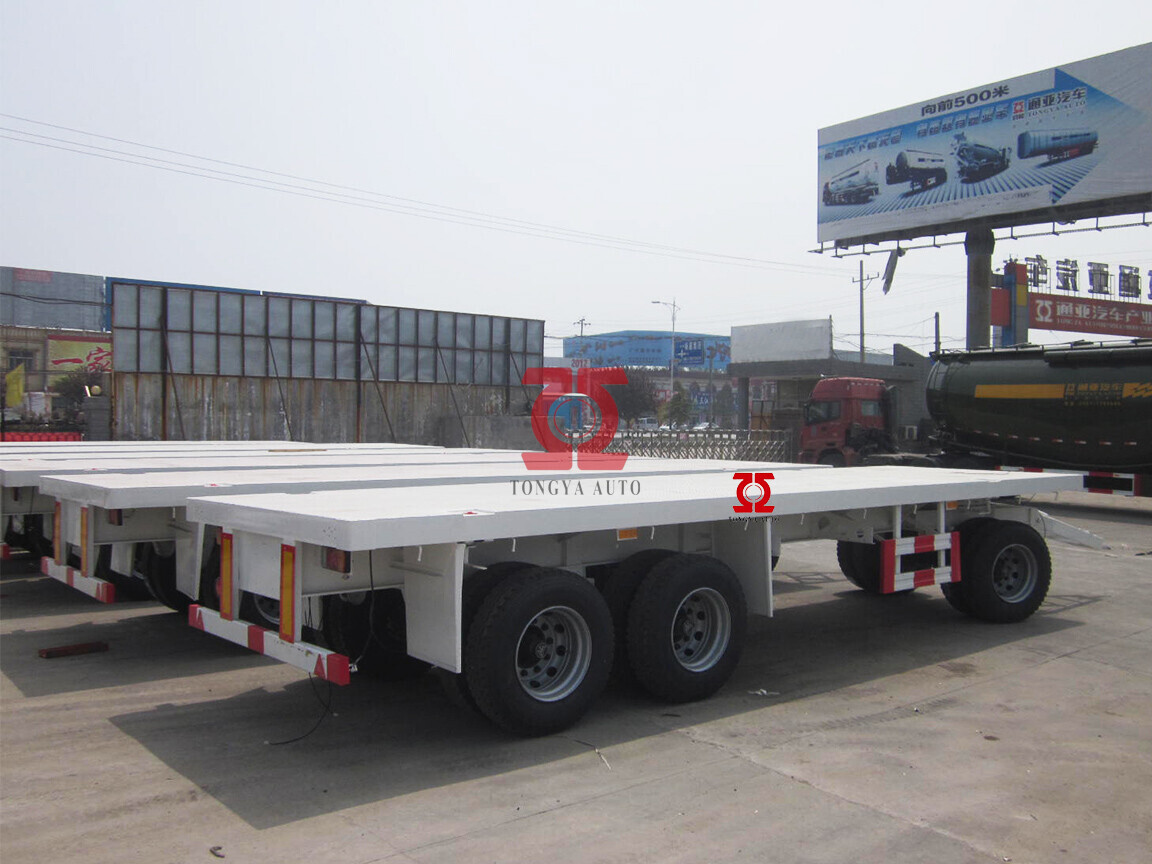

Flat Bed Full Trailer

Full trailer, also known as tractor trailer. Mainly used in ships, ports and routes, roads, hubs, Bridges, tunnels, multi-modal transport logistics system matching.
1. exclusively in multi-modal transport, for all kinds of container transportation and other. Can be long-term repeated use, with enough strength.
2, the whole trailer transport, can a tractor (tractor truck) checked 2-3 full trailer, or while waiting in line for long distance delivery van tractor without waiting for at the same time, do not need to change from the inside out, the goods transfer to reduce time and cost.
CONTACT US
MESSAGE
PRODUCT DESCRIPTION
Spscifications:
TypeFlat Bed Full Trailer
UsageUsing for loading container, bagged cement or other cargo
Shipping TermsBulk cargo carrier or RO-RO
Deliver Time15 workdays
Weight:

Tare weightAbout 6.8T

PayloadLoading 40T
Specification:

Outside dimension(L*W*H)10000mm*2500mm*1500mm

Axle No./weight3*13T,BPW brand

SuspensionLeaf spring suspension,10pcs*90mm*13mmHeavy duty tri-axle suspension with equalizers, American design (high-strength type)

TurntableWith

Draw barLength is 1.5m

Tractor hookDN50
Wheel:

Tire12R22.5,13pcs,TRIANGLE brand(including one spare tire)

Rim9.0*22.5,13pcs(including one spare tire)

Spare tire carrier2 spare tire carriers
Frame:

Main beam500mm height“Ⅰ”beam;top flange thickness 14mm,middle flange thickness 8mm,down flange thickness 16mm

Side beam16#channel steel

Platform3mm diamond platform
Twist locks:4pcs
Brake:

Emergency valveWABCO brand

Brake chamber6 double chambers

ABS systemWithout(Can be chosen freely)
Electrical:

Voltage24V

Receptacle7 ways (7 wire harness)
Light color:With LED lights

Front marker lightFront corner marker lam is red,reflector is white

Side marker lightOrange

Rear marker lightRed

Turn single lightOrange
Miscellaneous:

PaintingSand blasting to clean rust before painting;spray powder and paint

MarkingStandard

Side guardStandard

Tools boxOne piece
Color:

According to the requirements of the customer
FAQ

Q1、Why choose Tongya Automobile Co.,Ltd ?

1,China leading manufacturer of semi trailer and tanker trailer since 1982,China famous brand, Annual output of 10,000 units different kinds of semi trailers

2,More than 19 years export experience since 2005, Fully understand different local specs and standard from more than 50 different countries

3, Customized product is available, with modern and advance production line with all kinds of production equipment and production process

4, Professional technical team with 24 fully experienced engineers


Q2、What can you buy from Tongya Automobile Co.,Ltd?
Bulk Cement Tanker Semi trailer , Fuel Tanker Semi Trailer, Flatbed Semi Trailer, Skeleton Semi Trailer, Lowbed Semi Trailer, Dump Trailer,dolly trailer ,Fence Semi-trailer,Side Wall Semi-trailer, full trailer, Flour tanker trailer, ISO bulk tanker container etc.


Q3、Can I visit your factory?
Of course,welcome to visit our factory.we are located in Liangshan, Shandong Province, a face-to-face conversation can serve you better.


Q4、How about your delivery time?
10-30 days after receive the deposit, depend on the order quantity.


Q5、What payment terms do you use?
 T/T and L/C payment are acceptable.


Q6、Which incoterms 2010 terms can we work?

Normally we accept FOB, CFR, CIF.



Q7、Is it available to print our own brand on the vehicle?
Yes, we accept to do OEM for well known distributors and dealers.



Q8、What information should I let you know if I want to get a quotation?
First, please let us know which kind of trailers you want
Second, Please let us know what kind of cargo that you will load with our trailers? Loading capacity? road condition?
Third, what trailer size is OK for you, and do you want customized product
Four, your truck specs, like 2.0 or 3.5 inch fifth wheel ? fifth wheel height? 6*4 or 4*2 truck will use ?
Five, order quantity, destination port
The more information you will provide, the more accurate and competitive price we can offer.
