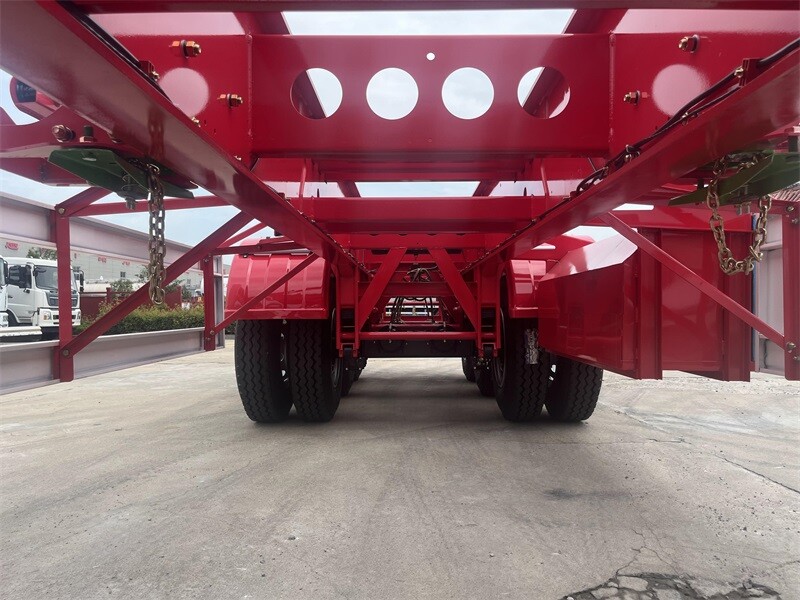

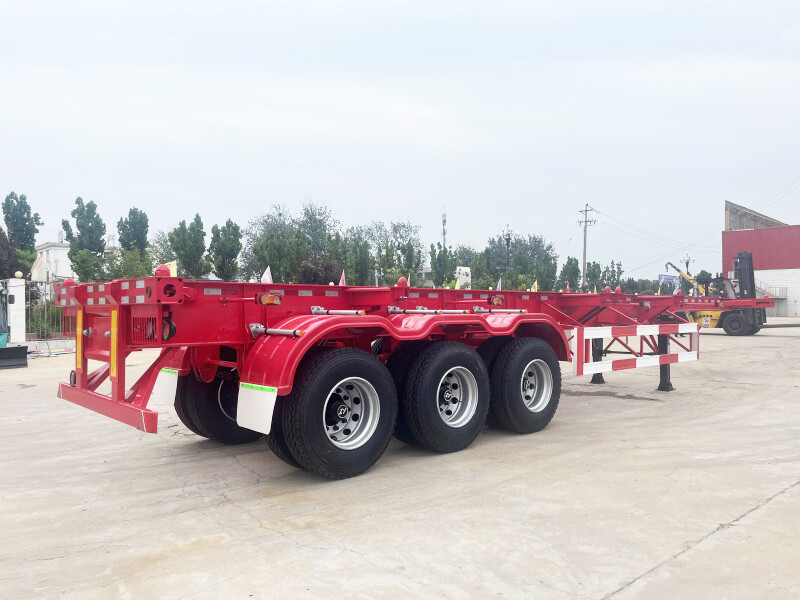

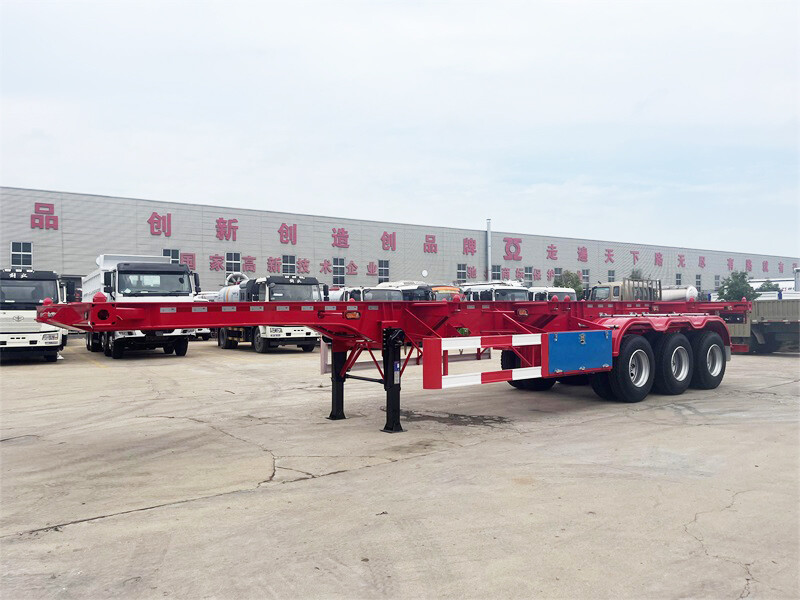

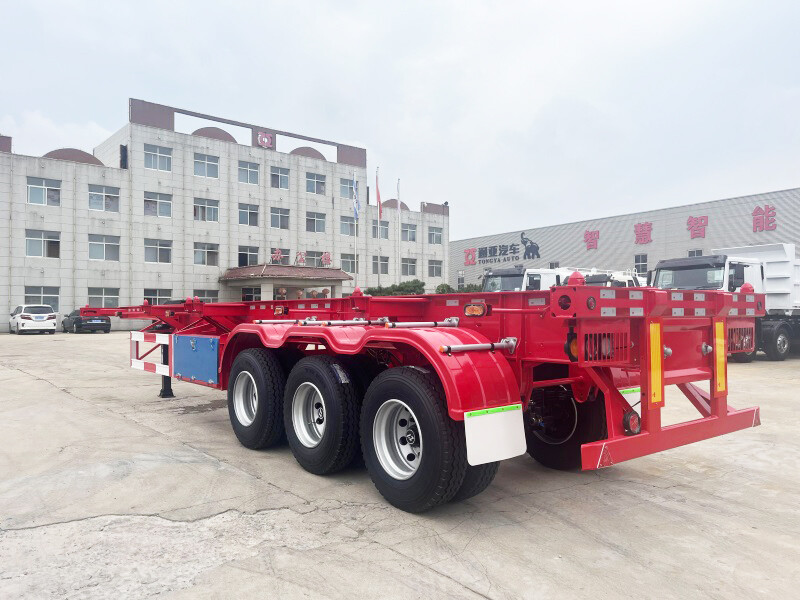

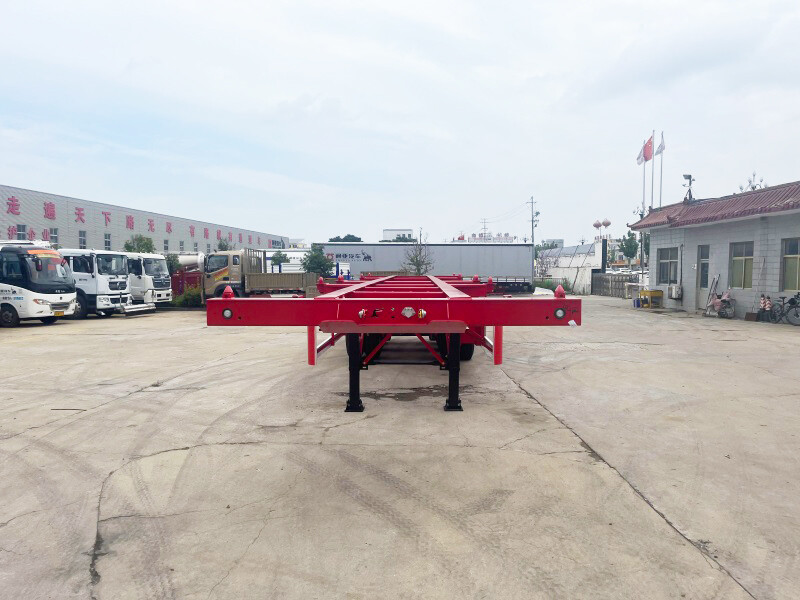

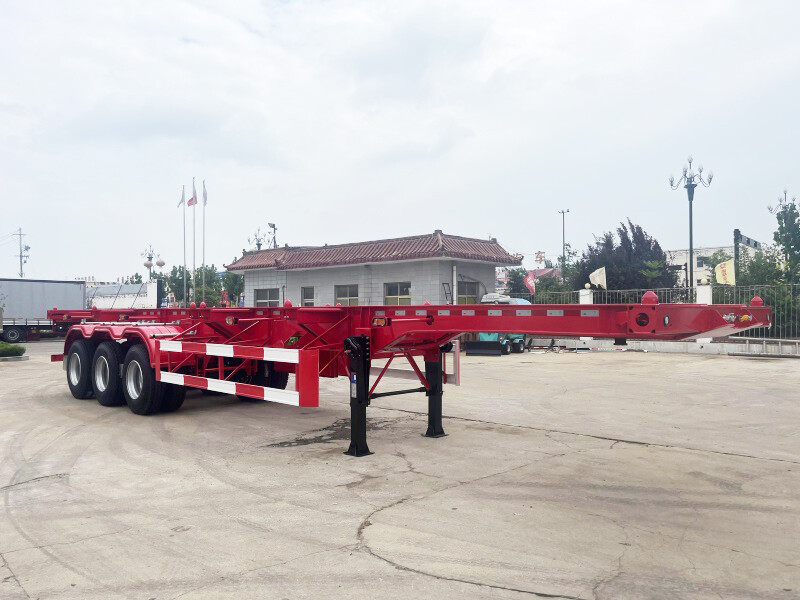

40ft Skeleton Semi Trailer

TONGYA skeletal trailer can be configured for specific container combinations, minimizing the unladen weight. Can be configured individually for: 20h, 30', 40', 45', 2x20' or any combination of all of these containers.
The overall structure of the skeleton trailer is straight beam or gooseneck, it is mainly used in the logistics systems of ships, ports, routes, highways, transit stations, bridges, tunnels and multimodal transport.
If you have special needs for a skeleton semi-trailer with a gooseneck, we can design it for you according to your requirements.
PRODUCT DESCRIPTION

Tare WeightAbout 6.5tons
Outer side dimension (mm)12450*2490*1400
Loading Capacity(Ton)≦45T(40FT)

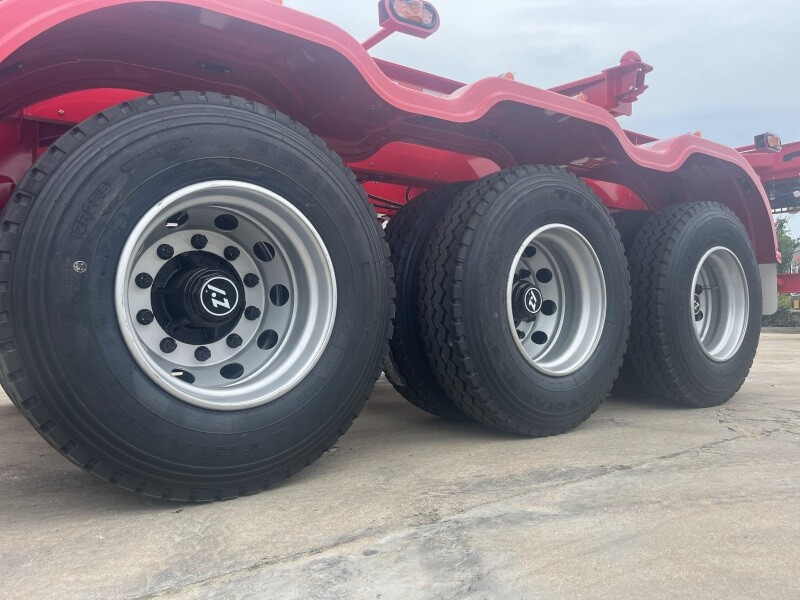

Axles13T/PER, Tongya or FUWA or BPW brand

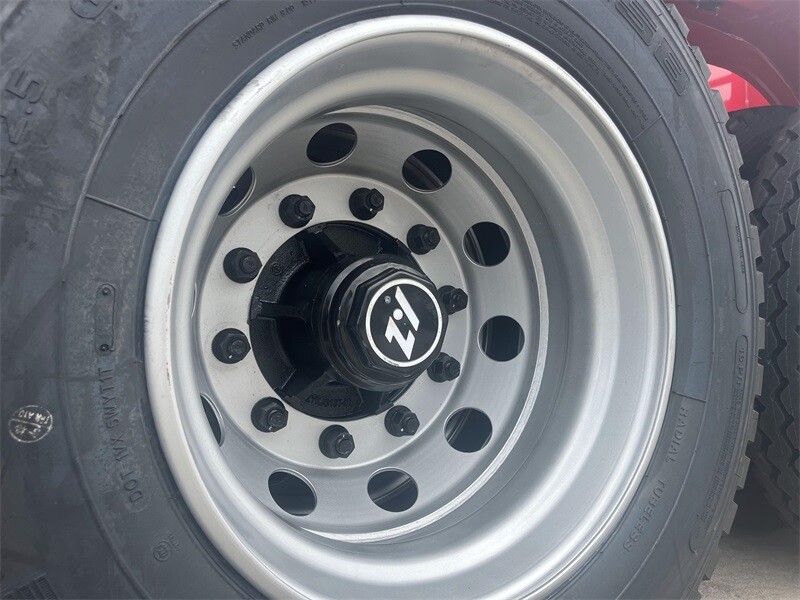

Tire12.00R22.5 or 315/80R22.5 Triangle brand
Rim9.00-22.5 China Brand

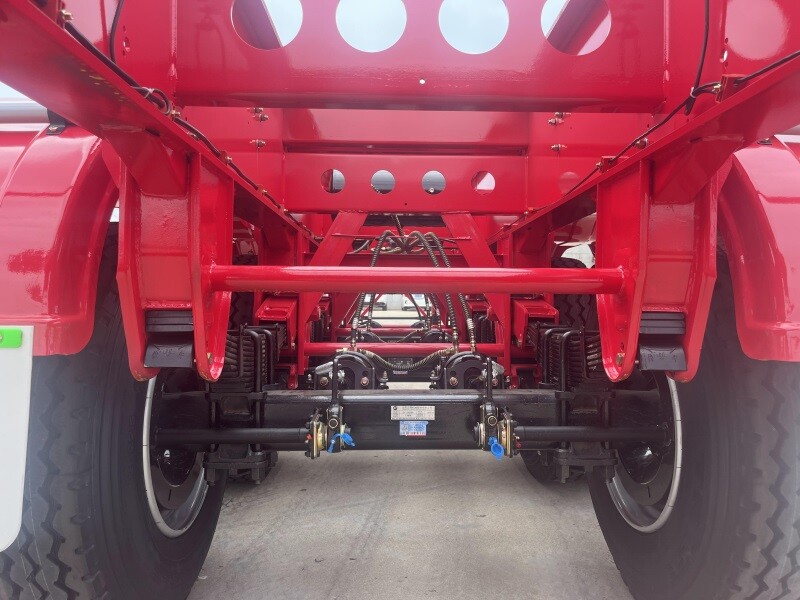

SuspensionMechanical suspension
Spring leaf90(W)mm*13(Thickness)mm 10 pcs leaf spring
King pinJOST brand 2.0 or 3.5

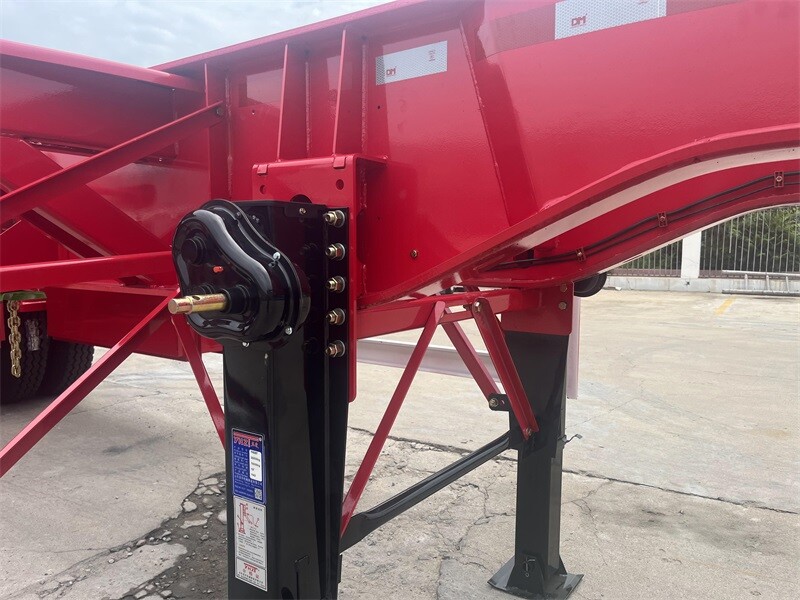

Landing legsJOST brand A300C

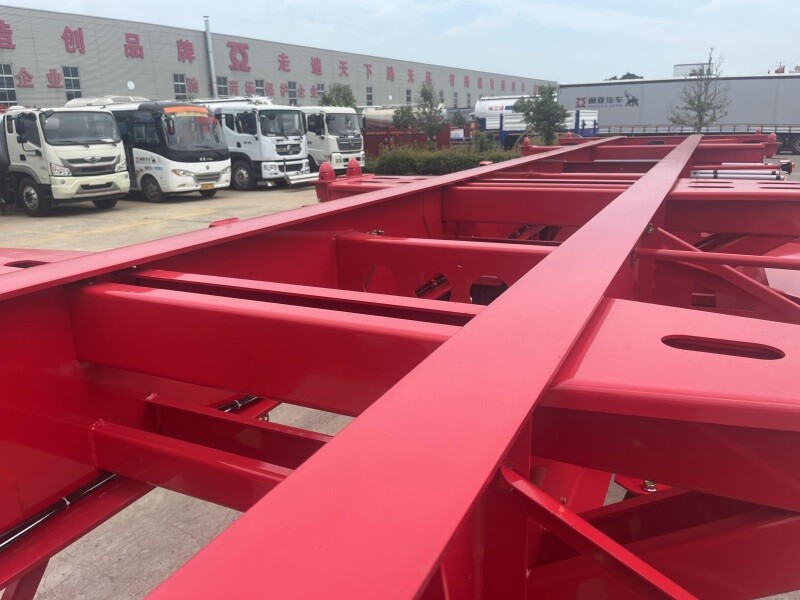

Main BeamHeight:500mm,upper plate is 14mm,middle plate is 8mm,down plate is 16mm;Material is Q345B Steel.
Brake chamberWABCO relay valve
Twist Locks12 units ISO twist locks
ABSOptional

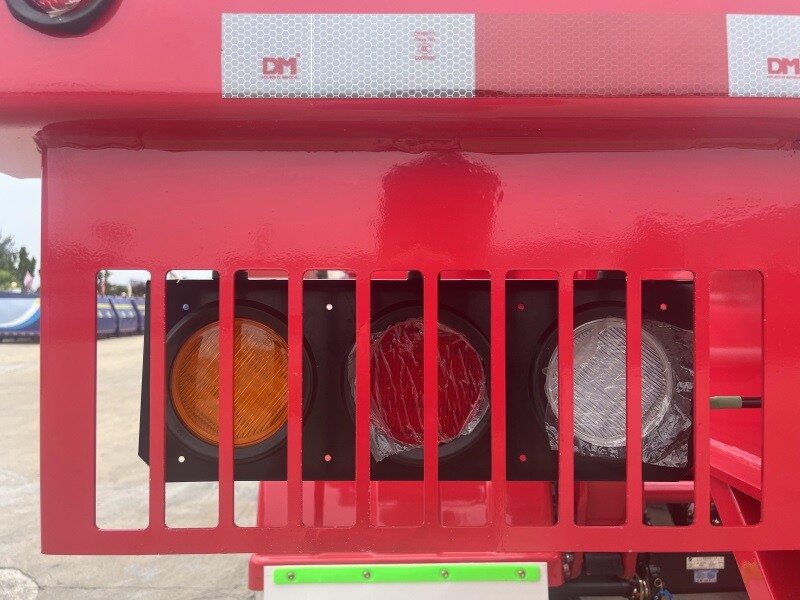

LightLED light
Voltage24V
ElectricalOne unit of 27V 7-pin ISO 1185 socket

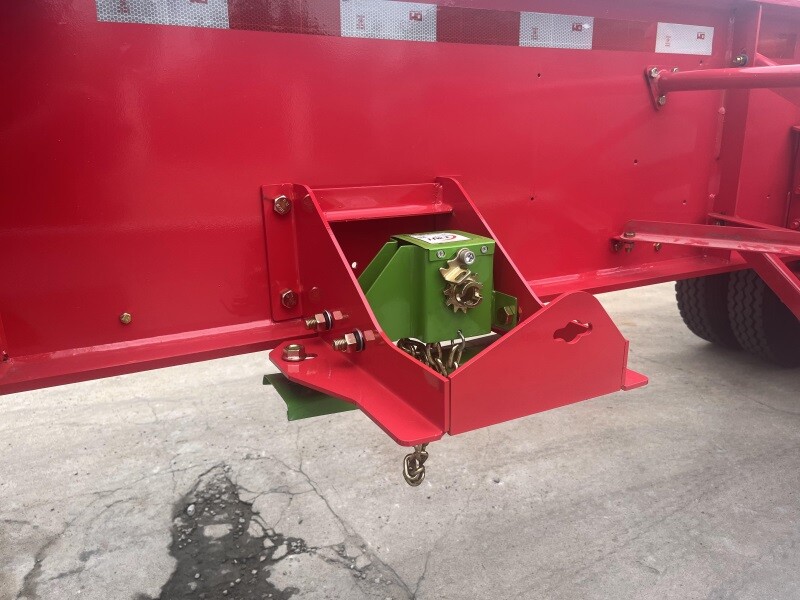

Tool boxOne piece, 1m*0.5m*0.5m (Size can be choose freely)
PaintingSand blasting before painting;one casts of primer,anti-corrosion;two coats of finish painting;color advised by client.
FAQ

Q1、Why choose Tongya Automobile Co.,Ltd ?

1,China leading manufacturer of semi trailer and tanker trailer since 1982,China famous brand, Annual output of 10,000 units different kinds of semi trailers

2,More than 19 years export experience since 2005, Fully understand different local specs and standard from more than 50 different countries

3, Customized product is available, with modern and advance production line with all kinds of production equipment and production process

4, Professional technical team with 24 fully experienced engineers


Q2、What can you buy from Tongya Automobile Co.,Ltd?
Bulk Cement Tanker Semi trailer , Fuel Tanker Semi Trailer, Flatbed Semi Trailer, Skeleton Semi Trailer, Lowbed Semi Trailer, Dump Trailer,dolly trailer ,Fence Semi-trailer,Side Wall Semi-trailer, full trailer, Flour tanker trailer, ISO bulk tanker container etc.



Q3、Can I visit your factory?
Of course,welcome to visit our factory.we are located in Liangshan, Shandong Province, a face-to-face conversation can serve you better.



Q4、How about your delivery time?
10-30 days after receive the deposit, depend on the order quantity.



Q5、What payment terms do you use?
 T/T and L/C payment are acceptable.



Q6、Which incoterms 2010 terms can we work?

Normally we accept FOB, CFR, CIF.



Q7、Is it available to print our own brand on the vehicle?
Yes, we accept to do OEM for well known distributors and dealers.



Q8、What information should I let you know if I want to get a quotation?
First, please let us know which kind of trailers you want
Second, Please let us know what kind of cargo that you will load with our trailers? Loading capacity? road condition?
Third, what trailer size is OK for you, and do you want customized product
Four, your truck specs, like 2.0 or 3.5 inch fifth wheel ? fifth wheel height? 6*4 or 4*2 truck will use ?
Five, order quantity, destination port
The more information you will provide, the more accurate and competitive price we can offer.
