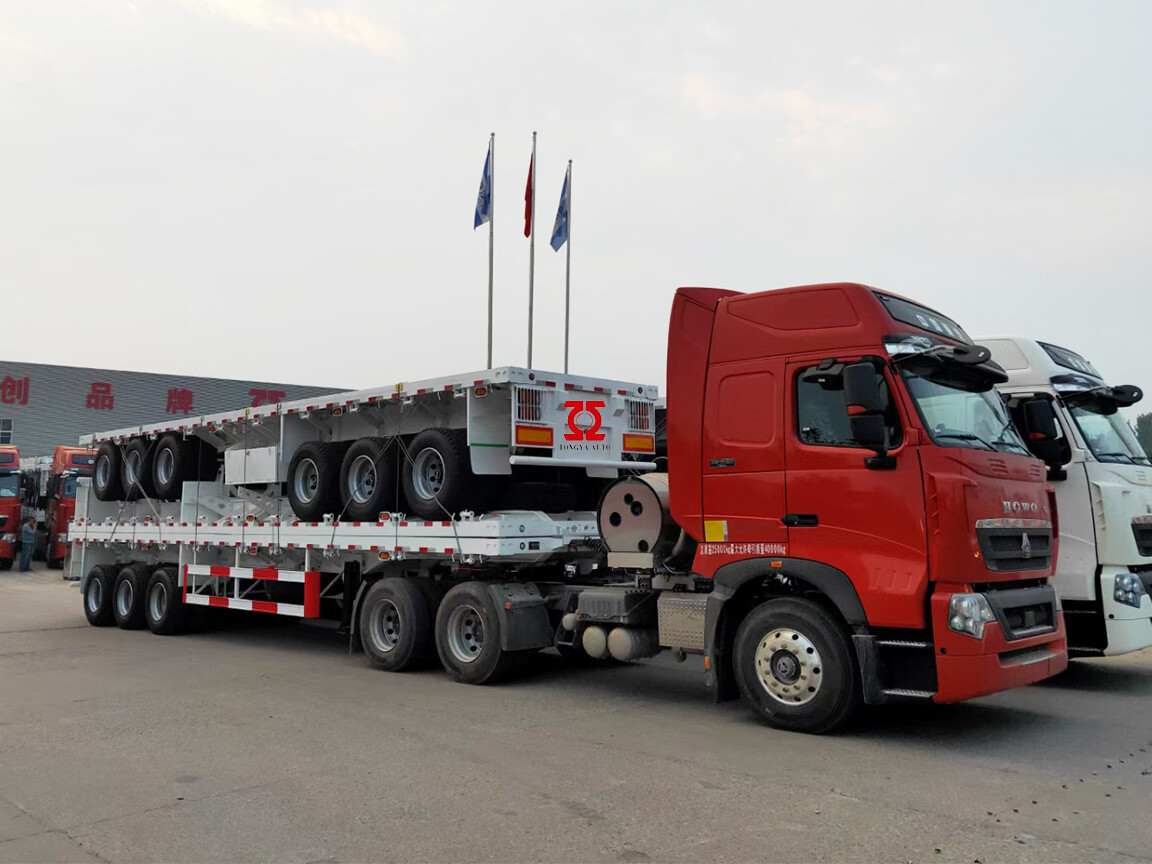

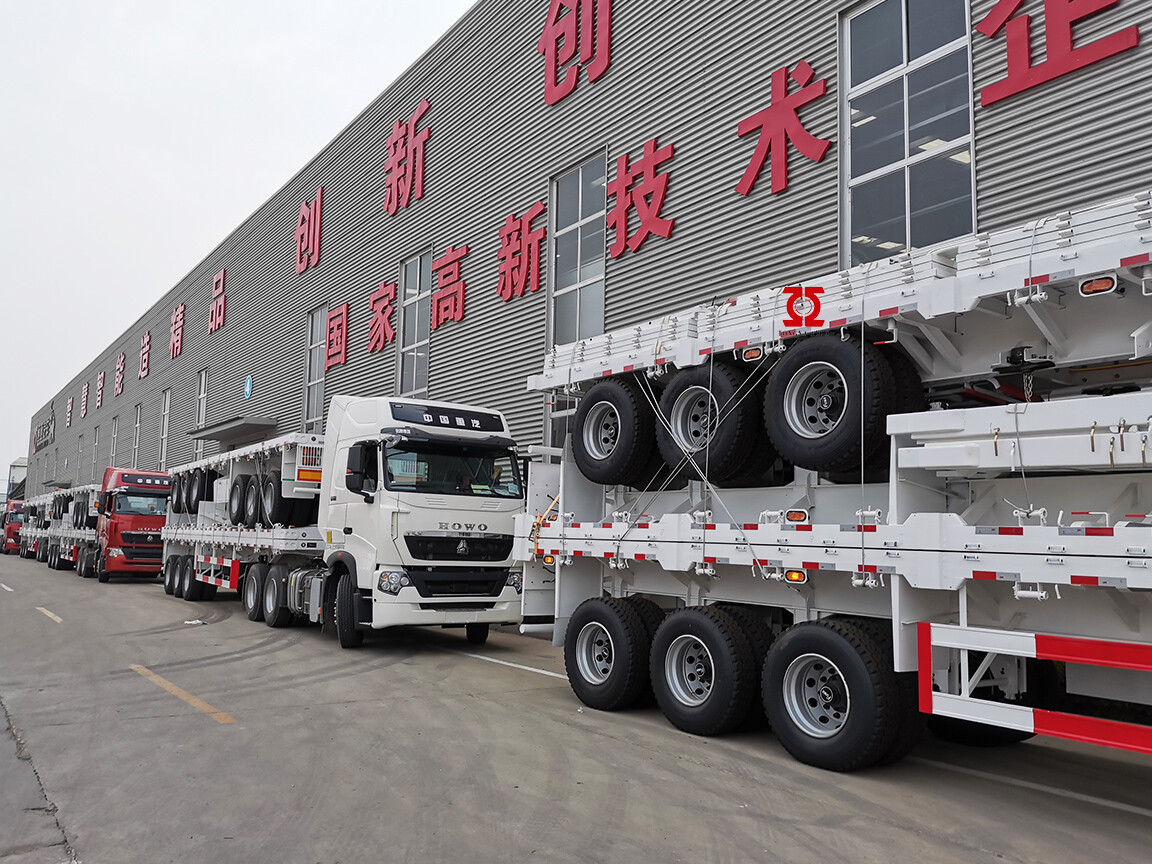

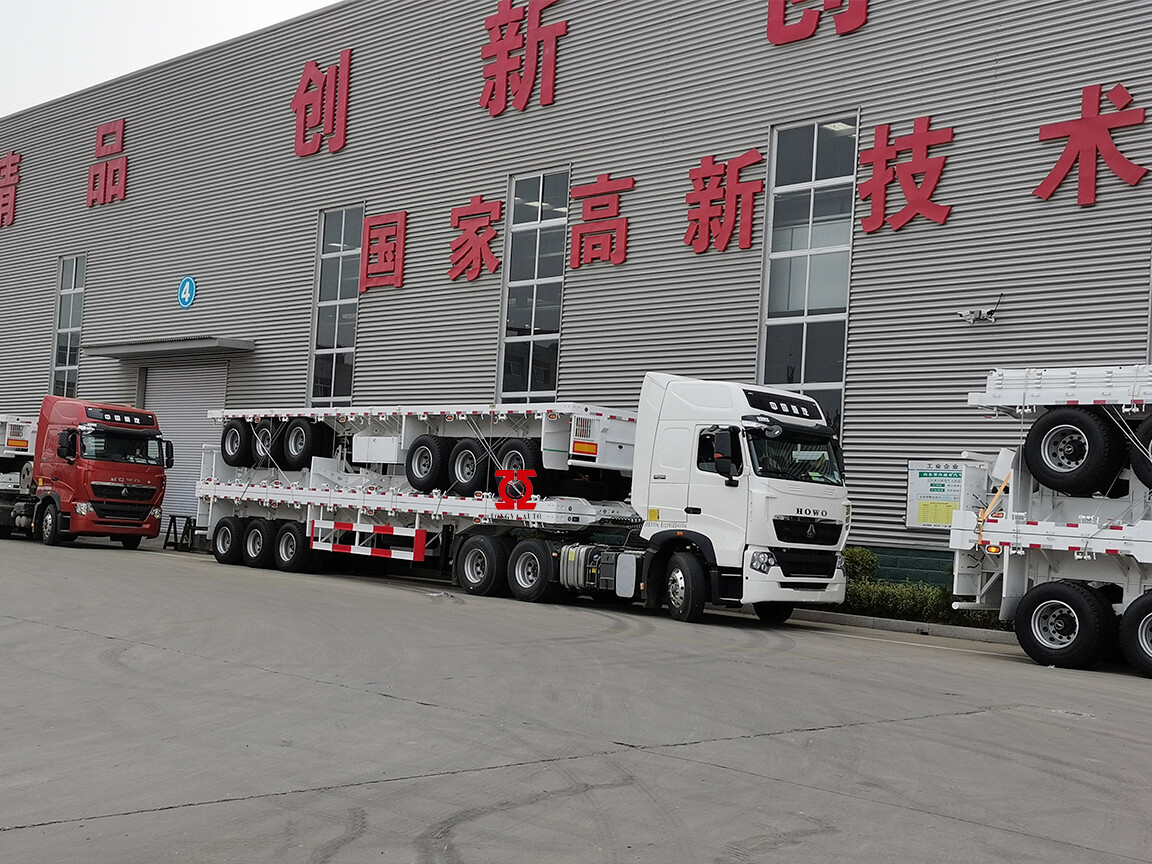

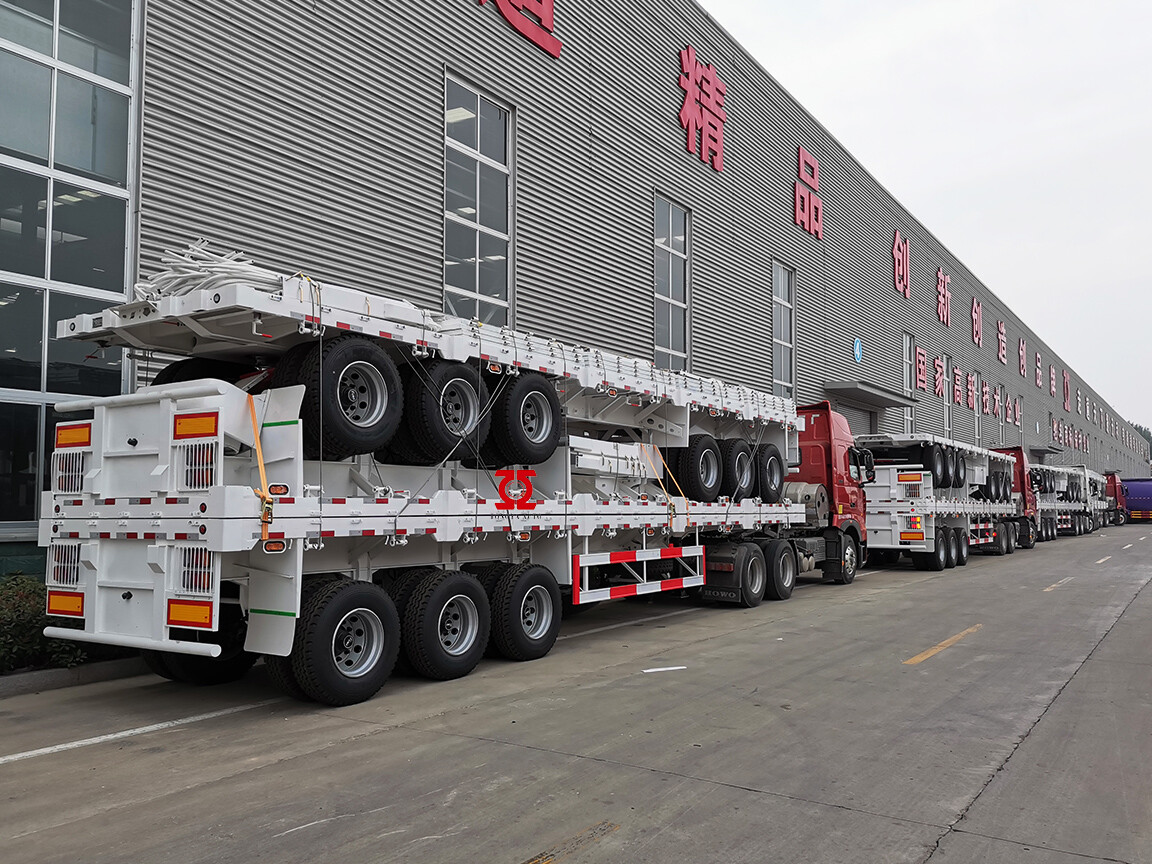

50T SIDE WALL SEMI TRAILER with TWIST LOCK

1、Many uses: use for transport container and also can installed side wall to transport any bulk cargo, high efficiency and cost saving,
2、Heavy capacity: the maximum payload is 50000kg, making it suitable for large-scale cargo transportation needs,
3、Available for customization: we are factory and support customization, including color and tire specification, axles and total dimension.
PRODUCT DESCRIPTION

Specification
Outside Dimension12500mm*2550mm*2100mm(the final dimension is according the final drawing picture)
Loading capacity50tons
Axle3 Axles Tongyada brand 13tons per axles
SuspensionMechanical suspension
Main beamHeight: 500mm, upper plate is 14mm, middle plate is 8mm,down plate is 16mm ; Q345 steel
Twist lock12pcs
Side wallMaterial:Q235 steel;Thickness:1.2mm Height: 600mm-800mm(optional)
Bottom platformThickness:3mm, patterned platform
Tire12R22.5 12pcs, brand can be optional
Rim9.0*22.5 12pcs, brand can be optional
Spring leaf90(W)mm*13(Thickness)mm*10 Layer
King pinJOST brand 2.0 or 3.5inch bolts type or Welding type
Landing gearJOST A300C Or standard 28T
Pneumatic Braking SystemWABCO RE 6 relay valve, Spring brake chamber; one piece of 45L air tanks
AccessoriesOne standard tool box; one spare wheel carrier;
PaintingSpray powder
Voltage24V
Receptacle7 ways
FAQ

Q1、Why choose Tongya Automobile Co.,Ltd ?

1,China leading manufacturer of semi trailer and tanker trailer since 1982,China famous brand, Annual output of 10,000 units different kinds of semi trailers

2,More than 19 years export experience since 2005, Fully understand different local specs and standard from more than 50 different countries

3, Customized product is available, with modern and advance production line with all kinds of production equipment and production process

4, Professional technical team with 24 fully experienced engineers


Q2、What can you buy from Tongya Automobile Co.,Ltd?
Bulk Cement Tanker Semi trailer , Fuel Tanker Semi Trailer, Flatbed Semi Trailer, Skeleton Semi Trailer, Lowbed Semi Trailer, Dump Trailer,dolly trailer ,Fence Semi-trailer,Side Wall Semi-trailer, full trailer, Flour tanker trailer, ISO bulk tanker container etc.



Q3、Can I visit your factory?
Of course,welcome to visit our factory.we are located in Liangshan, Shandong Province, a face-to-face conversation can serve you better.



Q4、How about your delivery time?
10-30 days after receive the deposit, depend on the order quantity.



Q5、What payment terms do you use?
 T/T and L/C payment are acceptable.



Q6、Which incoterms 2010 terms can we work?

Normally we accept FOB, CFR, CIF.



Q7、Is it available to print our own brand on the vehicle?
Yes, we accept to do OEM for well known distributors and dealers.



Q8、What information should I let you know if I want to get a quotation?
First, please let us know which kind of trailers you want
Second, Please let us know what kind of cargo that you will load with our trailers? Loading capacity? road condition?
Third, what trailer size is OK for you, and do you want customized product
Four, your truck specs, like 2.0 or 3.5 inch fifth wheel ? fifth wheel height? 6*4 or 4*2 truck will use ?
Five, order quantity, destination port
The more information you will provide, the more accurate and competitive price we can offer.
