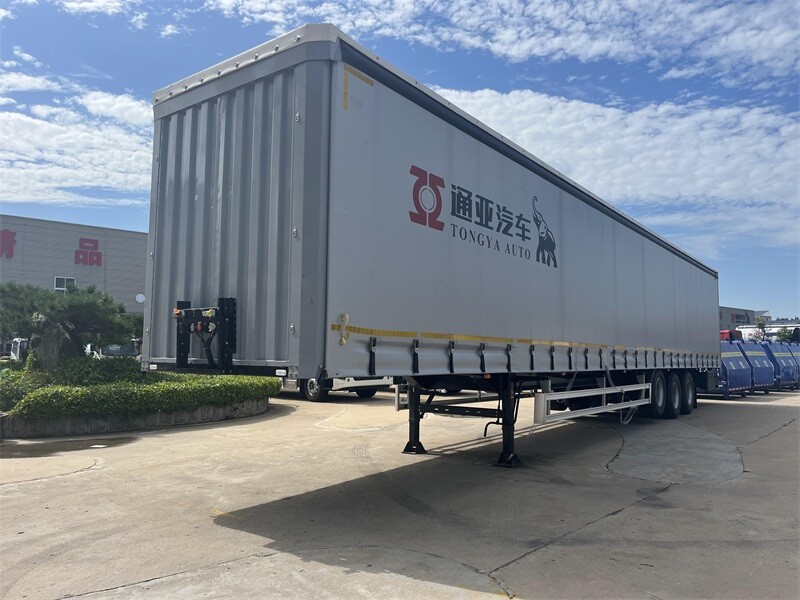

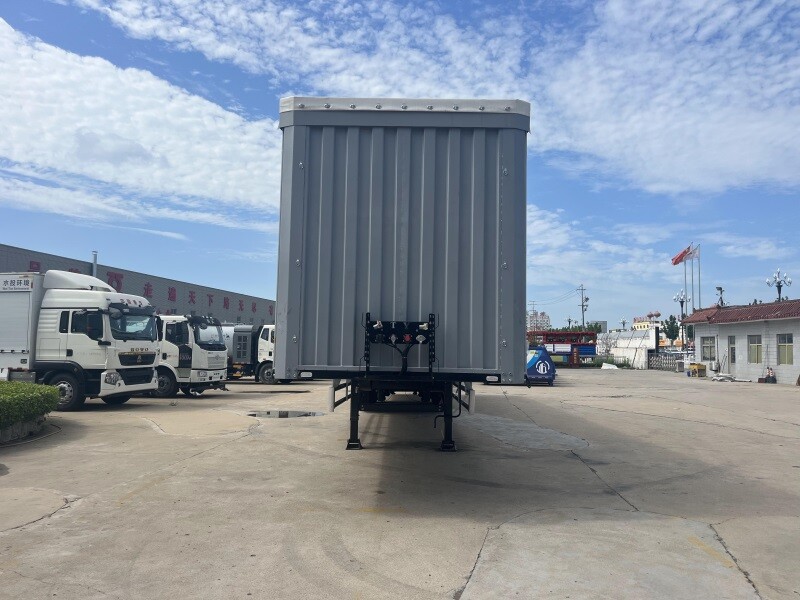

Curtain Semi Trailer

PRODUCT DESCRIPTION
ProductCurtain semi trailer
Tare WeightAbout 7000KG
Dimension outside dimensionLength: 16900mmDimension
inside dimension
Length: 16660mm
Width: 2550 mmWidth: 2480mm
Height: 4000mmHeight:2690mm
Upper structure AssemblyCurtainTop density900g±50g/㎡
Side density≥680g/㎡
The tension locking mechanism at the bottom is made of stainless steel
floor boardMaterialPlywood
Thickness30mm
FrameColumnThere are 4 columns on each side (8 columns in the whole trailer)
BaffleThere are 4 removable aluminum Baffles between the columns (20 on each side)
Front bezelAluminum alloy structural section
Back doorTwo aluminum doors with 4 hidden mechanisms (2 mechanisms per door), as well as locking devices installed outside under the floor to secure the doors in the open position.
Side loading height2600mm
Running mechanismAxleBrandSAF
Type3 axles (first axle lift)
Number3
tonnage10T
RimType11.75*22.5
TyreBrandTriangle brand
Type385/65R22.5
Number7pcs (Including 1 spare tire)
SuspensionAir suspension, the whole trailer can be lifted
AccessoriesKing pinBrandJOST brand
Diameter2.0 inch
Landing gearSAF brand
Spare tire carrier1 set
Brake systemBrake chamber4 double brake chamber and 2 single chamber
EBSWABCO  4S/2M
Electrical systems and lightinglampsLED
Voltage24V
Receptacle7 ways (7 wire harness) and quick change type and 15 ways (15 wire harness)
Uses and AdvantagesAs a kind of van, the side curtain trailer has all the characteristics of an ordinary van: the envelope is completely closed, which can prevent rain and dust, and can achieve all-weather protection for goods; The volume of the envelope is completely determined, which can effectively prevent overloading and overrun. Because the side curtain trailer is closed by the curtain on both sides, it has some outstanding advantages again: because the side curtain weight is significantly lighter than the hard side panel, thus the whole semi trailer is lighter than the van; The side curtain is flat and suitable for printing various patterns, so the appearance is significantly more beautiful than that of the van; The curtain can be pulled open quickly, and the forklift can be loaded and unloaded on the side of trailer, so the loading and unloading efficiency is very high.


FAQ

Q1、Why choose Tongya Automobile Co.,Ltd ?

1,China leading manufacturer of semi trailer and tanker trailer since 1982,China famous brand, Annual output of 10,000 units different kinds of semi trailers

2,More than 19 years export experience since 2005, Fully understand different local specs and standard from more than 50 different countries

3, Customized product is available, with modern and advance production line with all kinds of production equipment and production process

4, Professional technical team with 24 fully experienced engineers


Q2、What can you buy from Tongya Automobile Co.,Ltd?
Bulk Cement Tanker Semi trailer , Fuel Tanker Semi Trailer, Flatbed Semi Trailer, Skeleton Semi Trailer, Lowbed Semi Trailer, Dump Trailer,dolly trailer ,Fence Semi-trailer,Side Wall Semi-trailer, full trailer, Flour tanker trailer, ISO bulk tanker container etc.



Q3、Can I visit your factory?
Of course,welcome to visit our factory.we are located in Liangshan, Shandong Province, a face-to-face conversation can serve you better.



Q4、How about your delivery time?
10-30 days after receive the deposit, depend on the order quantity.



Q5、What payment terms do you use?
 T/T and L/C payment are acceptable.



Q6、Which incoterms 2010 terms can we work?

Normally we accept FOB, CFR, CIF.



Q7、Is it available to print our own brand on the vehicle?
Yes, we accept to do OEM for well known distributors and dealers.



Q8、What information should I let you know if I want to get a quotation?
First, please let us know which kind of trailers you want
Second, Please let us know what kind of cargo that you will load with our trailers? Loading capacity? road condition?
Third, what trailer size is OK for you, and do you want customized product
Four, your truck specs, like 2.0 or 3.5 inch fifth wheel ? fifth wheel height? 6*4 or 4*2 truck will use ?
Five, order quantity, destination port
The more information you will provide, the more accurate and competitive price we can offer.
